Shanghai HUAYANG HCC-17 Ultrasonic Thickness Gauge is suitable for wall thickness measurement of large plates, pipes, boilers and hulls

HCC-17 Ultrasonic Thickness Gauge is suitable for wall thickness measurement of large plates, pipes, boilers and hulls, etc. It is also a pipe Thickness Gauge. In addition, the same type of explosion-proof type can be selected according to the environmental requirements of the working condition HCC-17.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

HuaYang HCC-17 Ultrasonic Thickness GaugeSPEC

HuaYang HCC-17 Ultrasonic Thickness GaugeDetails

HuaYang HCC-17 Ultrasonic Thickness GaugePacking list

SKU
NB000685
Measurement range
1.5~200mm

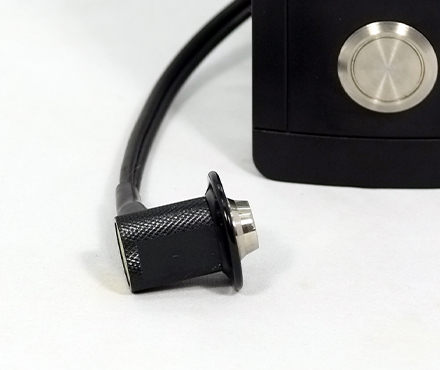

Probe style
Split probe
Probe diameter
Φ7mm
Measurement error
±(0.5%H+0.1)mm
Display resolution
0.1mm
unit system
mm/inch
Speed of sound
1000~9999m/s
Standards
GB/T 11344-2008、JJF 1126-2004
Display
LCD screen
Operating language
Chinese
Application Software
without
Power Supply
1 * 6F22 battery
power consumption
Approx. 50mw
Operating Time
100h
Host size
120*60*26mm
Weight
400g
Application
Wall thickness measurement of large plates, pipes, boilers and hulls
HCC-17
Ultrasonic Thickness Gauge

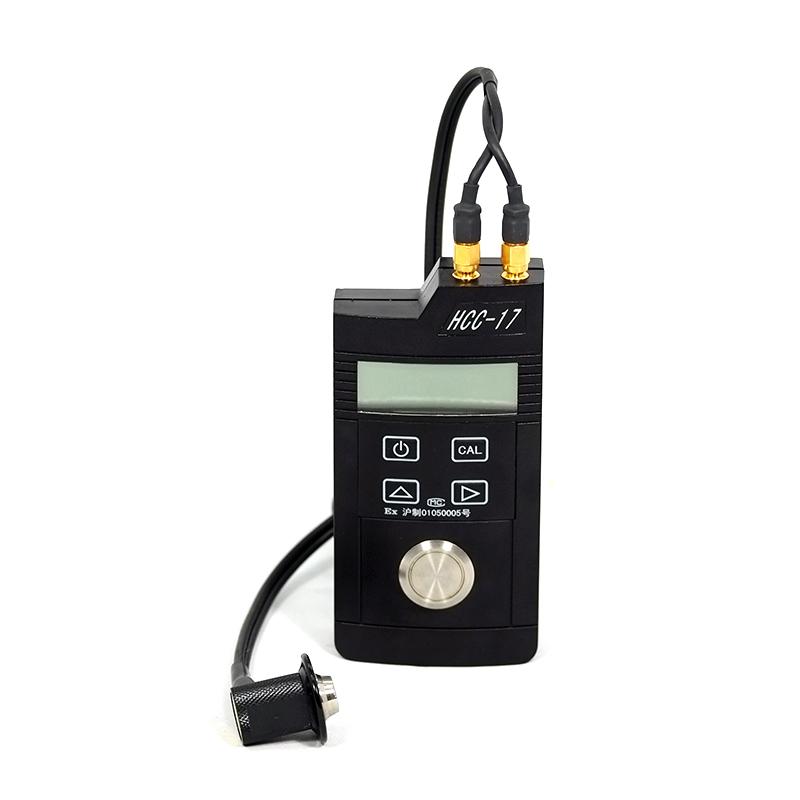

Shanghai HUAYANG HCC-17 Ultrasonic Thickness Gauge is suitable for wall thickness measurement of large plates, pipes, boilers and hulls Picture

Description

Shanghai HuayangThe HCC-17 Ultrasonic Thickness Gauge is a black enclosure in appearance, which is powered by a lithium battery, and is small and easy to carry for outdoor testing.

Shanghai HuayangHCC-17 Ultrasonic Thickness GaugeIt is an intelligent pulse-reflection ultrasonic Thickness Gauge with a built-in monolithic microcomputer, which has the dual functions of measuring thickness and sound velocity. There are only four buttons on the ultrasonic Thickness Gauge panel to complete all the settings and controls, easy to operate, pocket-sized design, unique style, very easy to carry, hand-held wrist buckles, suitable for high-altitude work. The HCC-17 ultrasonic Thickness Gauge is a single-sided measurement that can be used in a wide range of applications, especially for wall thickness measurements of large plates, pipes, boilers, and ship hulls. In addition, according to the environmental requirements of the Operating Conditions, the explosion-proof type of the same model can be selected.

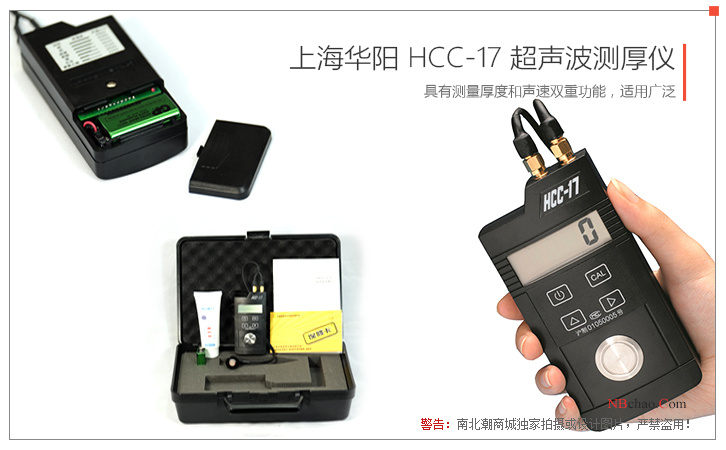

Live shot

Shanghai Huayang HCC-17 ultrasonic Thickness Gauge real shot

Meets standards

GB/T 11344-2008 Nondestructive testing -- Contact ultrasonic pulse-echo thickness measurement method

JJF 1126-2004 Specification for Calibration of Ultrasonic Measuring Instruments

Certificate of Authorization for Sales

Shanghai Huayang Authorization Certificate


FAQ
QHow thick can this HCC-17 Ultrasonic Thickness Gauge be measured?
A HCC-17 Ultrasonic Thickness Gauge can measure the minimum thickness of 1.5mm
QWhat is the difference between an explosion-proof Ultrasonic Thickness Gauge and an ordinary Ultrasonic Thickness Gauge?
A Hello, the explosion-proof thickness gauges have been treated with explosion-proof protection, including the components and batteries as well as the overall shell. The working environment of the test occasion is complicated, with flammable gas leakage or explosive and flammable materials, so when working, no sparks can appear, for fear of causing a chain of explosive reactions.
QHCC-17 Ultrasonic Thickness Gauge, can I measure frp Film thickness?
A Hello, frp is essentially fiber-reinforced plastic. The main material is still Resin. In principle, it can be measured. Which type of frp do you mean?
