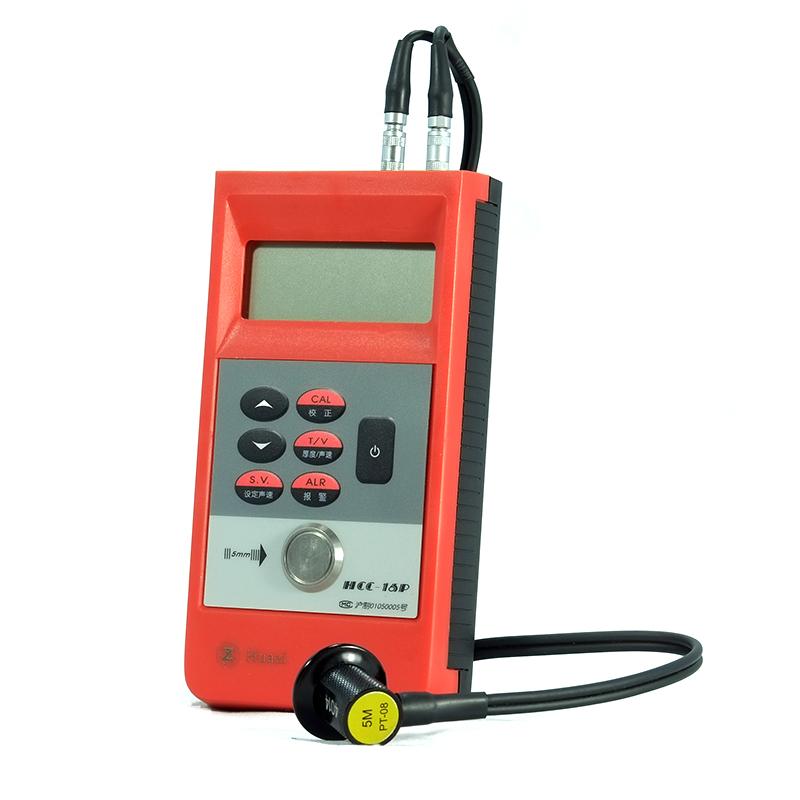

Shanghai HUAYANG HCC-16P Precision Ultrasonic Anti-corrosion Thickness Gauge, suitable for metals, ceramics, plastics, Glass, etc

The HCC-16P Ultrasonic Thickness Gauge is suitable for most materials that can transmit ultrasonic waves, such as metals, ceramics, plastics, Glass, etc. The HUAYANG HCC-16P Ultrasonic Thickness Gauge has various functions such as automatic zero calibration, mathematical statistics and over-limit alarm.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

HuaYang HCC-16P Ultrasonic Thickness GaugeSPEC

HuaYang HCC-16P Ultrasonic Thickness GaugeDetails

HuaYang HCC-16P Ultrasonic Thickness GaugePacking list

SKU
NB000687
Measurement range
1.2~250mm
Probe style
Split probe
Probe diameter
Φ5mm
Measurement error
±(0.5%H+0.1)mm
Display resolution
0.1mm
unit system
mm/inch
Calibration method
Automatic zero calibrating
Speed of sound
1000~8000m/s
Standards
GB/T 11344-2008、JJF 1126-2004
Display
4-Bit LCD display
Operating language
Chinese
Application Software
without
Environmental temperature
0~40℃
Power Supply
6F22 Battery 1 *
Host size
150*80*30mm
Application
In petrochemical industry, shipbuilding industry, automobile manufacturing industry, power station, machine manufacturing industry, thickness measurement and corrosion measurement of boilers, oil storage tanks, hulls, decks, tracks, machined parts, etc.; for the measured parts with rough surface corrosion, it also has strong detection ability.
Zero correction test block
5 +/- 0.02mm, 45 #steel
shutdown mode
About 2min
HCC-16P
Ultrasonic Thickness Gauge
Shanghai HUAYANG HCC-16P Precision Ultrasonic Anti-corrosion Thickness Gauge, suitable for metals, ceramics, plastics, Glass, etc Picture

Introduction

Shanghai HuayangHCC-16P precision ultrasonic anti-corrosion layer Thickness GaugeIt is a kind of ultrasonic Thickness Gauge with red shell and external ultrasonic probe, and the simple structural design can achieve powerful thickness measurement function, with automatic calibration, mathematical statistics, overrun alarm and other functions.

HCC-16P Precision Ultrasonic Anticorrosive Layer Thickness Gauge is an intelligent Thickness Gauge with a monolithic microcomputer, which has a variety of functions such as automatic zero calibration, mathematical statistics and overrun alarm, etc., without complex adjustments, and can be accurately measured. Precision ultrasonic Thickness Gauge is the use of ultrasonic pulse reflection principle for thickness or sound velocity measurement, specially designed for the application of thickness inspection of the upper and lower limit alarm function to bring greater convenience to users, simple operation.

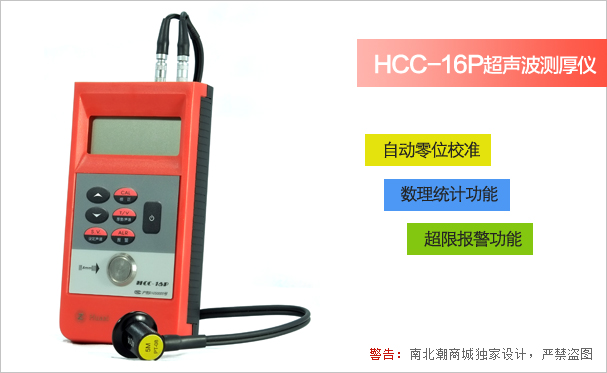

   Appearance of Shanghai Huayang HCC-16P precision ultrasonic anti-corrosion layer Thickness Gauge

Applications

HCC-16P precision ultrasonic anti-corrosion layer Thickness Gauge as ultrasonic Thickness Gauge,It is suitable for most materials that can transmit ultrasonic waves, such as: metals, ceramics, plastics, glass, etc. This instrument is suitable for thickness measurement and corrosion measurement of boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, rails, machined parts, etc. in petrochemical industry, shipbuilding industry, automobile manufacturing industry, power station and machine manufacturing industry.

HCC-16P precision ultrasonic anti-corrosion layer Thickness GaugeIt can also measure the surface corrosion and roughness of the test specimen, and also has strong detection ability.

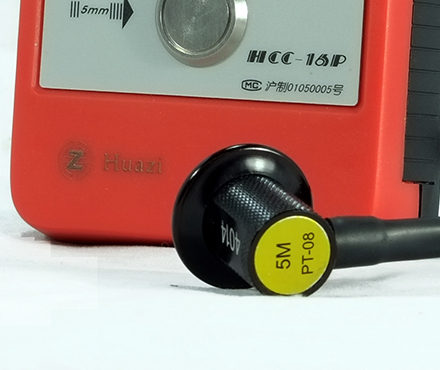

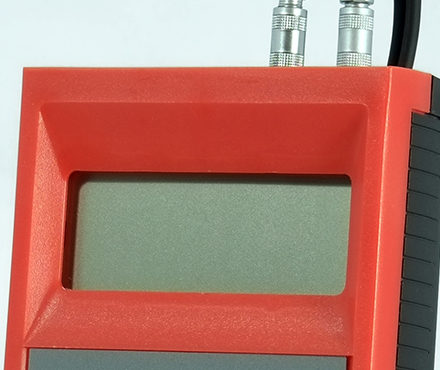

Live shot

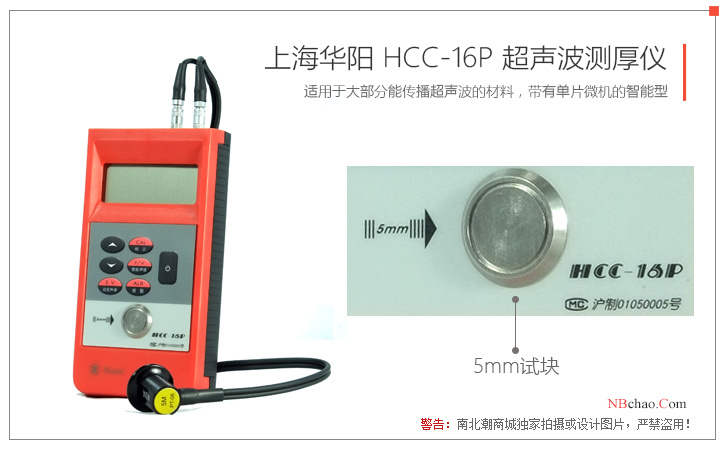

Shanghai Huayang HCC-16P precision ultrasonic anti-corrosion layer Thickness Gauge 5mm test block diagram

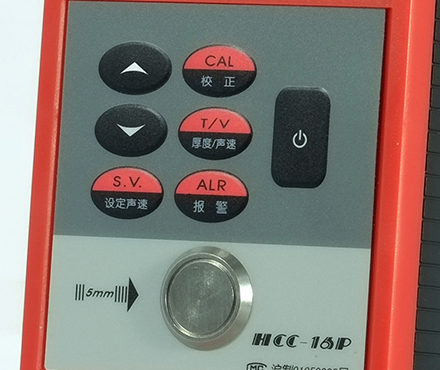

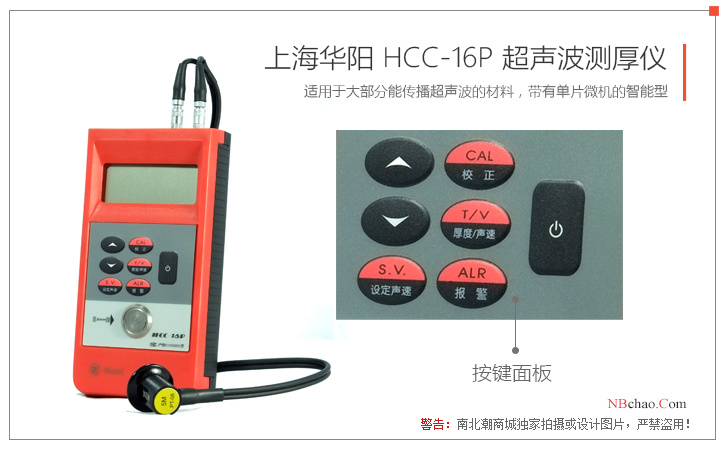

Detail drawing of the button panel of Shanghai Huayang HCC-16P precision ultrasonic anti-corrosion layer Thickness Gauge

Application

HCC-16P precision ultrasonic Thickness GaugeIt is suitable for thickness measurement and corrosion measurement of boilers, oil storage tanks, hulls, decks, tracks, machined parts, etc. in petrochemical industry, shipbuilding industry, automobile manufacturing industry, power station and machine manufacturing industry.

Meets standards

GB/T 11344-2008 Nondestructive testing -- Contact ultrasonic pulse-echo thickness measurement method

JJF 1126-2004 Specification for Calibration of Ultrasonic Measuring Instruments

Certificate of Authorization for Sales

Shanghai Huayang Authorization Certificate

FAQ
QHow thick can this HCC-16P Ultrasonic Thickness Gauge detect?
A HCC-16P Ultrasonic Thickness Gauge measurement 1.2mm
QMay I ask why my HCC-16P thickness gauge measurement error is a bit large, how to solve?
A Hello, you can check first: a) Whether the sound speed setting is correct. b) Press 5.1 2) to calibrate. c) There may be pinholes, pores and other defects inside the tested material. If there is no problem, you need to return to the factory for repair.
QCan this HCC-16P test rough surfaces?
A Hello, HCC-16P also has strong detection for tested parts with rough surface corrosion. Ability.
QWhat is the measurement range and resolution of HCC-16P Ultrasonic Thickness Gauge?
A Hello! The measurement range is 1.2-250mm, and the resolution is 0.1mm. Thank you for your consultation!
