YUSHINDT UM-1D Coating Thickness Gauge

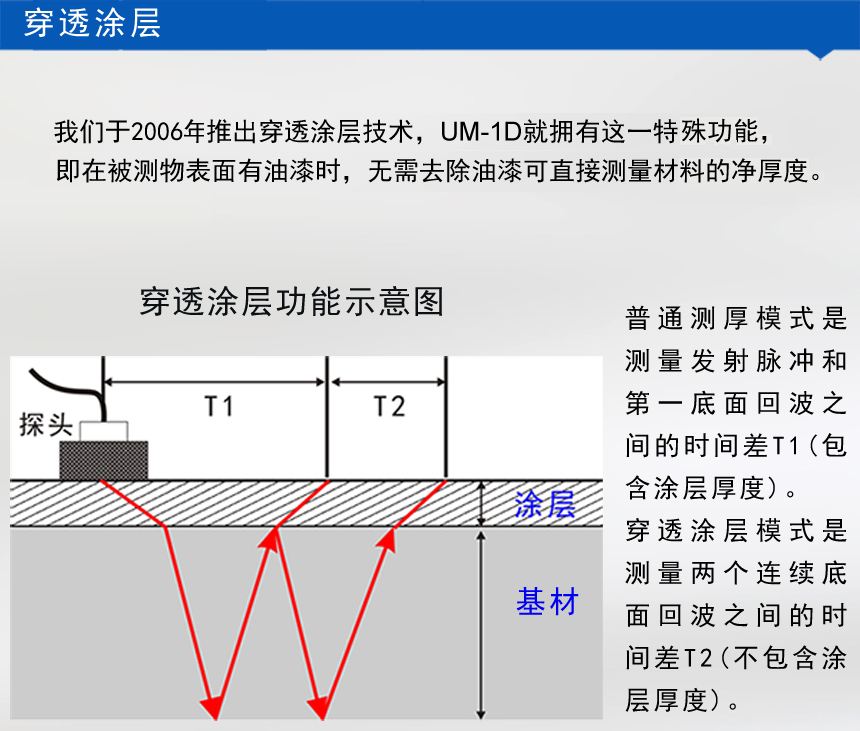

UM-1D Penetration Coating Thickness Gauge can store 500 thickness values, high/low limit alarm, MIN Minimum capture, two point calibrated, Chinese/English interface. Has echo-echo Measurement mode for substrate net thickness measurement without removing paints.
Model：
Contact
Details SPEC CAT OI

yushindt UM-1D Ultrasonic Thickness GaugeSPEC

yushindt UM-1D Ultrasonic Thickness GaugeDetails

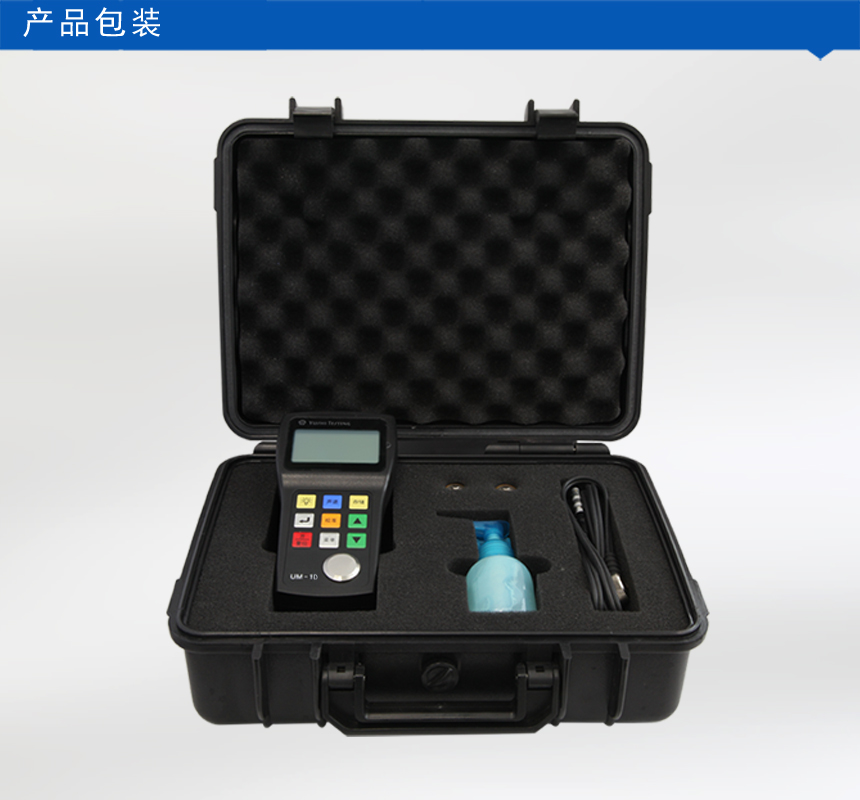

yushindt UM-1D Ultrasonic Thickness GaugePacking list

SKU
NB007184
Measurement range
Coating mode: 3~ 20mm (using standard probe); < br > Standard mode: 0.8~ 300mm (depending on the probe and the material being tested)

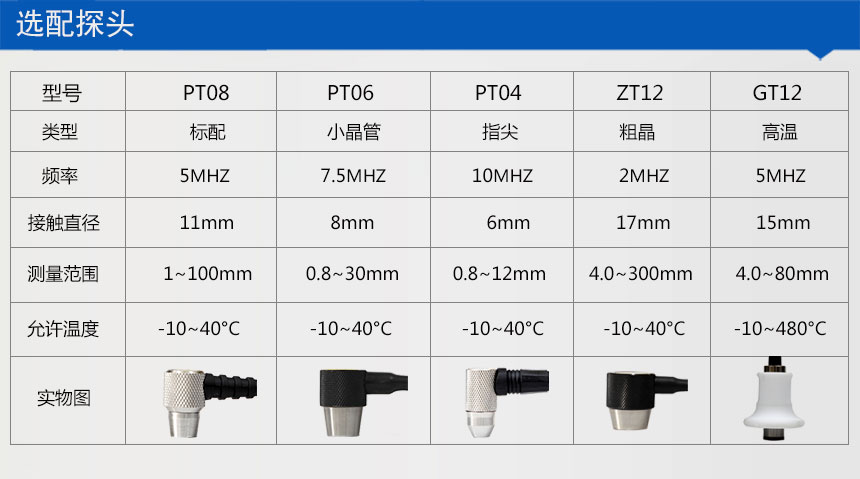

Probe style
Split probe
Speed of sound
1000~9999m/s
Display resolution
0.1mm
Probe contact temperature
-10~50℃
Data storage
Divide 5 arrays to store 500 thickness values
Repeatability
0.1mm
Operating language
You can choose Chinese or English.
Display
128 × 64 dot matrix LCD display (EL backlight)
Application Software

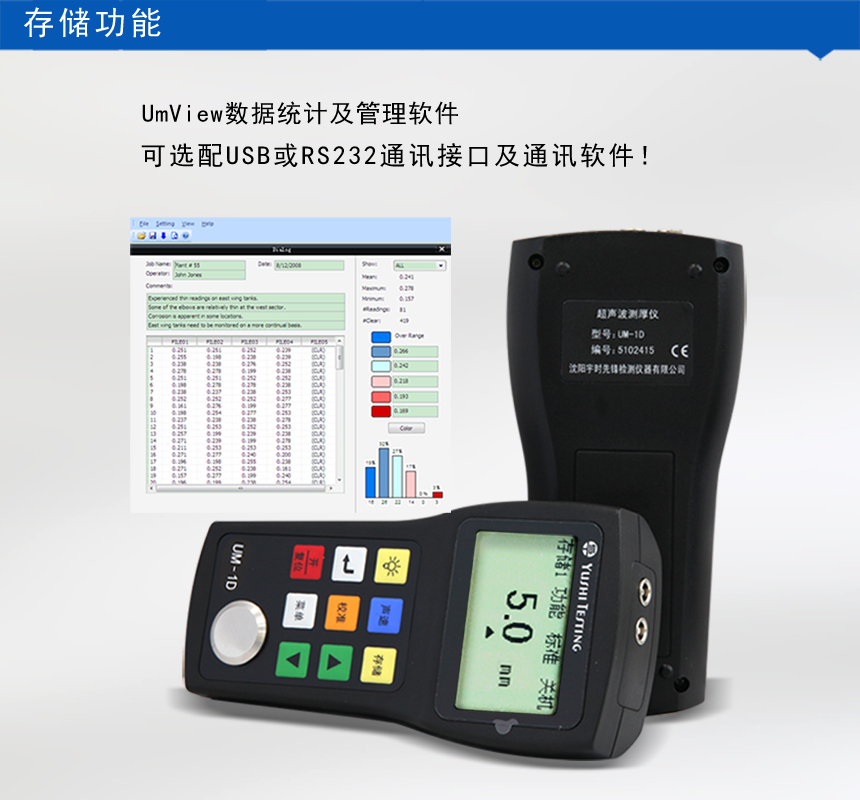

UmView software for transferring, storing, analyzing and editing documents of measurement data (optional)
Host size
14*7*3mm
Weight
210G (including battery)
Power Supply
Link 1.5V AA battery, when the power is insufficient, there is a low Voltage prompt.
Calibration method

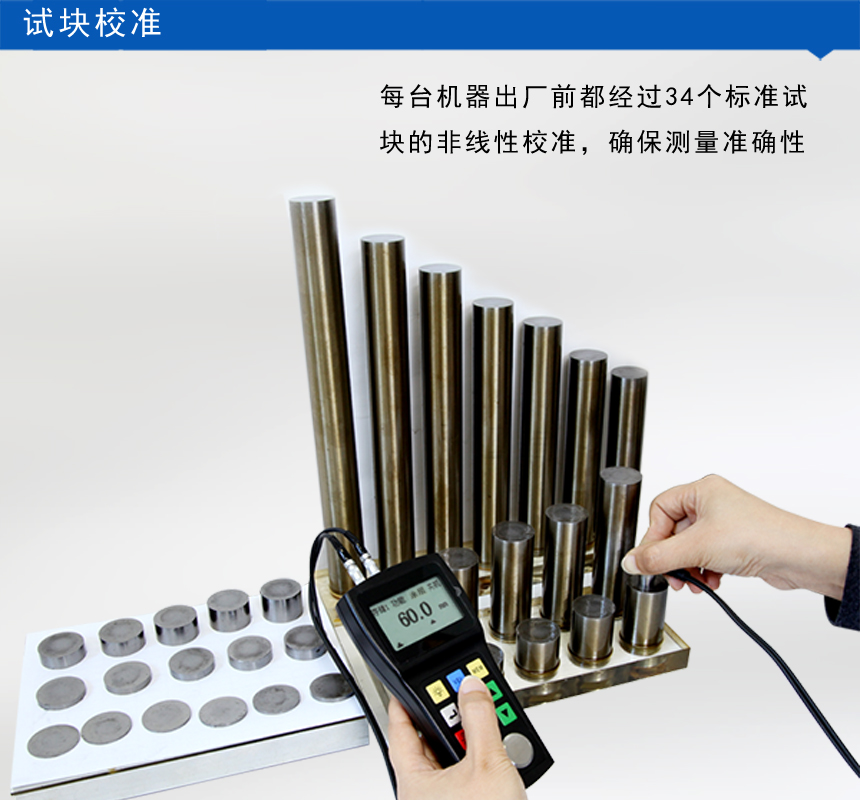

Zero point calibrated, two point calibrated
Measurement update rate:
4Hz
V-path correction
Automatic V path correction to compensate for non-linearity of dual crystal probe
V-path correction
Automatic V path correction to compensate for non-linearity of dual crystal probe
Interface
USB interface or RS232 serial port (optional)

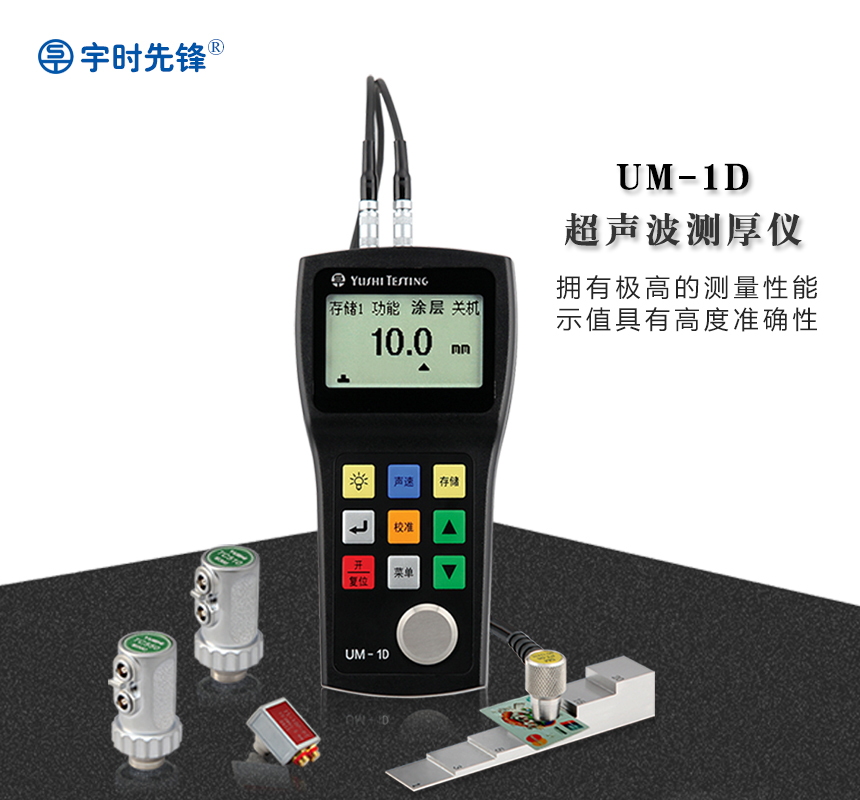

UM-1D
Ultrasonic Thickness Gauge

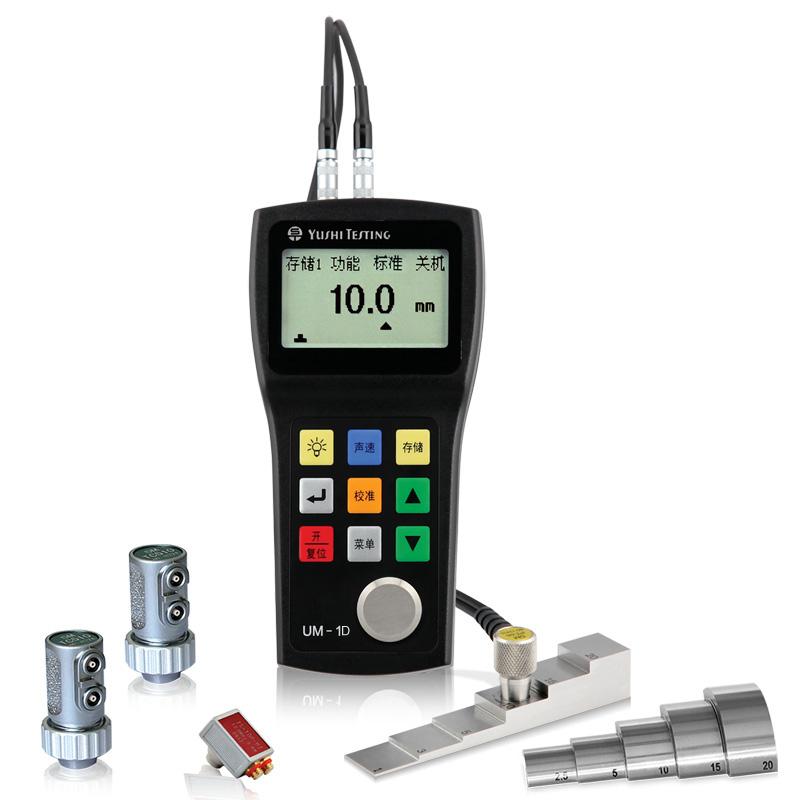

YUSHINDT UM-1D Coating Thickness Gauge Picture

UM-1D Penetration Coating Thickness Gauge 0.1mm Resolution, 128×64 Dot Matrix Graphic LCD Screen, Can Store 500 Thickness Values, High/Low Limit Alarm, Minimum Value Capture, Two Point Calibration, V Path Correction, mm/Inch, EL Backlight, Chinese/English Interface. Boasts an echo-echo measurement mode for net thickness measurement of substrates without removing paint layers.

Applications:

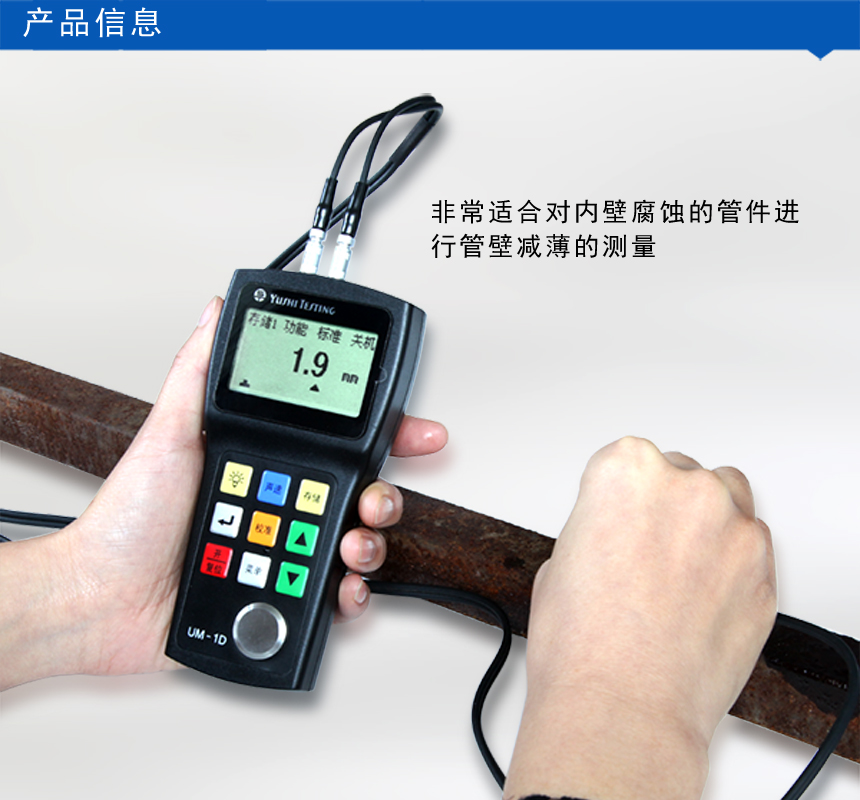

It can measure the thickness of metal, high-temperature pipes, pipes, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other materials. It can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection industry and other testing fields, and can also monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use, and is a special instrument required for material protection.
