YUSHINDT UM-2D Ultrasonic Thickness Gauge coating type
UM-2D Ultrasonic Thickness Gauge includes all the features of UM-2 with the addition of Echo-Echo Measurement mode for penetrating coating measurement of substrate thickness.
Model：
UM-2D
yushindt
yushindt UM-2D Ultrasonic Thickness GaugeSPEC
yushindt UM-2D Ultrasonic Thickness GaugeDetails

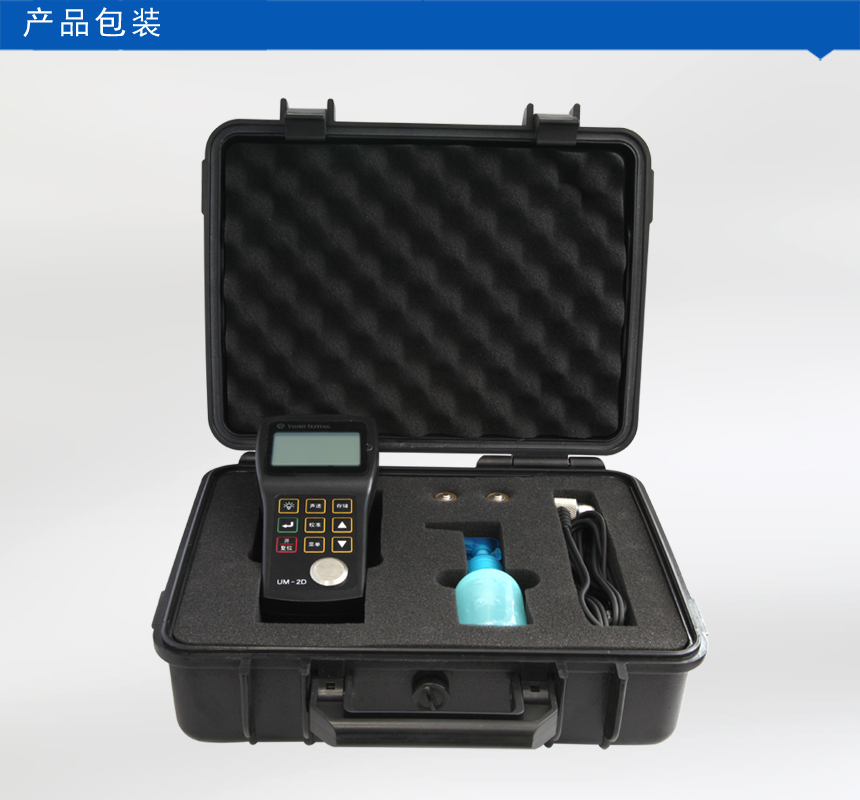

yushindt UM-2D Ultrasonic Thickness GaugePacking list
- SKU
- NB007186
- Measurement range
- 0.8~ 300mm (depending on the probe and the material being tested), coating mode: 3~ 20mm (using standard probe)

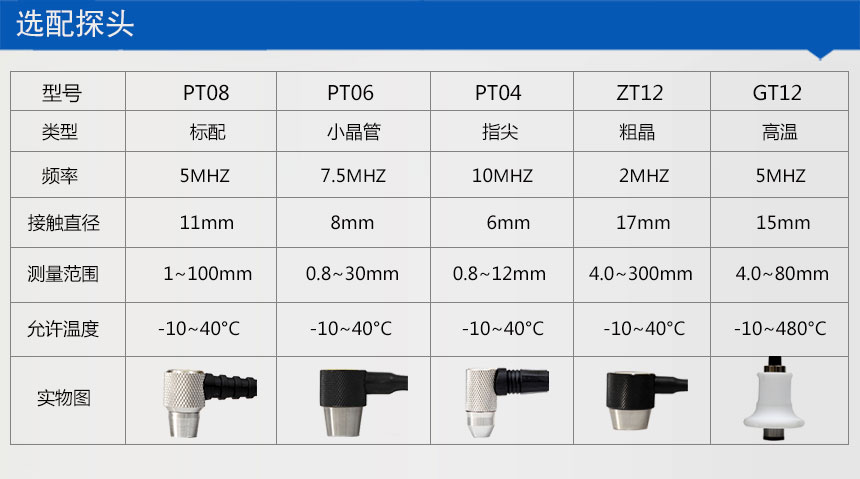

- Probe Frequency
- 4MHz
- Probe style
- Split probe
- measurement error
- ±0.05mm(≤10mm)；(±0.5%H+0.01)mm(>10mm)
- Display resolution
- Millimeter-0.01, 0.1 inch-0.001, 0.01
- unit system
- mm/inch

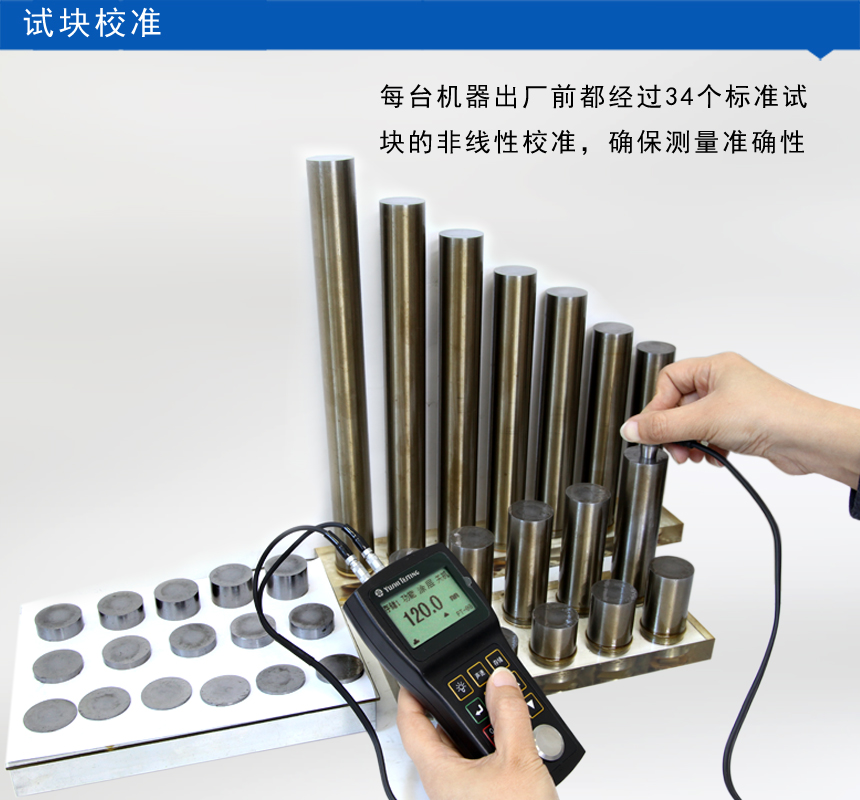

- Calibration method
- One point calibrated, two point calibrated
- Repeatability
- ±0.05mm
- Storage Capacity
- 500 Measured values, 5 groups
- Speed of sound
- 1000~9999m/s
- Speed of sound storage
- Can store 5 different materials Speed of sound
- Display
- 128 × 64 dot matrix LCD with EL backlight, adjustable contrast ratio
- Operating language
- Chinese or English
- Interface
- USB interface or RS232 serial port (optional)
- Application Software

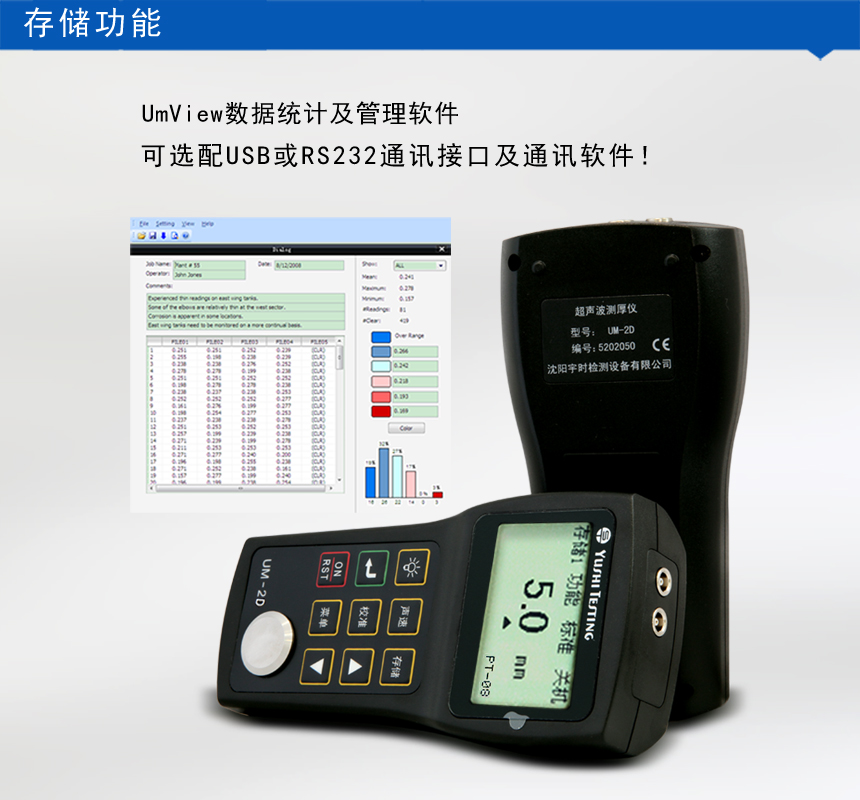

- UmView software for transferring, storing, analyzing and editing documents of measurement data (optional)
- Environmental temperature
- -10~50℃
- Power Supply
- 2 * 5 battery
- Operating Time
- 200h
- Host size
- 149*73*32mm
- Weight
- 200G (including battery)

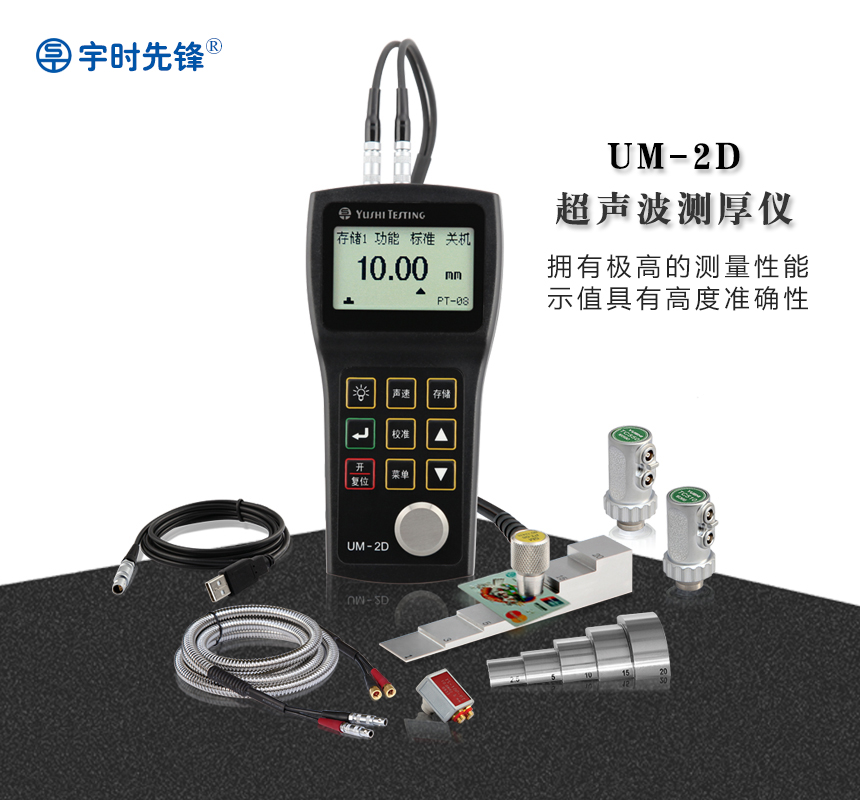

UM-2D
Ultrasonic Thickness Gauge

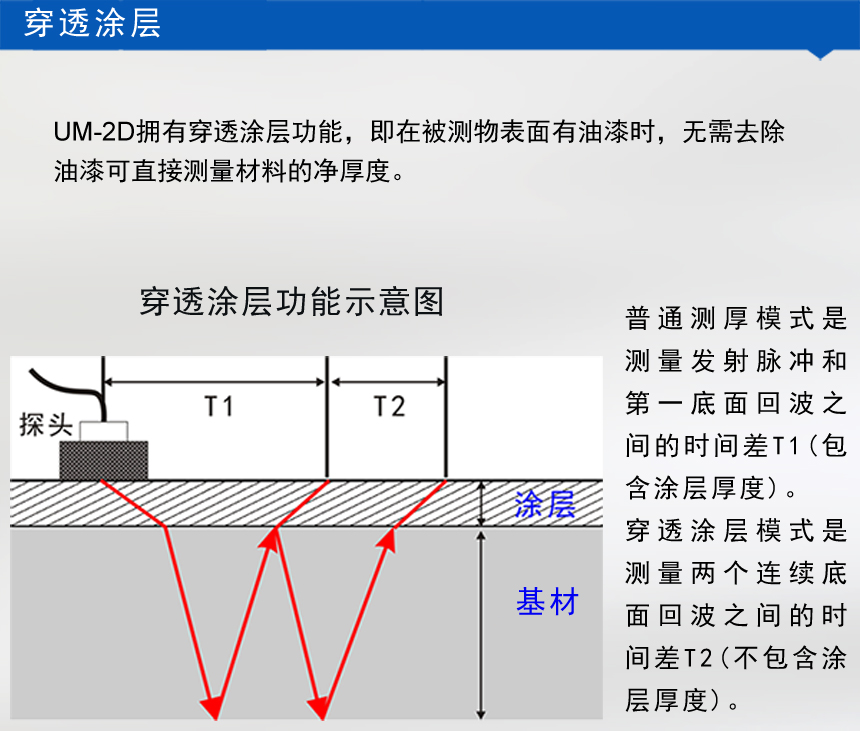

UM-2D High Temperature Thickness GaugeContains all the features of the UM-2 with the addition of an echo-echo measurement mode for penetrating the coating to measure substrate thickness.

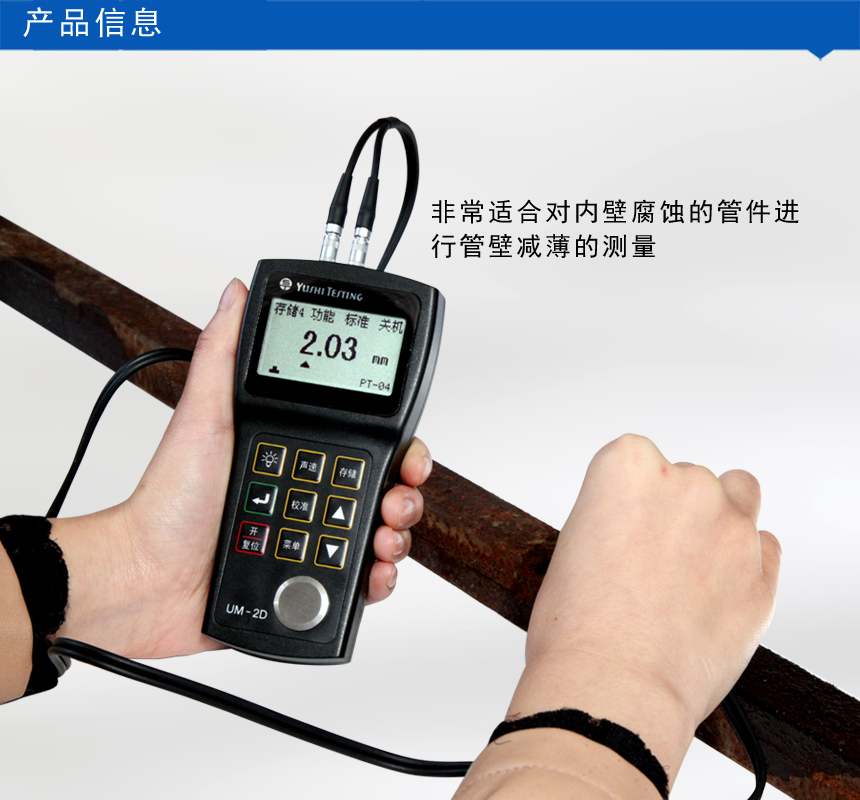

Applications: It can measure the thickness of metal materials, high-temperature pipes, pipes, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other materials. It can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection industry and other testing fields, and can also monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use, and is a special instrument required for material protection.
FAQ
QHow thick can UM-2D Ultrasonic Thickness Gauge be measured?
A
UM-2D Ultrasonic Thickness Gauge can measure the minimum thickness of 0.8mm.
