YOKE UV752N UV-Visible Spectrophotometer Wavelength 195~ 1020Nm Light spectrum bandwidth 4nm

SE
Can be used for measurement of sample Absorbance and transmittance, Light spectrum bandwidth 4nm, Wavelength Accuracy +/- 2nm, can accommodate 5-100mm Colorimetric dish, automatic light gate.
Model：
Certificate
Contact
Details SPEC OI
Similar products

Yoke UV752N Spectrophotometer SPEC

Yoke UV752N Spectrophotometer Details

Yoke UV752N Spectrophotometer Packing list

SKU
NB007213
Optical inspection system
Eliminate color difference Czerny-Turner (1200L/mm grating)
Light spectrum bandwidth
4nm
Wavelength range
195~1020nm
Wavelength Accuracy
±2nm
Wavelength, repeability
1nm
Photometric range
0~200%T、-0.301~2.000A
Photometric Accuracy
0.5%T
Luminosity, sexual repeability
0.2%T
stray light
≤0.3%T@360nm
Noise level
100%≤0.2%T
stability
±0.002A/h@500nm
Baseline flatness
±0.002A/h @500nm
Operating Mode
T、A、C
printout
Thermal printer (parallel port) optional
display
4-Bit LCD LED display
light source
Tungsten lamp, deuterium lamp
Dimensions
Length 50cm, width 33cm, height about 30
Weight
12kg
drift
≤0.1%T
UV752N
Spectrophotometer
Can be used for measurement of sample Absorbance and transmittance, Light spectrum bandwidth 4nm, Wavelength Accuracy +/- 2nm, can accommodate 5-100mm Colorimetric dish, automatic light gate.

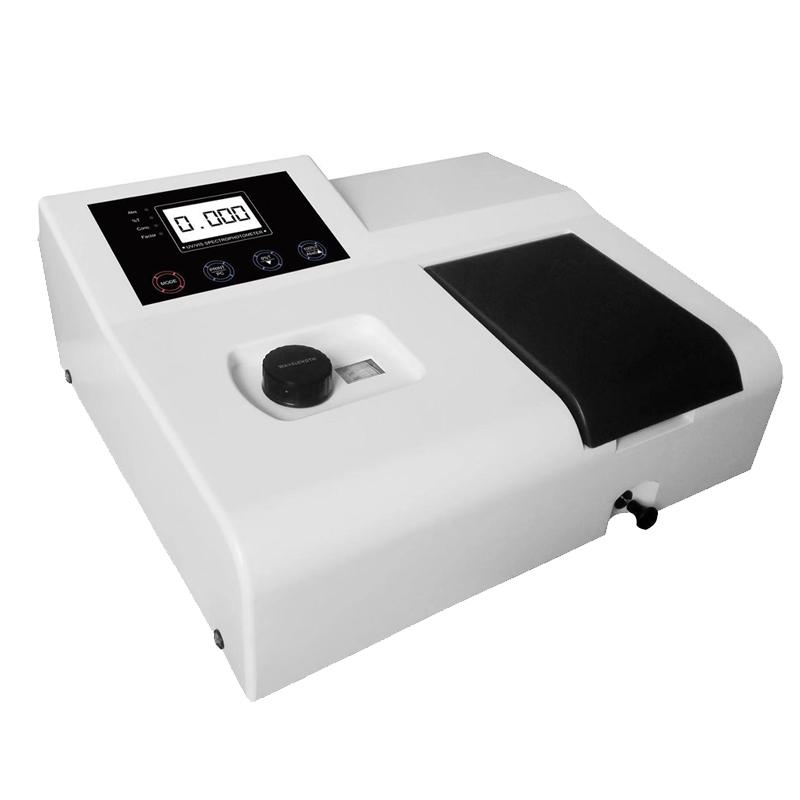

YOKE UV752N UV-Visible Spectrophotometer Wavelength 195~ 1020Nm Light spectrum bandwidth 4nm Picture

Introduction

Yoke UV752N UV-Vis Spectrophotometer can be widely used in medical and health, clinical testing, biochemistry, petrochemical, environmental protection, quality control, judicial criminal investigation, inspection and quarantine forestry, geological exploration, food testing and other industries. It is commonly used in physical and chemical laboratories. One of the analytical instruments.

Features

1. The large sample chamber can accommodate 5-100mm cuvettes.

2. It can be directly connected to a dedicated printer (optional) to print data.

3. The key components are all imported with original packaging to ensure the accuracy and precision of the measurement.

4. Digital display of measured values.

5. The instrument adopts advanced microcomputer processing technology and is easy to operate.

6. The automatic light gate ensures the service life of the photoelectric sensor and makes the instrument test easier.

Key Function

Key Name Key Function Description

【MODE】A/T/C/F mode switching key

【PC】Print/online send data key

【↑/0%】Input data in C/F mode to increase/adjust 0% T key

【↓/100%】Input data in C/F mode to decrease/adjust transmittance to 100%T or absorbance to 0.000ABS key

Key function description

A: Measure the absorbance of the sample

T: Transmittance of the measured sample

C: Enter the F value to measure the concentration, or use the standard solution to calculate the F value

F: Enter the F value to measure the concentration

Series


721 (721-100)722 (N/S)752N (N/PC)
Wavelength range350nm~1020nm320nm~1020nm195nm~1020nm
Wavelength Accuracy±2nm±2nm±2nm
wavelength repeatability≤1nm≤1nm≤1nm
Spectral bandwidth6nm5nm4nm
stray light≤0.3%T(at 360nm)≤0.3%T(at 360nm)≤0.3%T (at 220, 360nm)
Transmittance measuring range0.0%T~199.9%T0.0%T~199.9%T0.0%T~199.9%T
Absorbance measurement range0.000A~1.999A0.000A~1.999A0.000A~1.999A
Transmittance Accuracy±1.0%T±0.5%T±0.5%T
Transmittance repeatability±0.5%T±0.2%T±0.2%T
stability≤0.5%T/3min≤0.5%T/3min≤0.5%T/3min
noise0.3%T0.3%T0.3%T
bright current≤0.5%T/3min≤0.5%T/3min≤0.5%T/3min
receiving elementphotocellphotocellphotocell



FAQ
QIs this spectrophotometer JB/T6778 compliant?
A This spectrophotometer is suitable for JB/T6778. Please consult customer service for detailed application definition.
