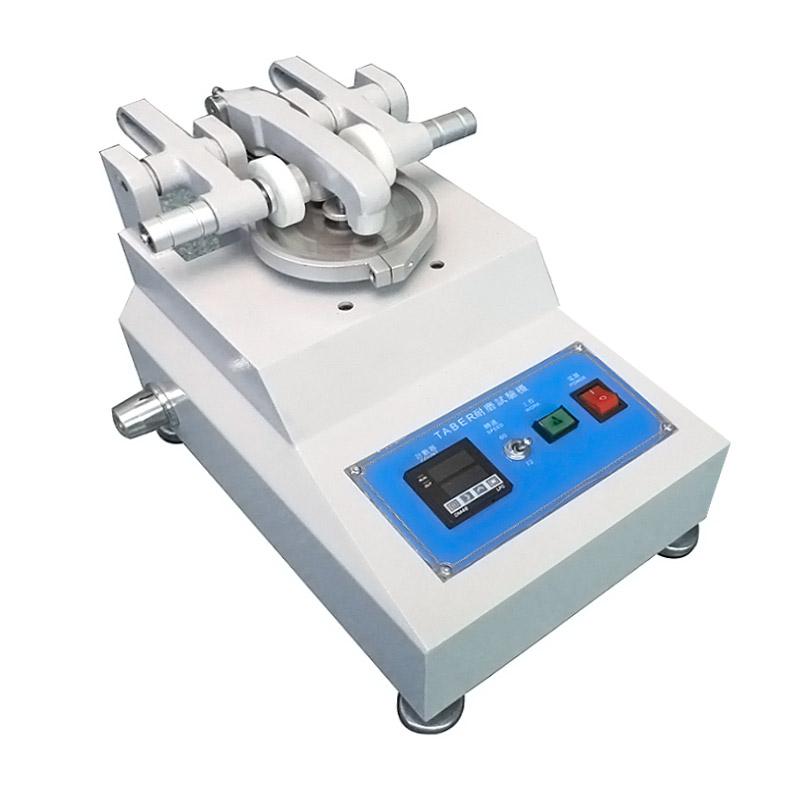

Huida HD-2036 Wear Tester Load 250/500/1000g
SEHuida Wear Tester HD-2036 is a wear resistance performance abrasion Measurement Instrument for testing cloth, paper, leather, Glass, etc. The size of the test piece of HD-2036 is 108mm outer diameter and 8mm inner diameter, providing three different loads.
$1470.00/set
PromotionLoading...
Coupon
Model：
HD-2036
Similar products
Huida HD-2036 Wear testing machineSPEC
Huida HD-2036 Wear testing machineDetails
Huida HD-2036 Wear testing machinePacking list
- SKU
- NB007586
- Friction method
- Swirl/spin
- Frictional contact form
- face
- Number of grinding heads
- 1
- Plate speed
- 60/72rpm
- Grinding wheel size
- ψ2〞(max:45mm). 1/2〞(W)
- Counting method
- LCD，0~999900
- Power
- 1∮,AC220V,10A
- Total Weight
- 18kg
- Specimen size
- Outer diameter 108mm; Inner diameter 8mm; (D) 3mm
- Grinding wheel center spacing
- 63.5mm
- Center distance between grinding wheel and test disc
- 37~38mm
- Load
- 250、500、1000g
- Machine size
- 53 * 32 * 31Cm + vacuum cleaner
- Distance between test piece and vacuum port
- 3mm
- Accessories
- 1 pair of imported grinding wheels, 50 stickers, 20 sandpapers
HD-2036
Wear testing machine
Introduction

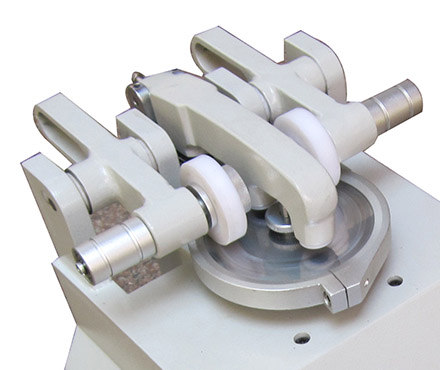

Huida Abrasion Tester HD-2036 is suitable for cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastics, etc. The test method is that a rotating sample is placed against a pair of grinding wheels, and a specified load is applied. When the sample rotates, the grinding wheel is driven to wear the sample. Abrasion loss weight is the weight difference of the sample before and after the test.
application standard
Abrasion testing machine HD-2036 complies with DIN-53754, DIN- 53799, DIN - 53109 , DIN -52347, TAPPI-T476, ASTM-D1044, ASTM- D3884, ISO-5470 and other international standards.
plan
FAQ
QIs this okay for the wear resistance tester for testing leather pu?
A
OK
QDo you have the Wear testing machine required by the ISO7784-3 standard?
A
This HD-2036 Wear testing machine will do.
