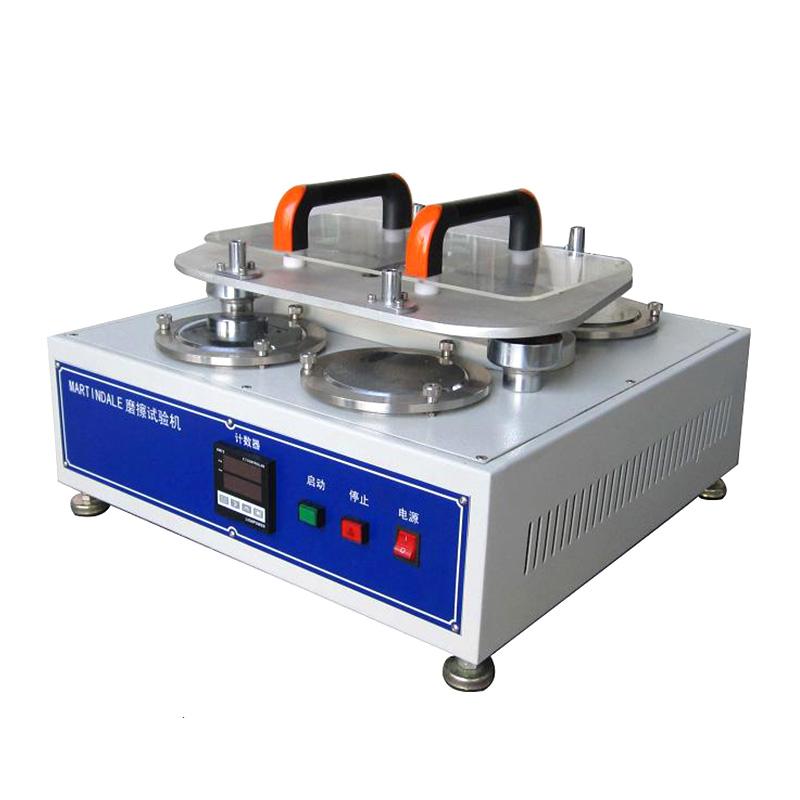

Huida HD-2032 Martindale Wear Tester Textile products, film material wear resistance testing
SEHuida HD-2032 Martindale Wear Tester, also known as friction resistance Tester, has two test modes and has 4 stations. HD-2032 Wear Tester is used for Textile products, film material wear resistance and Appearance change (pilling) test.
$1656.00/set
PromotionLoading...
Coupon
Model：
HD-2032
Similar products
-
MODERNER JM-V abrasion instrument (film configuration) is suitable for wear performance testing of Coating, paper, plastic, Spinning & weaving products -
CHINA NBC-101-6Z Martindale friction testing machine, six stations$ 2176.00SE -
HUITAO HT-2285-8 Martindale Wear resistance Tester Eight-station Martindale Pilling Tester$ 2628.00SE -
Shanghai PUSHEN JM-VI film abrasion instrument$ 2061.00SE -
Shanghai Pushen JM-IV film abrasion instrument, single platform$ 1501.00SE
Huida HD-2032 Wear testing machineSPEC
Huida HD-2032 Wear testing machineDetails
Huida HD-2032 Wear testing machinePacking list
- SKU
- NB007590
- Friction method
- Swirl/spin
- Frictional contact form
- face
- Number of grinding heads
- 4
- Power
- Ac220V 50Hz 500W
- Dimensions
- 580×560×320mm
- Weight
- 67kg
- Relative movement speed of gripper and grinding table
- 50-2r/min
- Pressurized Mass
- Gripper: 200 ± 1g
- Maximum range
- Horizontal: 60.5 ± 0.5mm; Longitudinal: 24 ± 0.5mm
- Counting range
- 0~999999 times
HD-2032
Wear testing machine
Introduction

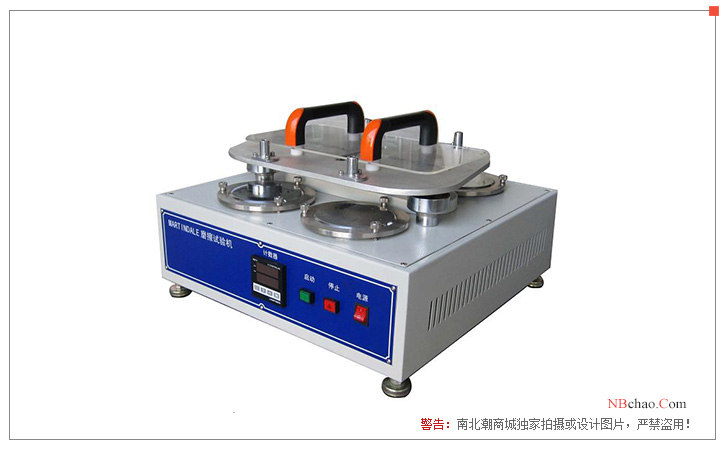

Huida HD-2032 Martindale Abrasion Tester is used for performance testing of textiles and membrane materials in terms of wear resistance, abrasion, and appearance change (pilling).
Instrument characteristics
1. Two test modes, plus and minus two counting methods:
Mode 1: 60×60mm Lissajous graphic movement track
Mode 2: 40×40mm Lissajous graphic movement track
2. The flip-free guide plate design, no need to move the sample
plan
FAQ
QHow many stations does this HD-2032 Wear testing machine have?
A
Hello, it is a 4th station.
QCan this HUIDA Martindale Wear testing machine correspond to QB/T2726?
A
Yes, please refer to the NBchao standards page for specific standards.
