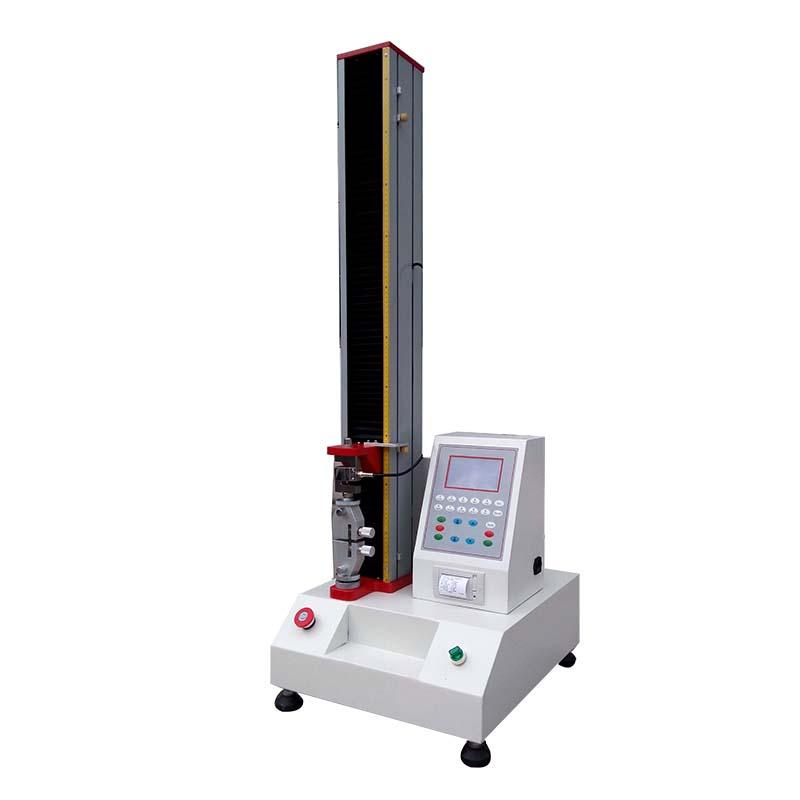

Huida HD-1003-B Zipper Compression Tensile Tester Load analysis 1/25000
SEHuida HD-1003-B zipper compression Tensile Tester is used for tensile, compressive, tensile, compression, bending, tear, flkn and other tests, HD-1003-B capacity of 50kg, using variable frequency motor.
$1778.00/set
PromotionLoading...
Coupon
Model：
HD-1003-B
Similar products
-
BaidaJUSHI LY-7012A Tensile Tester 50KG$ 1011.00SE -
HBO ZT-500 touch screen electric spring tension and compression testing machine, range 500N$ 2034.00SE -
HBO ZTD-500 Desktop Spring Special Testing Machine, Range 500N$ 3243.00SE -
Haibao ZY-500 Desktop Electronic Universal Testing Machine, Range 500N/50Kg$ 1847.00SE -
Haibao ZYD-500 desktop microcomputer-controlled universal testing machine, range 500N/50Kg$ 2778.00SE
Huida HD-1003-B Zipper compression Tensile TesterSPEC
Huida HD-1003-B Zipper compression Tensile TesterDetails
Huida HD-1003-B Zipper compression Tensile TesterPacking list
- SKU
- NB007594
- Capacity selection
- 50kg
- Load analysis
- 1/25000
- Force value Accuracy
- <0.5%
- Force range
- 0.5~100%F.S
- Sensors Sensitivity
- 1~20mV/V
- Displacement error of indication
- Better than ± 0.5%
- effective travel
- 700mm (including fixture)
- Force unit
- Including kgf, lbf, N, KN, KPa, Mpa various Measurement Units, users can also customize the required units
- Motor type
- Inverter motor
- Dimensions
- 43*43*110cm
- Machine Weight
- About 85kg
- Power
- 2PH，AC220V，50/60Hz，10A
HD-1003-B
Zipper compression Tensile Tester
Introduction
Huida HD-1003-B zipper compression Tensile Testing Machine can test the physical properties of various materials and finished products and semi-finished products. You can choose a variety of different fixtures for tensile, compressive, holding, holding, bending, and tearing. Crack, peel, adhesion, shear and other tests. It is the testing and research equipment that is satisfactory for various factories, enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and colleges and universities.
Application
HD-1003-B zipper compression Tensile Testing Machine is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber and plastics, paper products and color printing packaging, adhesive tape, turtle glue, bags and handbags, textiles Fiber, food, pharmaceutical and other industries.
plan
FAQ
QOur factory mainly produces luggage. I want to test the durability of zippers. Is there any recommended instrument?
A
HUIDA HD-1003-B Zipper Compression Universal Testing Machine is recommended. It is specially designed to test the tensile and holding performance of zippers. It can simulate the forces on zippers in actual use, helping you accurately evaluate the durability and mass of zippers and ensure product reliability.
QWhat are the most important functions when selecting this instrument?
A
When selecting a model, it is recommended to pay attention to a few points: the capacity of 50Kg is suitable for small and medium-sized tests, the force value Precision < 0.5% ensures accurate results, the effective stretching Travel 700mm is convenient for testing long samples, and there are a variety of force value units that can be switched. These functions make it flexible and can meet your different needs from R & D to Quality control, with high cost performance.
QTensile machine for paper film laminating strength?
A
Test size?
QFind a zipper compression Tensile machine for GB/T4074.10
A
This HD-1003-B Zipper Compression Tensile machine is.
