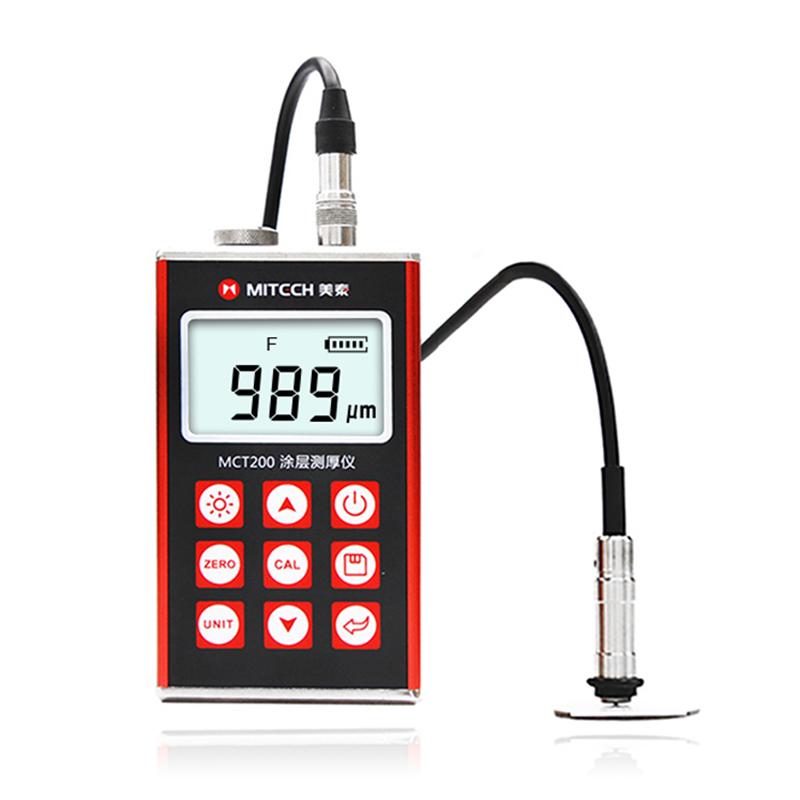

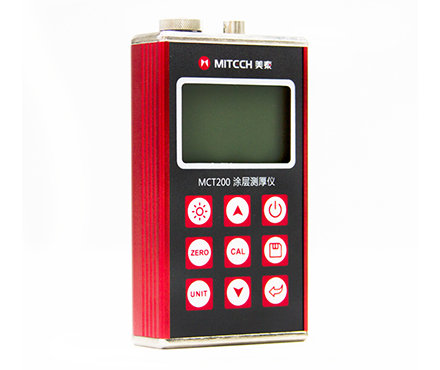

Mattel MCT200 coated platings Thickness Gauge, thickness range 0~1250μm with F1 probe

MCT200

Coating Thickness Gauge

Overview

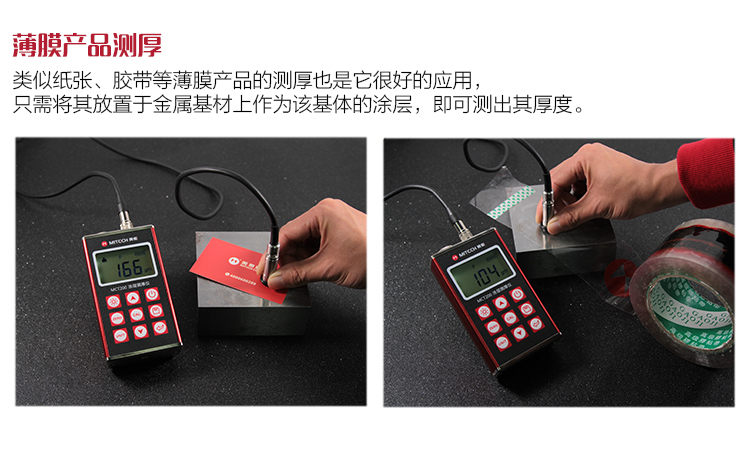

The MCT200 coating (coating) Thickness Gauge can quickly and without damage and accurately measure the thickness of coatings (e.g. paints, anti-corrosion layers), coating thickness, and film thickness. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It can meet the testing needs of different industries for the thickness of the coating on the surface of the workpiece. It is a professional precision instrument required to improve production efficiency and pass rate and save production costs.

Operating Principle

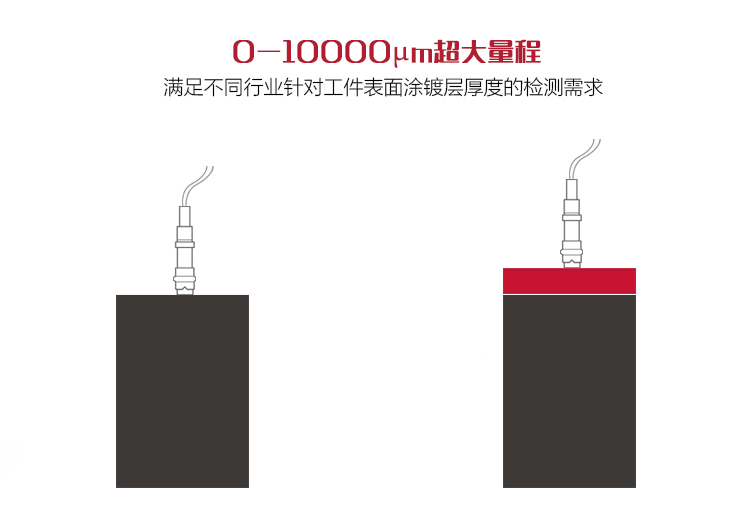

Mattel's MCT200 Coating Thickness Gauge uses a magnetic gauge to non-destructively measure the thickness of non-magnetic overlays (e.g., aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal (e.g., steel, iron, nickel, alloy, hard magnetic steel, etc.).

Operating Conditions

Ambient temperature: operating temperature -20°C~+50°C Storage temperature: -30°C~+70°C

Relative Humidity≤90%

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment

Features

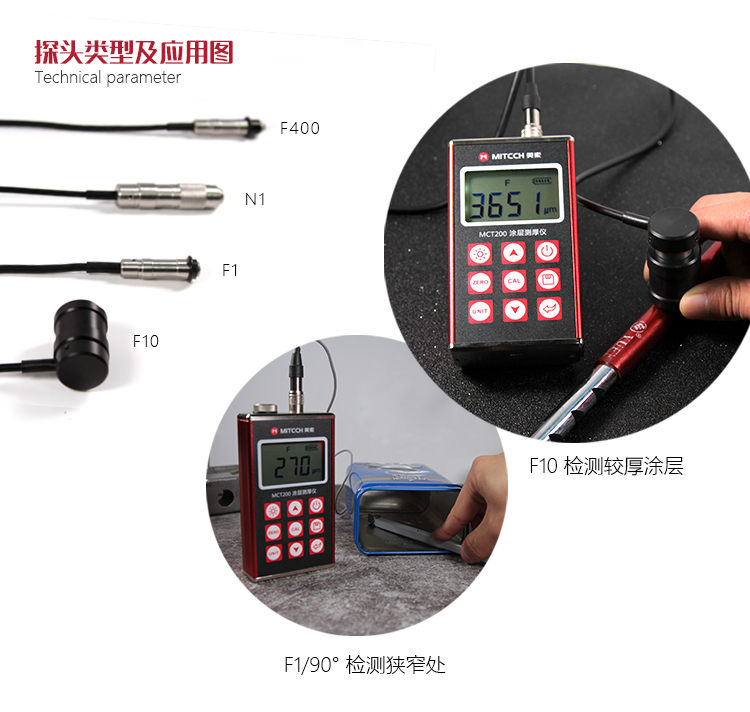

Five probe types are supported, and the probe contact parts are made of hard chrome or ruby plated material for durability

By selecting the appropriate probe, the thickness of the non-magnetic overlay on a magnetic metal substrate and the thickness of the non-conductive overlay on a non-magnetic metal substrate can be measured

It has the functions of zero point calibration, one-point calibration and two-point calibration of the probe, and can use the basic calibration method to correct the systematic error of the probe

There are two measurement methods: single measurement method and continuous measurement method

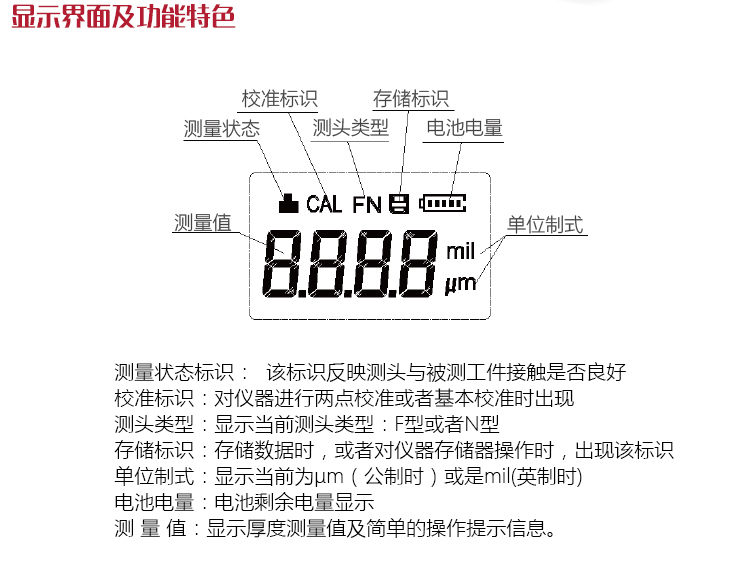

It has the function of indicating the measurement status

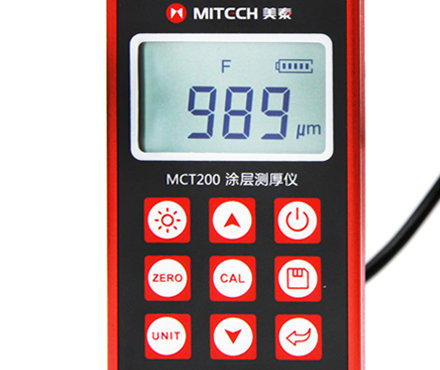

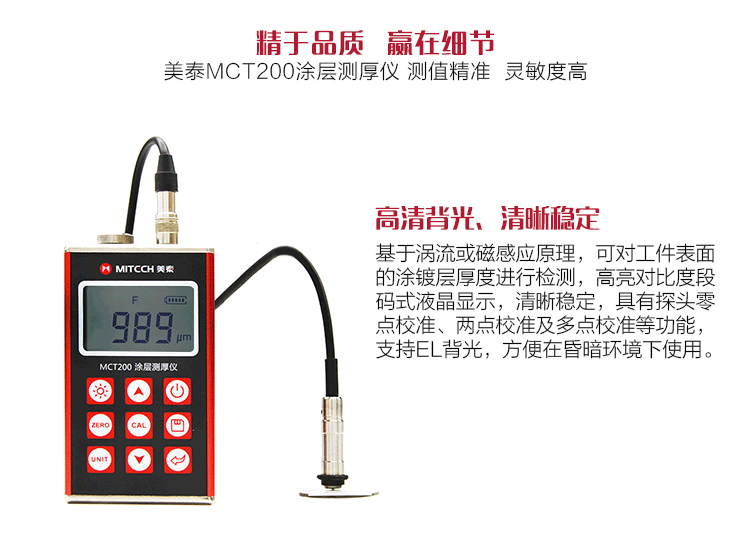

The EL backlit display function is convenient for use in low-light environments

It has a residual battery indication function, which can display the remaining battery power in real time

It has power-saving functions such as automatic sleep and automatic shutdown

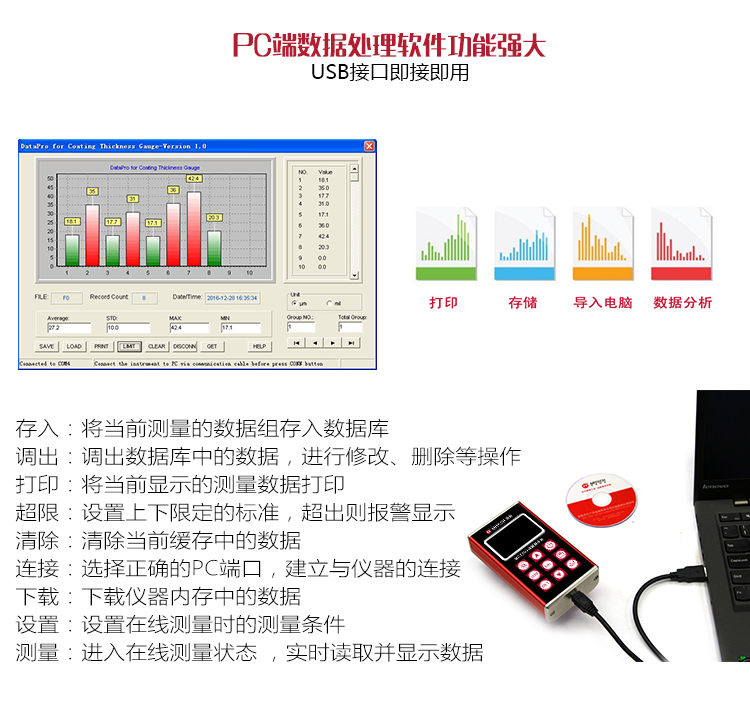

It is equipped with USB1.1 communication interface, which can be used for data communication with the computer, and can be equipped with data processing software to transmit the measurement results to the computer to realize the storage management, statistical analysis, printing report and other functions of the measured value

Small, portable, rugged and durable in an aluminum enclosure, it is suitable for harsh operating environments and is resistant to vibration, shock and electromagnetic interference

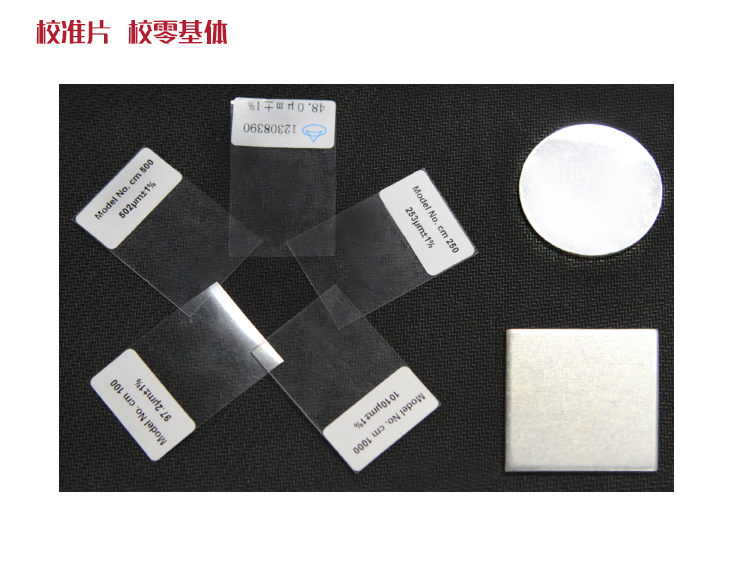

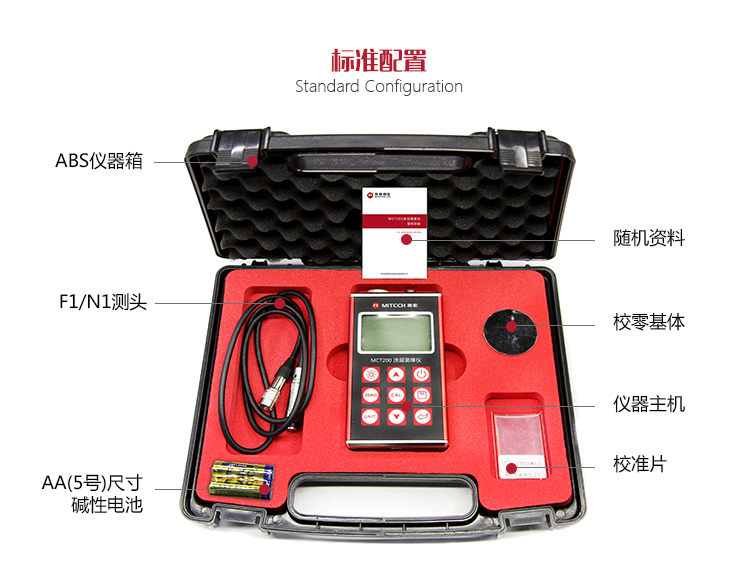

Packing list：Host x1, calibration shim x1, zero calibration base x1, manual x1, F1/N1 probe, AA battery x2, instrument case

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
