ANGNI AM110W-O Constant Speed Stirrer Digital Display, Max. Viscosity 100000mPa·s

SE
Brushless DC motor, OLED LCD, knob speed regulation, timing, memory
$655.00/set
PromotionLoading...
Coupon
Model:
Certificate

AN AM110W-O Constant Speed StirrerSPEC

AN AM110W-O Constant Speed StirrerDetails

AN AM110W-O Constant Speed StirrerPacking list

SKU
NB007657
Rated Voltage
AC100~240V
Rated Frequency
50/60Hz
Input Power
162W
output power
110W
drive type
DC brushless motor
Max Torque
13.1N.cm
Max Torque
39.0N.cm
Operating Mode
S1 (continuous)
Operation control mode
Combined control knob
Speed range
30~2000rpm
Speed regulation mode
stepless speed regulation
Timer
1~6000min
Rotation speed display
OLED
Rotation speed dynamic detection function
Yes
Rotation speed memory function
Yes
Safety protection
Overload protection
Impeller fixing method
Collet
Rotary collet clamping range
Φ2~10mm
Stirringrod penetration diameter
10mm
Impeller type
Three Blade Spiral Impeller
Processing Capacity
20L
maximum viscosity
100000mPa·s
Ambient Temperature
≤40℃
Allowable Relative Humidity
≤80%
Protection class
IP40
Dimensions
215*310*600mm
Machine Weight
7.6kg
AM110W-O
Constant Speed Stirrer
Brushless DC motor, OLED LCD, knob speed regulation, timing, memory

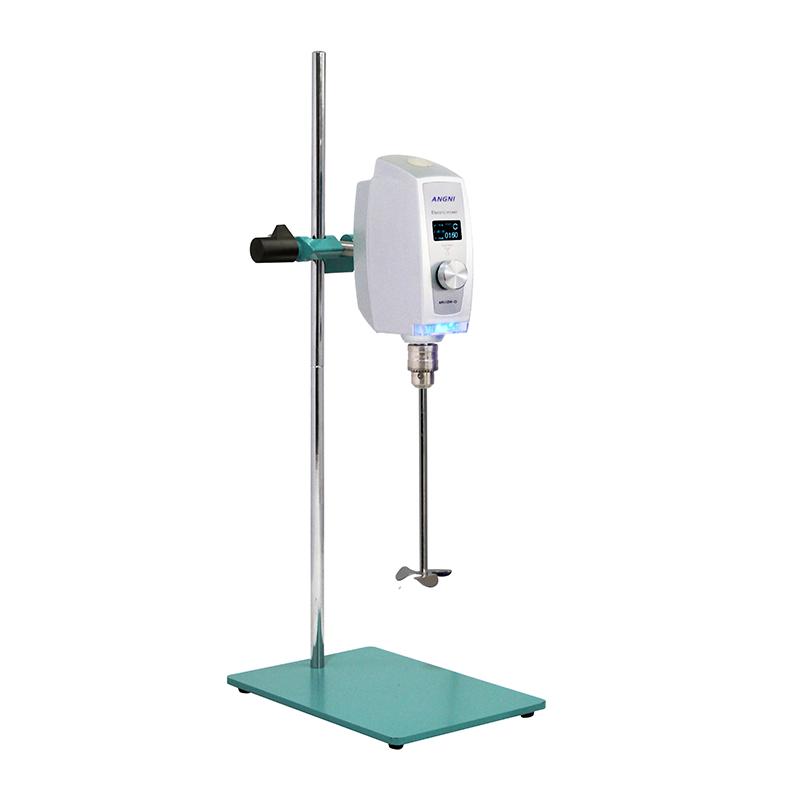

ANGNI AM110W-O Constant Speed Stirrer Digital Display, Max. Viscosity 100000mPa·s Picture

product description

Anny AM110W-O laboratory constant speed mixer is driven by a carbon brushless DC motor, which is suitable for stirring and mixing low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise, and maintenance-free. The stirring speed is controlled by a microprocessor, which can immediately and effectively compensate the speed change caused by load changes and power supply Voltage fluctuations, and the constant speed is reliable. The built-in automatic overload protection device ensures the safety of the long-term high-load continuous operation of the experiment; the operating status knob control makes the experimental operation easier; the stirring speed can be adjusted steplessly to meet the correction of the stirring speed during the experiment; the digital display setting and actual output The stirring speed ensures the intuitive collection of experimental data; the operation Timer Control ensures that the timeliness of the experiment is effective and controllable. Stable stirring speed, capable of stirring high-viscosity media and slurry.

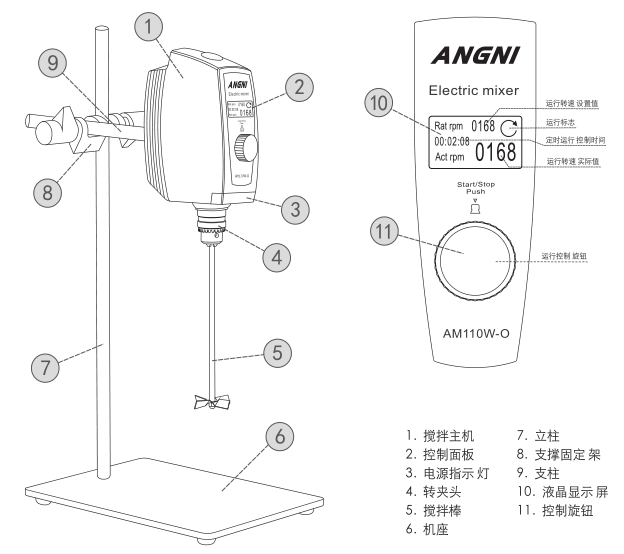

Product Structure

Anny AM110W-O laboratory constant speed mixer

Pictures

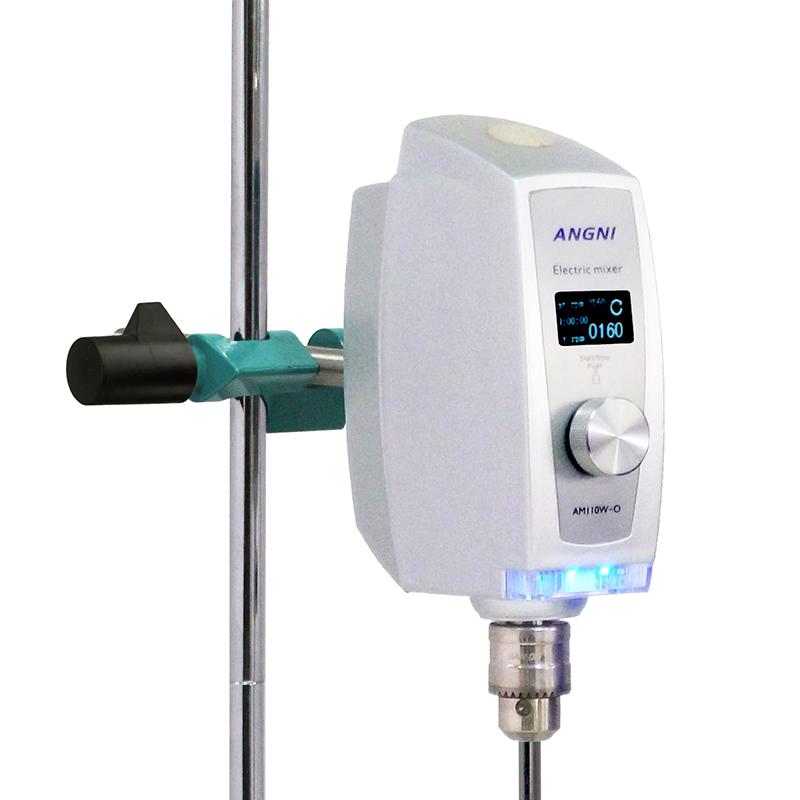

Ani AM110W-O laboratory constant speed mixer display
