mitech MUT520B Ultrasonic Flaw DetectorSPEC
mitech MUT520B Ultrasonic Flaw DetectorDetails

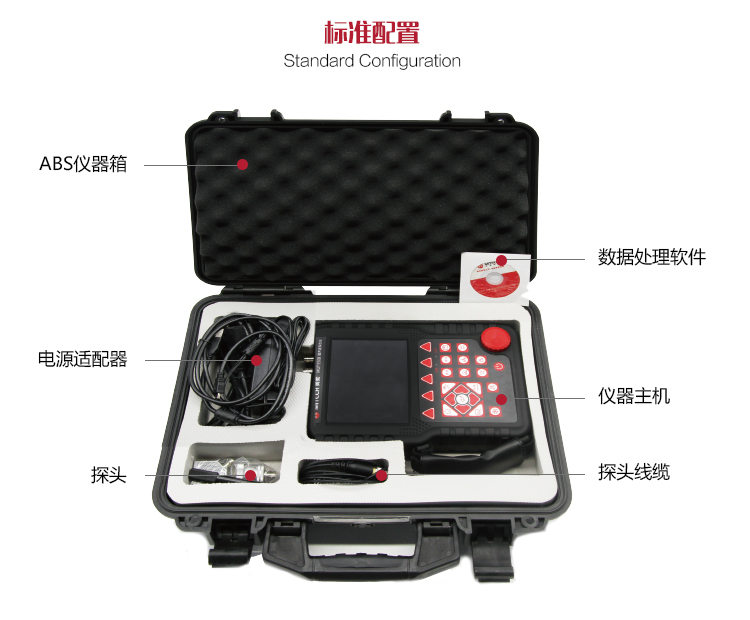

mitech MUT520B Ultrasonic Flaw DetectorPacking list
- SKU
- NB007821
- Scanning range
- 0~6000mm
- Frequency range
- 0.5~10MHz
- Speed of sound
- 1000~15000m/s
- Dynamic range
- ≥36dB
- Vertical Linearity
- ≤3%
- Horizontal Linearity
- ≤0.2%
- Display
- 320*240
- Resolution
- ＞40dB(5P14)
- Blind spot
- 5MM
- Sensitivity margin
- > 60dB (200mm depth with 2 flat bottom holes)
- digital suppression
- (0~80) %, does not affect linearity and gain
- video duration
- without
- electrical noise level
- ≤10%
- Probe type
- Straight probe, oblique probe, dual crystal probe, penetration probe
- gate
- Inlet gate, loss gate; single gate reading, double gate reading
- Alarm function
- Beep alarm, LED light alarm
- flaw detection standard
- Built-in common flaw detection standards in various industries, directly calling, convenient and fast

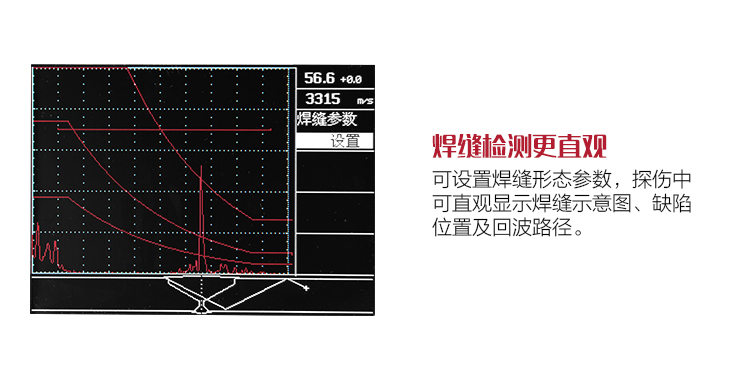

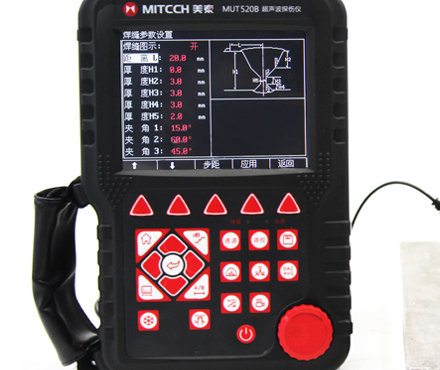

- Weld diagram
- The weld shape parameters can be set, and the weld pattern and the position of defects in the weld can be visually displayed during flaw detection
- Automatic calibration
- Probe zero and probe angle (K value) Automatic calibration function; Speed of sound automatic measurement function
- Memory
- Real-time retrieval of the highest defect wave and recording of the peak defect echo
- positioning
- Real-time display of defect horizontal, depth (vertical), sound path position
- defect quantification
- Real-time display of defect equivalent dB value
- defect characterization
- Through the echo envelope waveform, it is convenient for manual experience to judge
- surface correction
- For flaw detection of curved workpieces, the circumferential position of defects can be displayed in real time
- DAC/AVG
- Linear dispersion is automatically generated, with unlimited sampling points, and can be compensated and corrected. Linear dispersion automatically floats with gain, automatically expands with sound path, and automatically moves with delay. AVG Linear dispersion can display any aperture
- AWS D1.1
- American Welding Society standard, provides a dynamic reflection "defect rating" for various AWS weld inspection applications. Avoids manual calculations and improves inspection efficiency (optional)
- Crazing bathymetry
- Automatic measurement and calculation of crazing depth using diffraction waves
- Door widening
- Amplify echo details for easy echo analysis
- continuous recording
- Record waveforms in real time, store and playback waveforms
- waveform freezing
- Freeze the waveform displayed on the screen for easy defect analysis
- echo coding
- Display 1 to 6 echo display areas in different Colors, better distinguish between primary and secondary waves, and facilitate the determination of defect locations
- B-scan
- (Ordinary B-scan) Real-time scanning and cross-sectional display make detection results more intuitive
- Environmental temperature
- (-10~50)℃
- Relative Humidity
- (20~95)%RH
- Power Supply
- Direct current (DC) 9V; lithium battery works continuously for more than 10 hours
- Power saving method
- Low power design
- Working time
- More than 10 hours
- Protection level
- IP64
- Communication interface
- USB2.0 high-speed communication transmission interface
- PC software
- Yes.
- Operating language
- Chinese

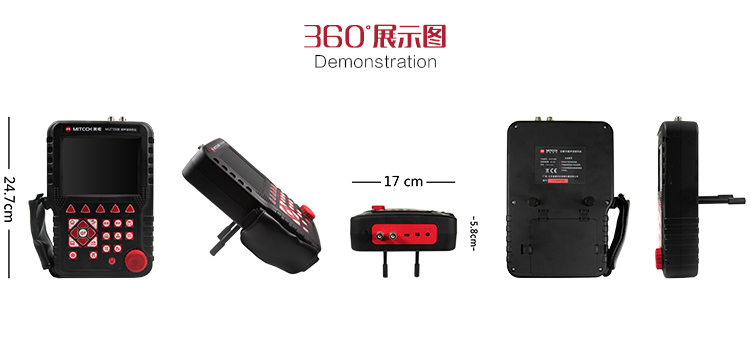

- Dimensions
- 263*170*61mm
- Machine Weight
- 5.2KG
Overview

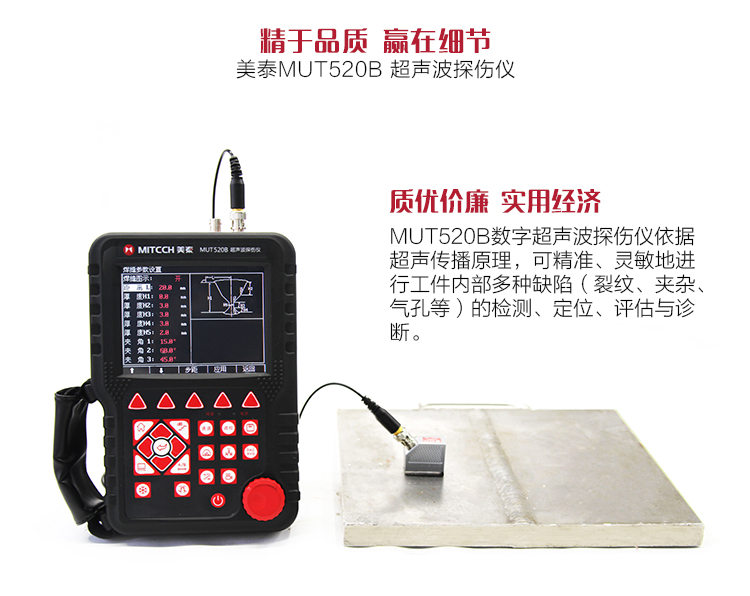

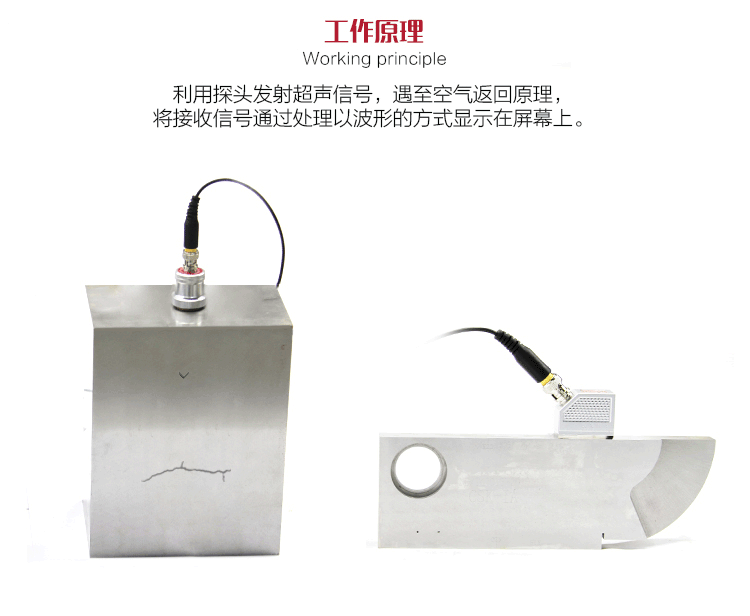

MUT520B digital ultrasonic flaw Detector is a portable, all-digital ultrasonic flaw Detector, which can quickly and conveniently, without damage, and accurately detect, locate, evaluate and diagnose a variety of defects (cracks, inclusions, porosity, etc.) inside the workpiece. It can be used both in the laboratory and in the engineering field. The range of 0-6000mm can meet the conventional defect needs of manufacturing, iron and steel metallurgy, metal processing industry, chemical industry, etc., and the low-power design is equipped with a large-capacity and high-performance ion battery module that can be used for more than several months.
Functional use

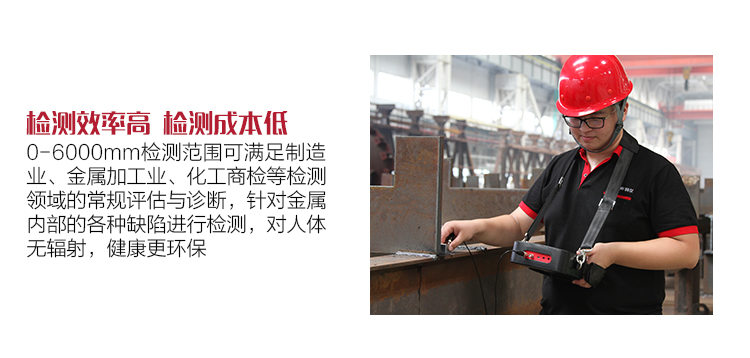

MUT520B digital ultrasonic flaw Detector can be widely used in manufacturing, iron and steel metallurgy, metal processing industry, chemical industry and other fields that require defect detection and quality control, and is also widely used in aerospace, railway transportation, boiler and pressure vessel and other fields of in-service safety inspection and life assessment.

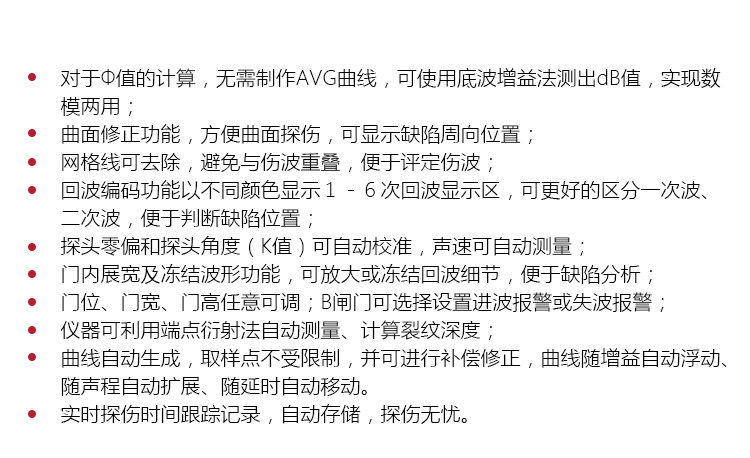

Features

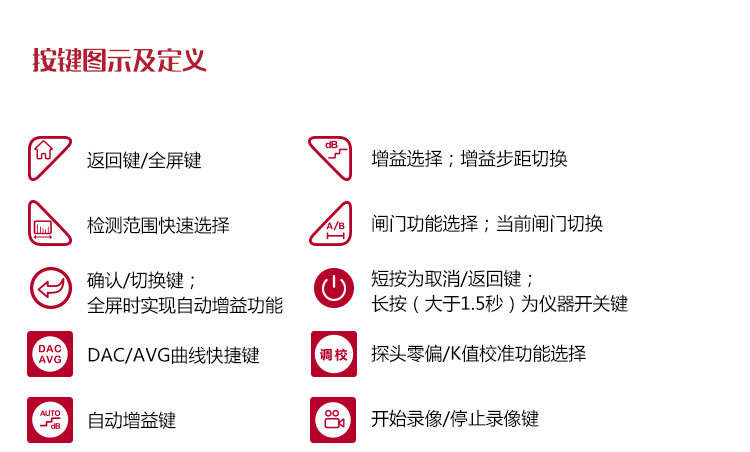

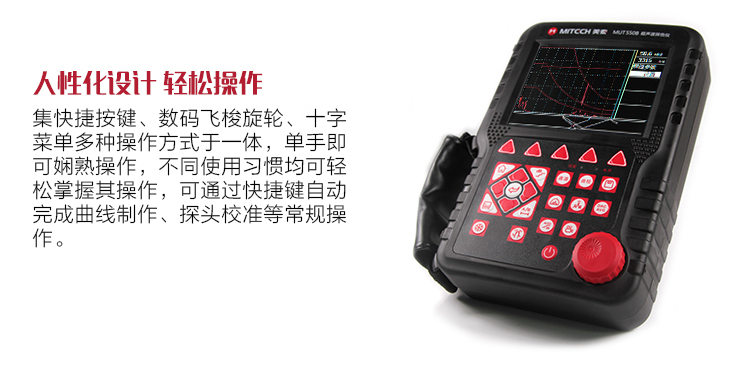

1. Full Chinese display, master-slave menu, and designed with shortcut buttons and digital shuttle rotary wheel, easy to operate, professional technology.
2. MUT520B-TFT adopts all-digital true color liquid crystal display, which can choose the background color, waveform color and menu item color according to the environment, and the LCD brightness can be set freely; MUT520B-EL adopts high-brightness, wide temperature, military-grade EL display, which can work in outdoor strong light, and the LCD brightness can also be set freely.
3. The high-performance security battery module is easy to disassemble and assemble, can be charged offline independently, and the large-capacity high-performance lithium-ion battery module extends the continuous working time of the instrument to more than eight hours.
