MITECH MUT660C ultrasonic flaw detection (UFD) instrument detection range 0~9999mm
MUT660C
mitech MUT660C Ultrasonic flaw detection (UFD) instrumentSPEC
mitech MUT660C Ultrasonic flaw detection (UFD) instrumentDetails

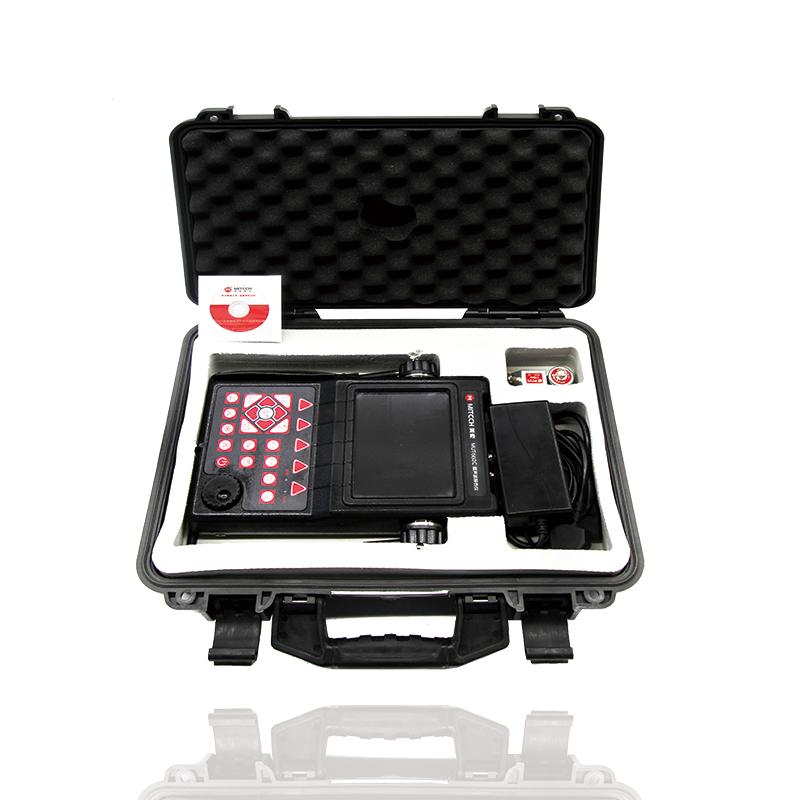

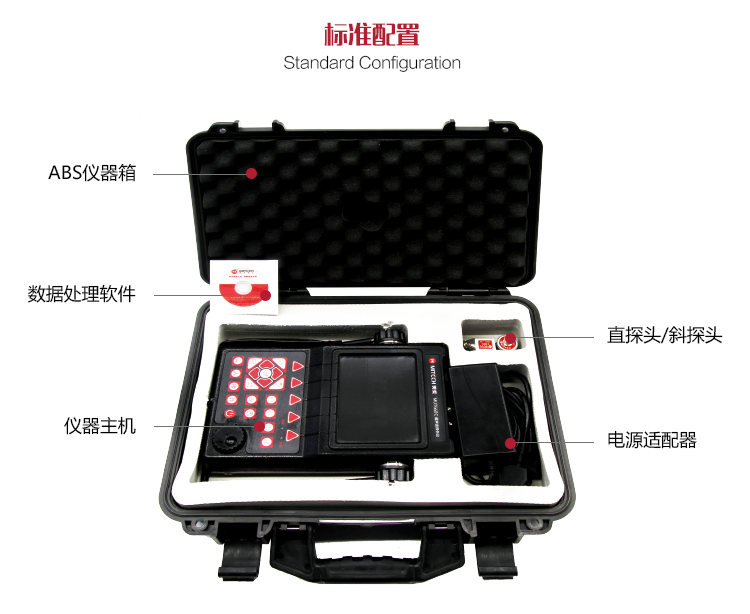

mitech MUT660C Ultrasonic flaw detection (UFD) instrumentPacking list
- SKU
- NB007823
- Scanning range
- 0~9999mm
- Frequency range
- 0.2~20MHz
- Speed of sound
- 300~20000m/s
- Dynamic range
- ≥36dB
- Vertical Linearity
- ≤2%
- Horizontal Linearity
- ≤0.1%
- Display
- 640 * 480 true color LCD screen
- resolution
- ＞40dB(5P14)
- Blind spot
- 5MM
- digital suppression
- (0~80) %, does not affect linearity and gain
- video duration
- More than 100 hours
- electrical noise level
- ≤8%
- Probe type
- Straight probe, oblique probe, dual crystal probe, penetration probe
- gate
- Inlet gate, loss gate; single gate, double gate readings; peak trigger, edge trigger
- Alarm function
- Beep alarm, LED light alarm
- flaw detection standard

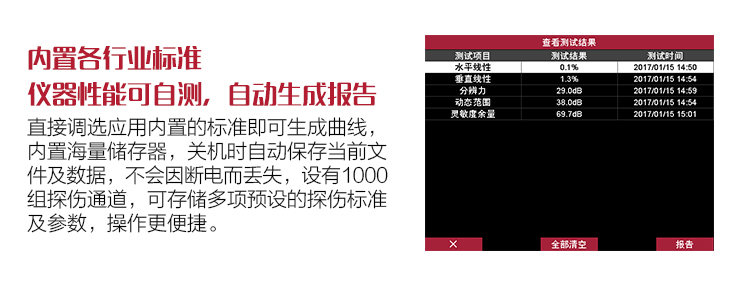

- Built-in common flaw detection standards in various industries, directly calling, convenient and fast

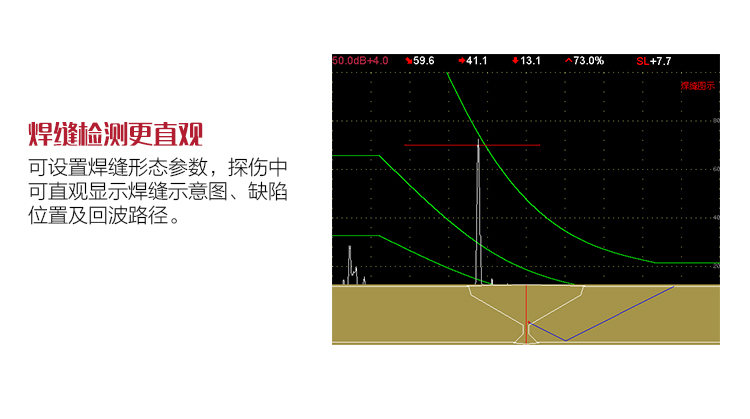

- Weld diagram
- The weld shape parameters can be set, and the weld pattern and the position of defects in the weld can be visually displayed during flaw detection
- Automatic calibration
- Probe zero and probe angle (K value) Automatic calibration function; Speed of sound automatic measurement function
- Memory
- Real-time retrieval of the highest defect wave and recording of the peak defect echo
- positioning
- Real-time display of defect horizontal, depth (vertical), sound path position
- defect quantification
- Real-time display of defect equivalent dB value
- defect characterization
- Through the echo envelope waveform, it is convenient for manual experience to judge
- surface correction
- For flaw detection of curved workpieces, the circumferential position of defects can be displayed in real time (optional function)
- DAC/AVG
- Linear dispersion is automatically generated, with unlimited sampling points, and can be compensated and corrected. Linear dispersion automatically floats with gain, automatically expands with sound path, and automatically moves with delay. AVG Linear dispersion can display any aperture
- AWS D1.1
- American Welding Society standard, provides a dynamic reflection "defect rating" for various AWS weld inspection applications. Avoids manual calculations and improves inspection efficiency. (Optional feature)
- Crazing bathymetry
- Automatic measurement and calculation of crazing depth using diffracted waves at endpoints (optional function)
- Door widening
- Amplify echo details for easy echo analysis

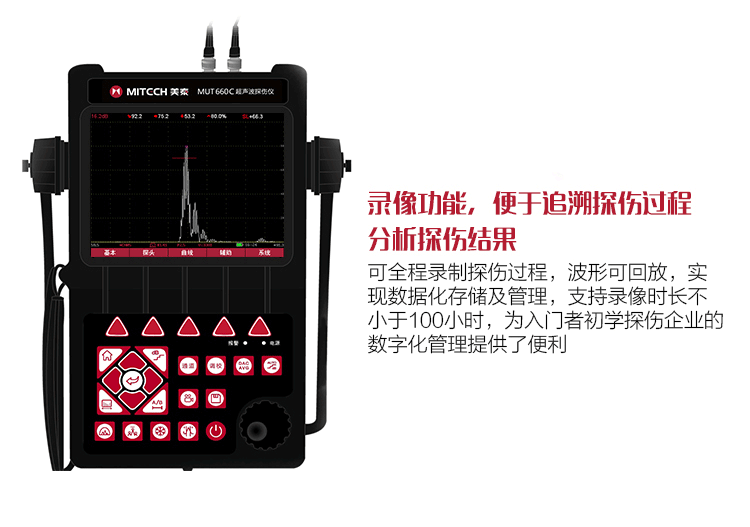

- continuous recording
- Record waveforms in real time, store and playback waveforms
- waveform freezing
- Freeze the waveform displayed on the screen for easy defect analysis
- echo coding
- Display 1 to 6 echo display areas in different Colors for easy determination of defect location
- B-scan
- (Color-coded B-scan) Real-time scanning and cross-sectional display make detection results more intuitive
- Environmental temperature
- (-10~50)℃
- Relative Humidity
- (20~95)%RH
- Power Supply
- Direct current (DC) 9V; lithium battery, can work continuously for more than 10 hours
- Power saving method
- Low power design
- Working time
- More than 10 hours
- Protection level
- IP64
- Communication interface
- USB2.0 high-speed communication transmission interface

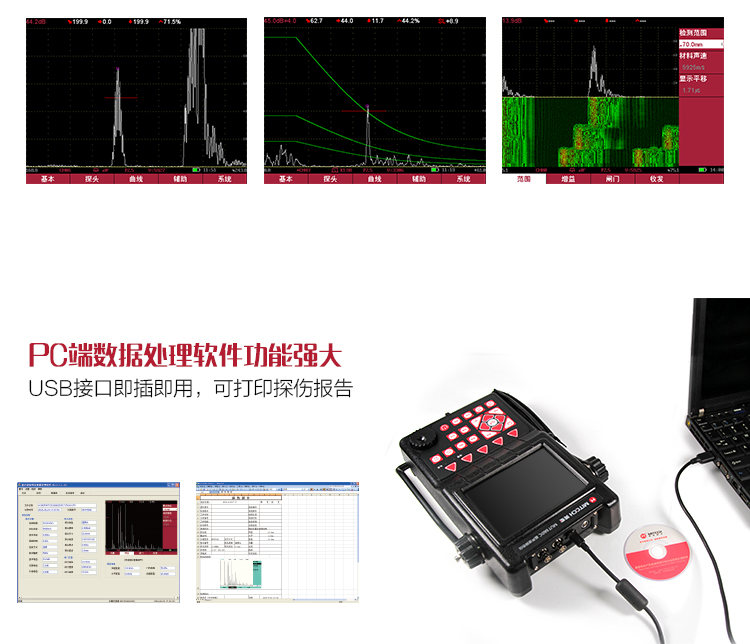

- PC software
- Yes.

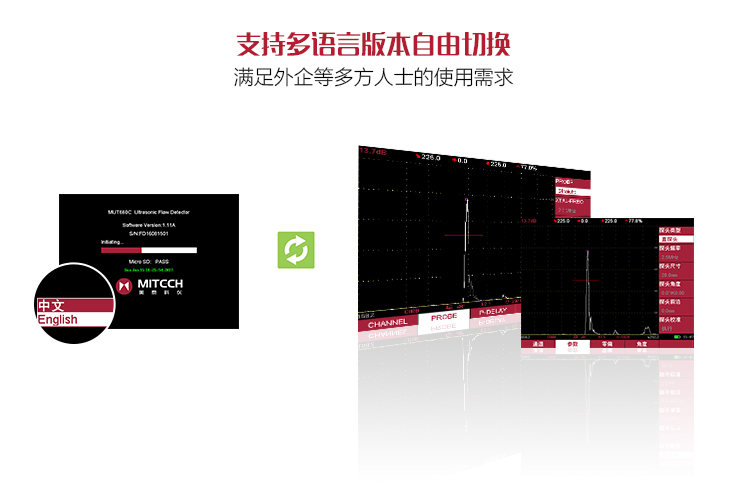

- Operating language
- Chinese
- Dimension
- 280*220*70mm
- Machine Weight
- 5.5KG

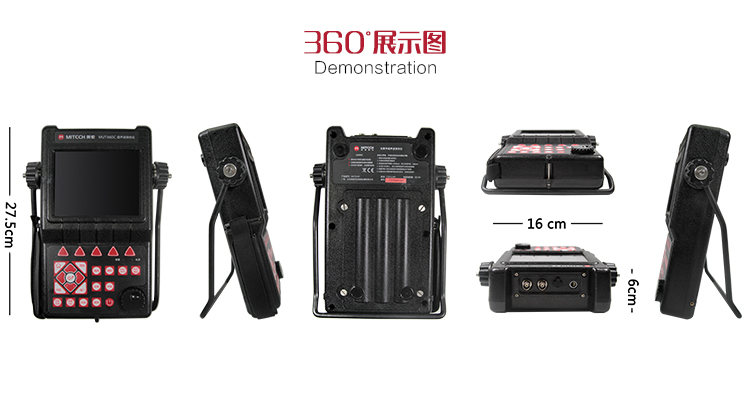

Overview

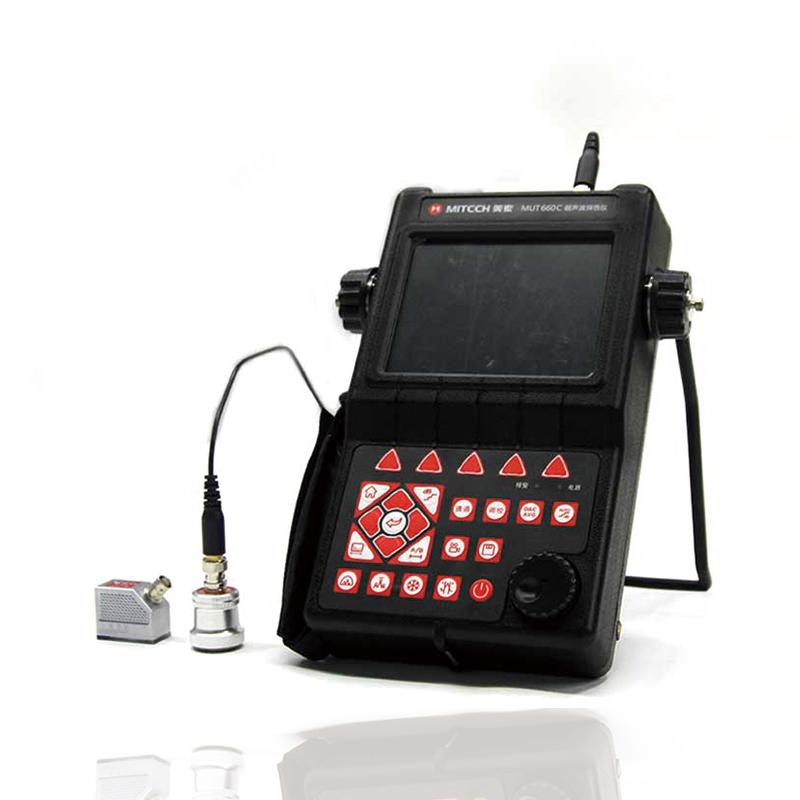

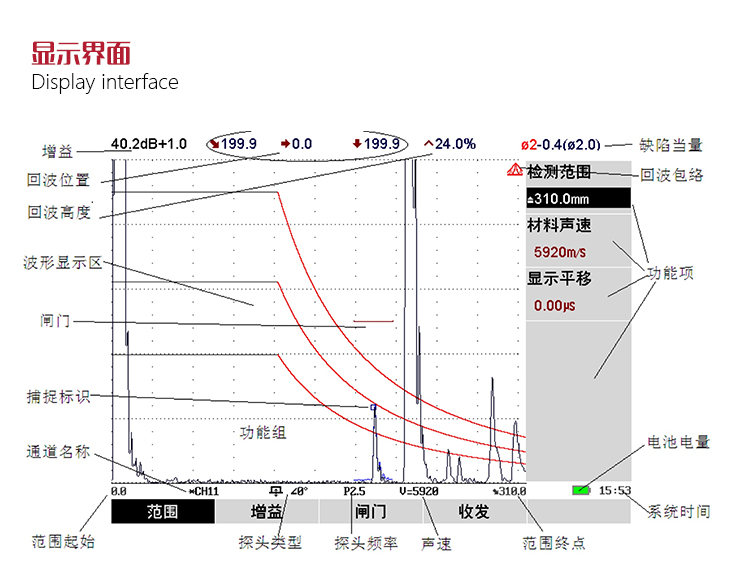

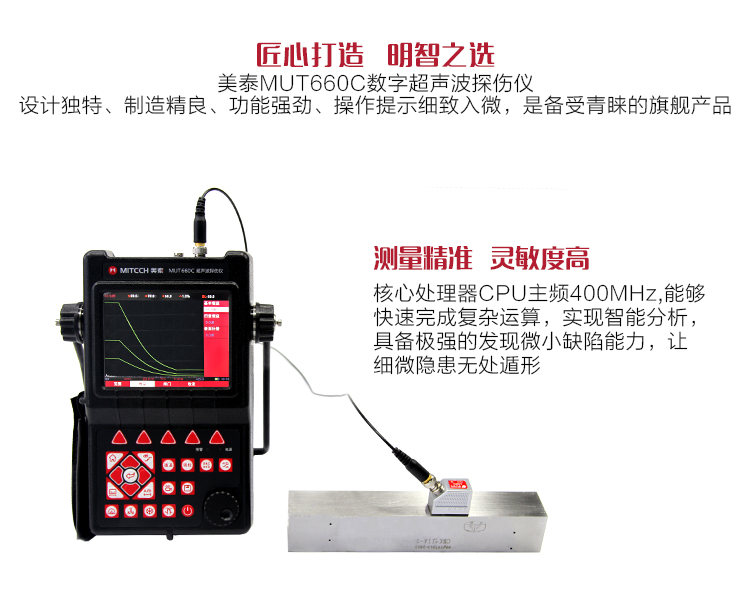

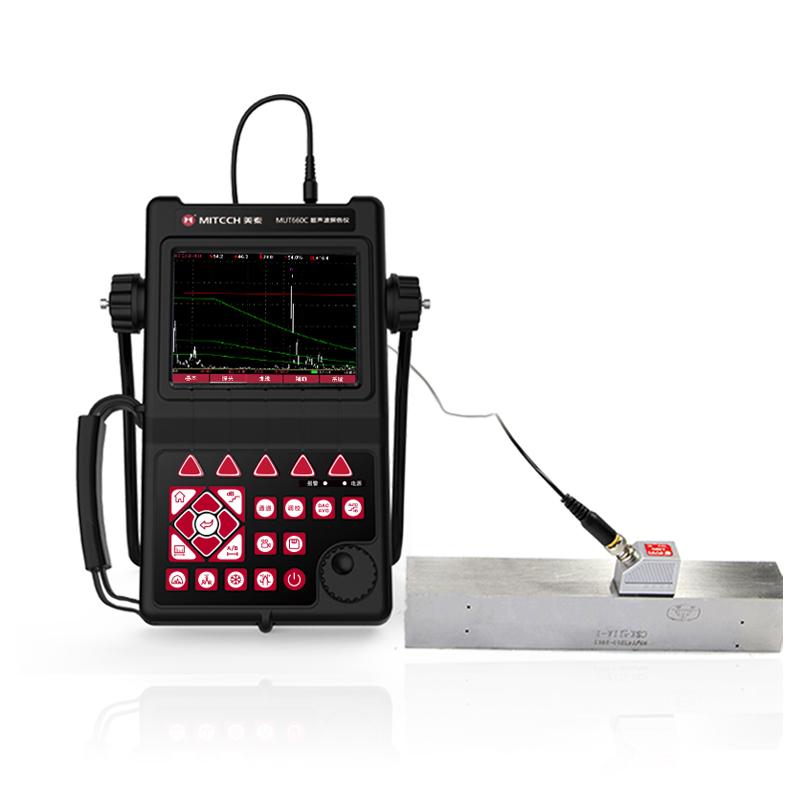

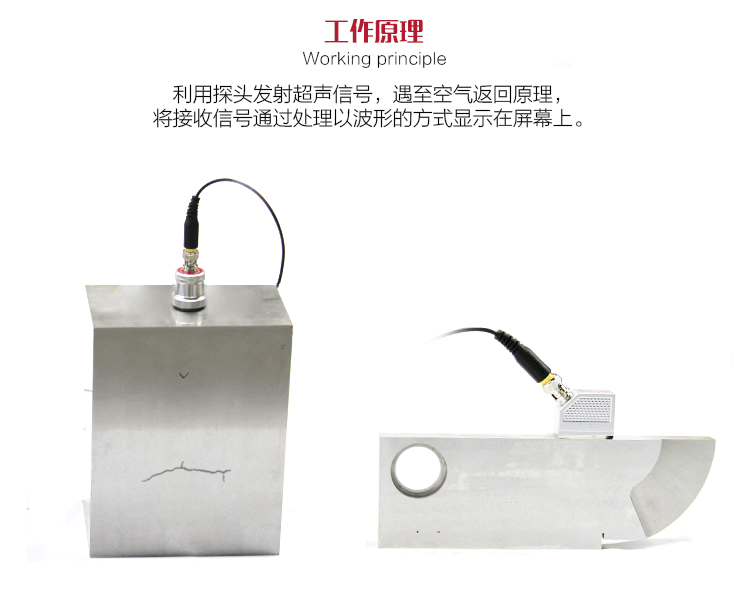

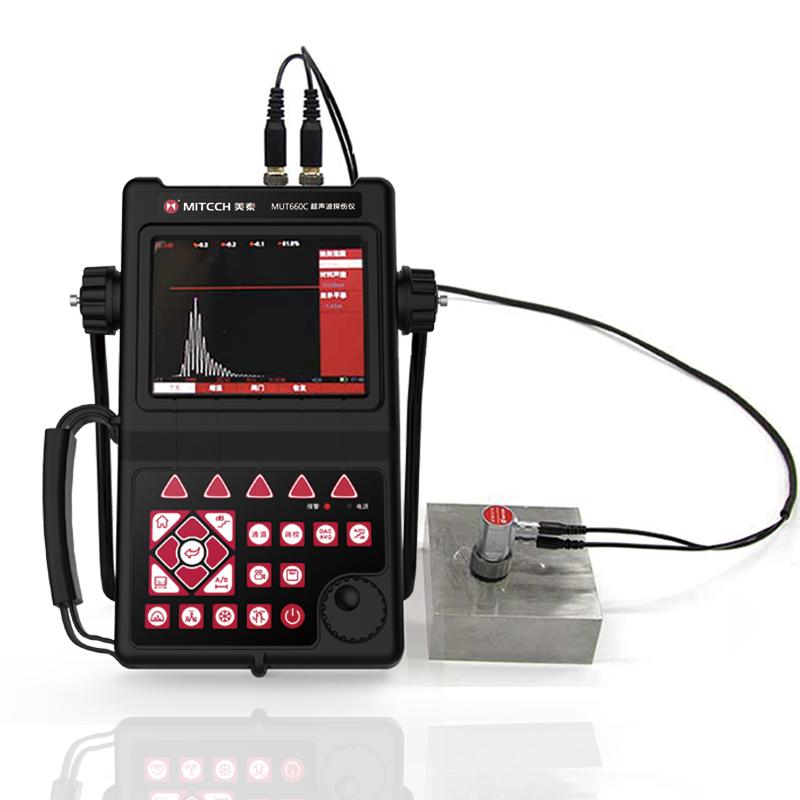

Mattel Instruments MUT660C Ultrasonic Flaw Detector is an intelligent digital ultrasonic flaw Detector with unique design, excellent manufacturing, easy operation, and powerful functions, which has been favored by users since its inception, and it can quickly and conveniently, damage-free, and accurately detect, locate, evaluate, and diagnose a variety of defects (cracks, inclusions, porosity, etc.) inside the workpiece. Using all-digital TFT 640×480 true color LCD screen, the operation interface style can be selected according to the environment, the LCD brightness can be adjusted, the interface design is humanized, and the waveform display is delicate; Defects can be clearly found in full screen; One-handed operation, curve making, probe calibration and other routine operations can be completed automatically; The CPU frequency of the core processor is 400M, which can quickly complete complex operations and realize intelligent defect analysis. The low-power design is equipped with a large-capacity and high-performance lithium-ion battery module, which can work continuously for more than 10 hours; The full Chinese master-slave menu, focusing on user experience, integrates three operation modes: shortcut buttons, digital shuttle rotary wheel, and cross menu, and can be operated freely by different usage habits; Multi-language support. Waterproof, oilproof and dustproof can reach IP65 protection level. It is a professional precision instrument required for defect detection, quality control, in-service safety monitoring and life assessment in the fields of petroleum, chemical industry, metallurgy, shipbuilding, aviation, railway, etc.
Functional use

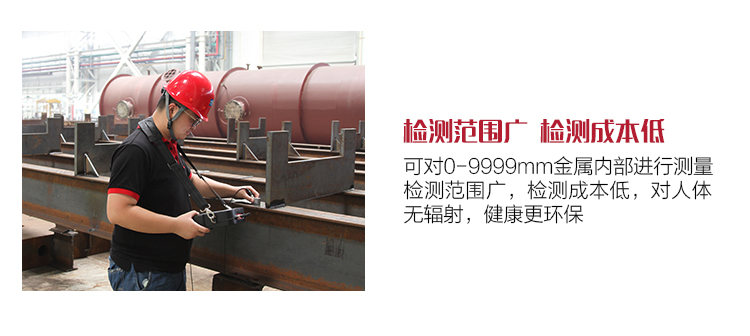

MUT660C ultrasonic flaw DetectorIt can be widely used in manufacturing, iron and steel metallurgy, metal processing industry, chemical industry and other fields that require defect detection and quality control, and is also widely used in aerospace, railway transportation, boiler and pressure vessel and other fields of in-service safety inspection and life assessment. 、
Features

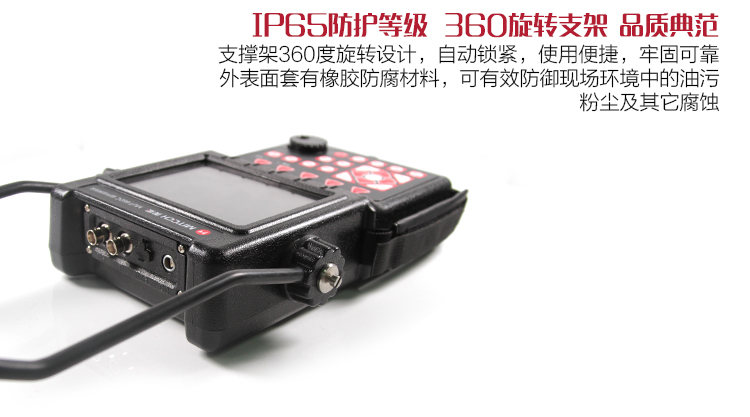

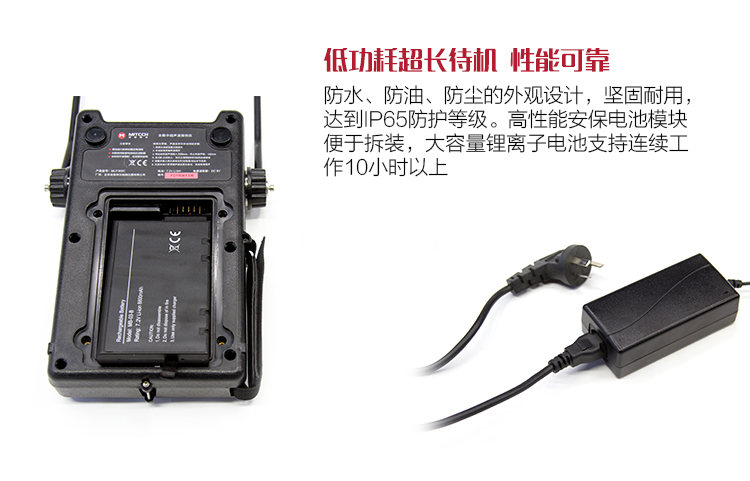

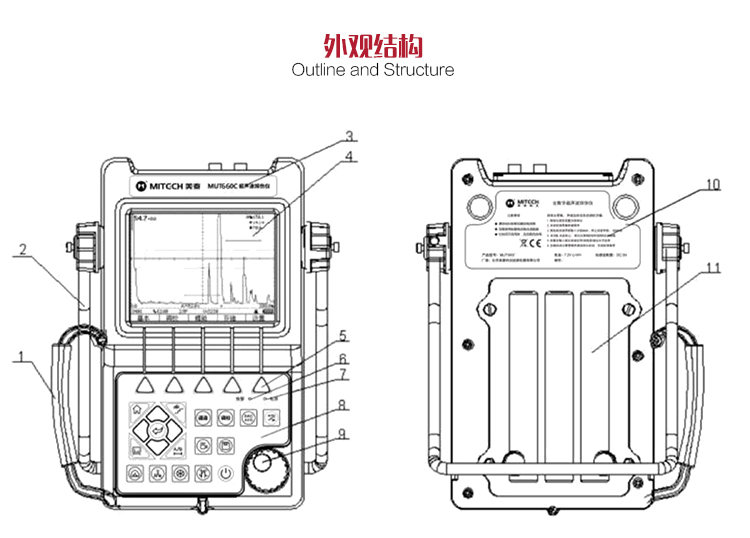

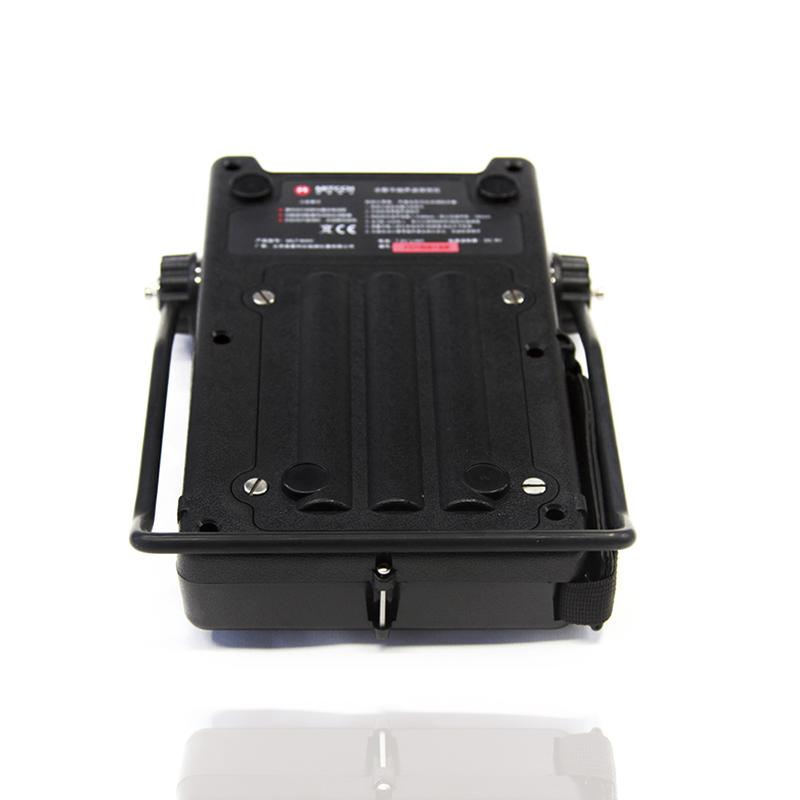

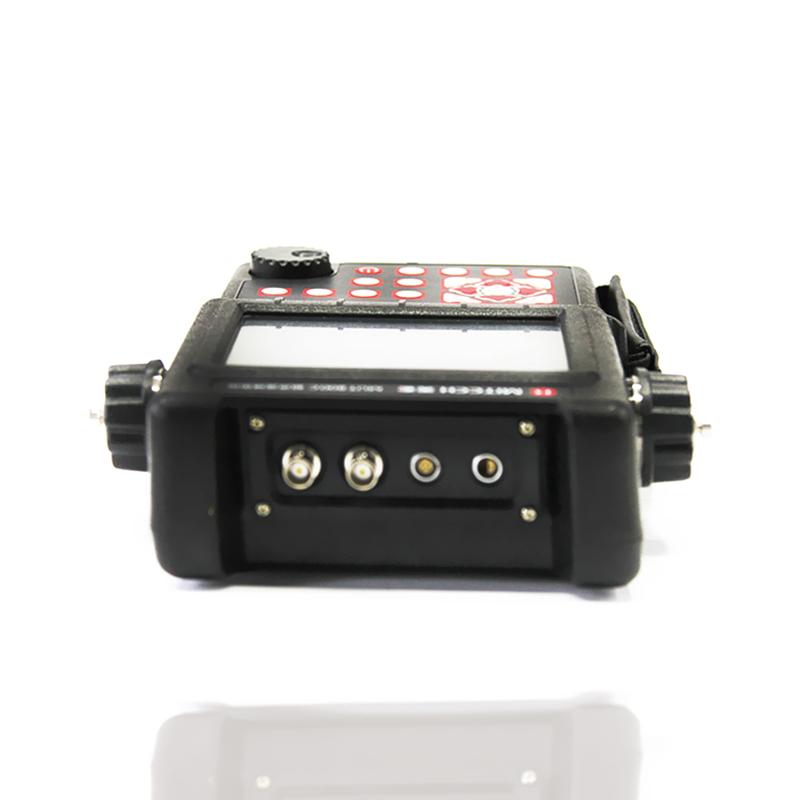

1. MUT660C ultrasonic flaw DetectorDesigned for harsh field environments and rugged. Sealed design makes it resistant to moisture, sand, dust, oil and other contamination in harsh environments ranging from oceans to deserts. Unique spill-proof design, waterproof and oil-proof, can work in rainy days. The unique swivel stand is easy to use.
2. The defect echo parameters (distance, horizontal, vertical, amplitude, dB equivalent value, flat bottom hole equivalent value) are displayed in real time, the flaw detection information is clear at a glance, and the flat bottom hole conversion of defect quantification can be automatically completed.
3. Square wave pulse, emission Voltage, filter frequency band, and probe damping are adjustable, which is suitable for flaw detection of various workpieces.

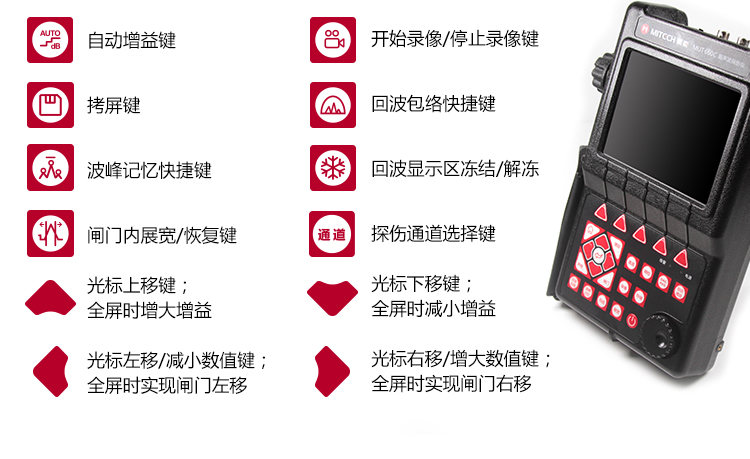

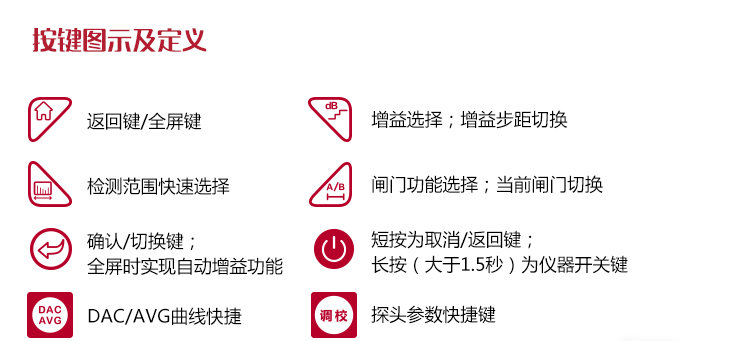

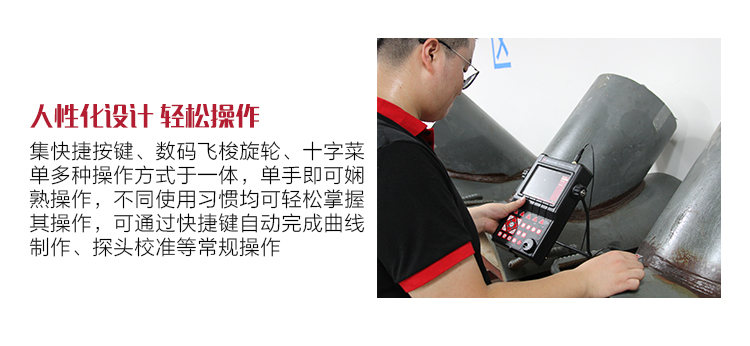

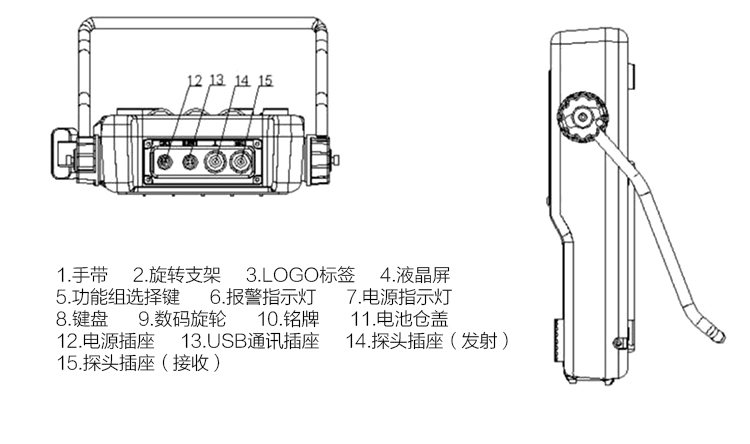

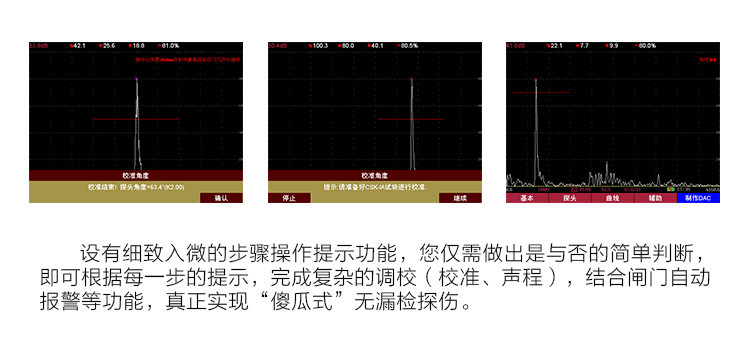

4. Full Chinese display, master-slave menu, and designed with shortcut buttons and digital shuttle rotary wheel, easy to operate, professional technology.

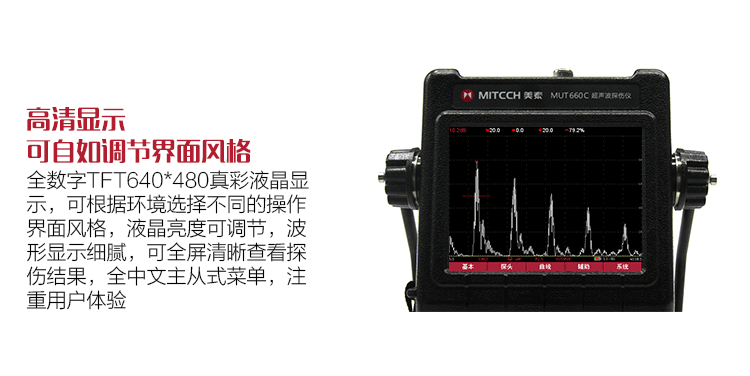

5. Using TFT full digital true color liquid crystal display, the screen brightness is clear, the background color can be selected according to the environment, and the LCD brightness can be set freely, so that it can adapt to different operating environments.
6. The high-performance security battery module is easy to disassemble and assemble, so that the continuous working time of the instrument can reach more than eight hours.
