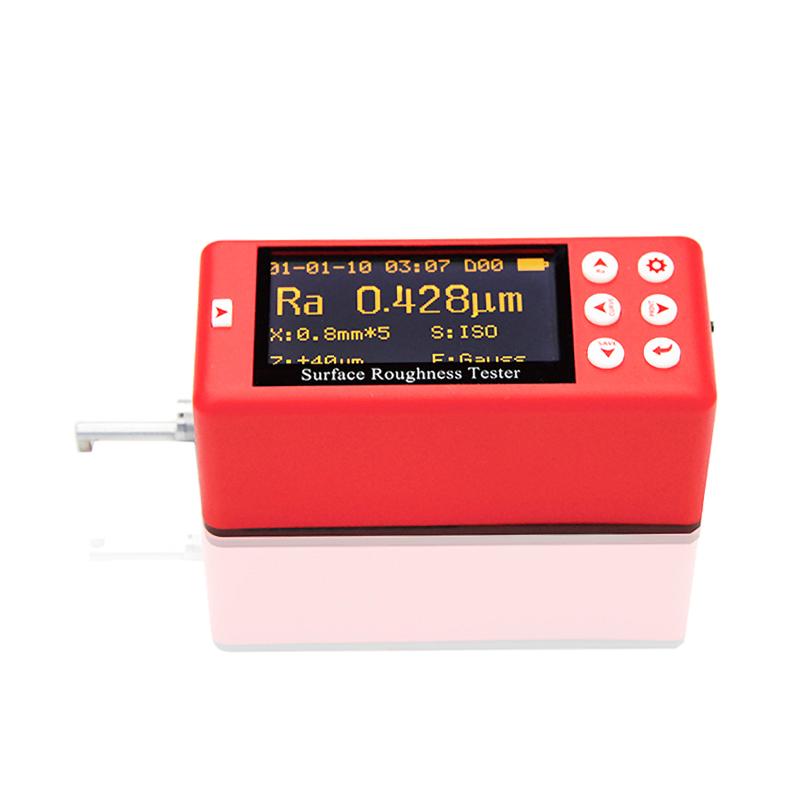

MITECH MR200 Roughness Gauge supports measurement of 28 parameters

MR200

Roughness Gauge

Introduction

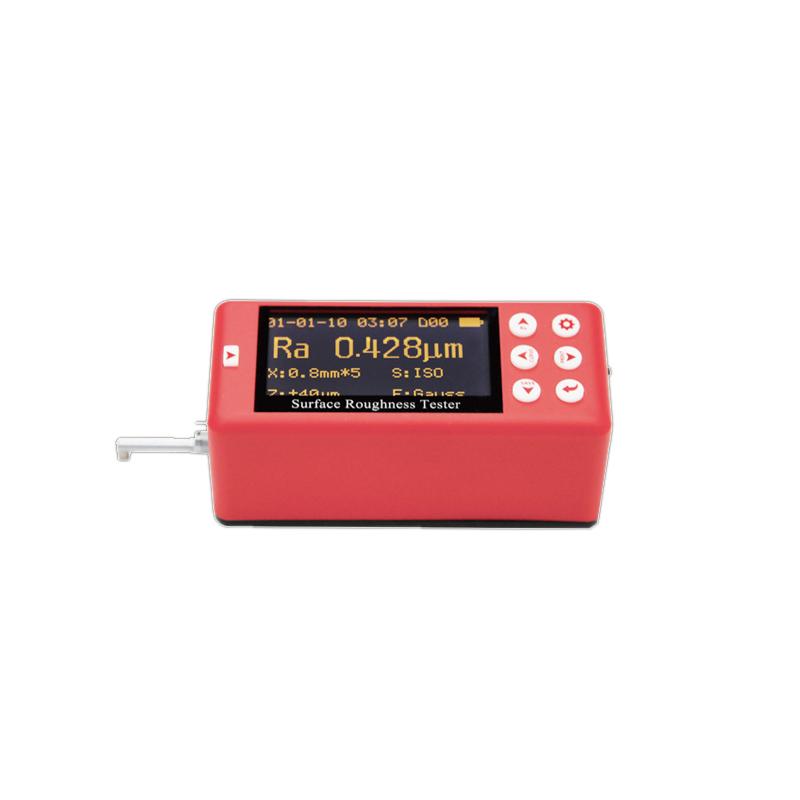

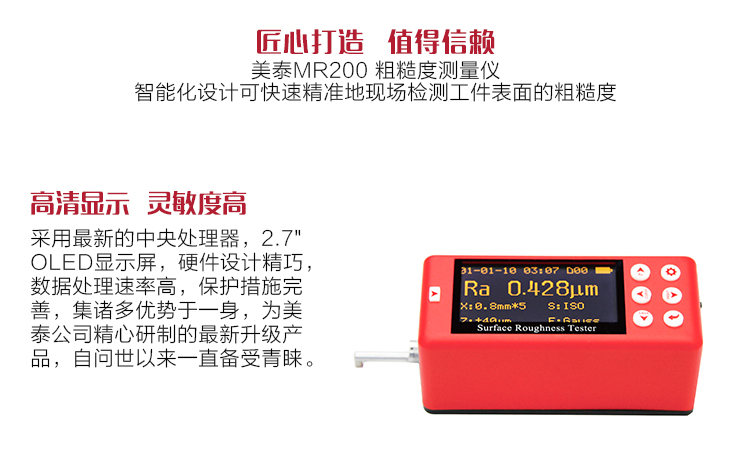

MR200 Portable Roughness Tester is a new upgraded product carefully developed by Mattel Instruments, which uses the current new processor and 2.7-inch OLED display, which significantly improves the user's experience of accurate roughness testing. It has a large range design, the detection range far exceeds similar products, which can meet the needs of all kinds of users, through the MICRO-USB interface or standard bluetooth module and SD memory card, it can realize wireless remote control start, measurement, support on-site bluetooth printer wireless communication, through PC mass storage data. It is widely used in the quality control of various precision metal processing and manufacturing processes, and is a professional precision instrument required to improve the production qualification rate and save costs.

Features

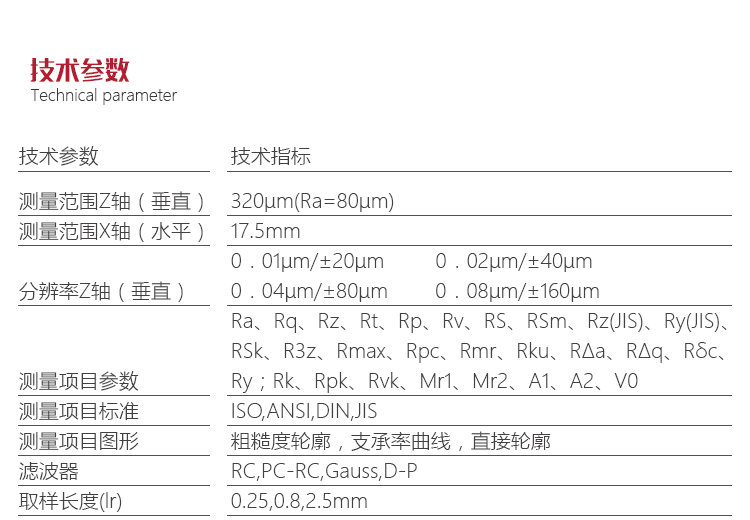

1. 28 measurement parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rz(JIS), Ry(JIS), RSk, R3z, Rmax, RPc, Rmr, Rku, RΔa, RΔq, Rδc, Ry, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, V0

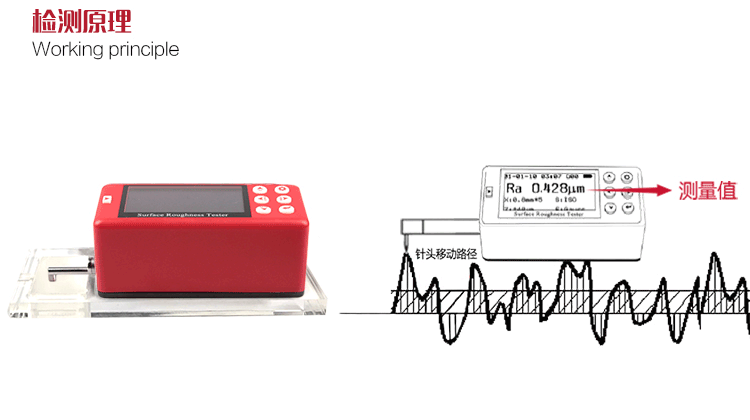

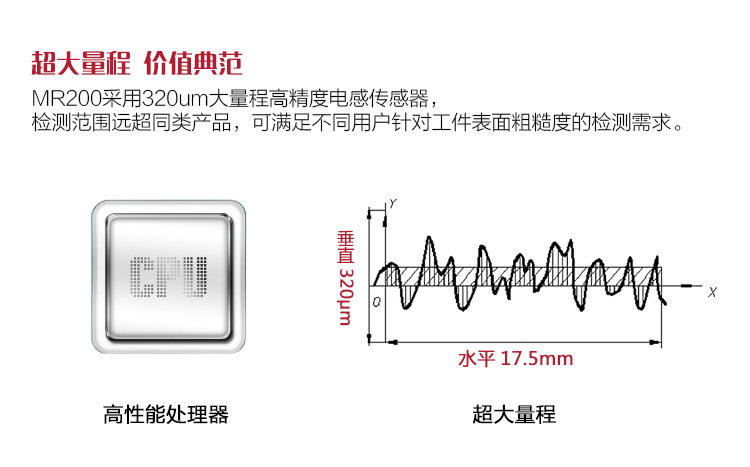

2. Adopt 320μm large-range high-precision inductive sensor

3. It has four filtering modes: RC, PC-RC, GAUSS, D-P

4. Compatible with ISO, DIN, ANSI, JIS four standards

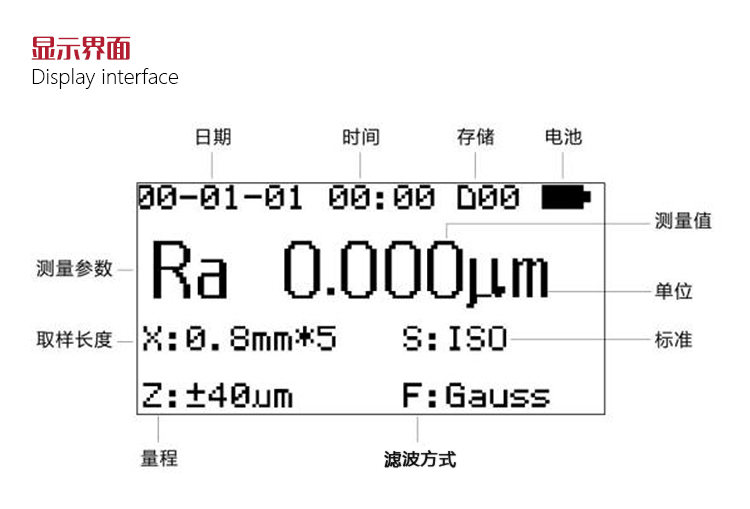

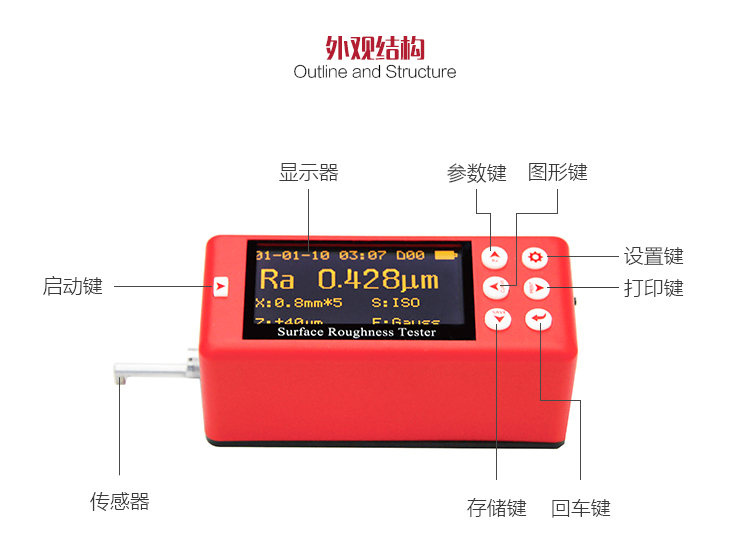

5. Adopt 2.7-inch large screen 128×64 dot matrix OLED display, noneIt needs to be backlit, no dead angles, and can display all parameters, outline graphics and Chinese and English menus

6. Use today's most mainstream chips for instrument control and data processing

7. The built-in memory can store the complete data of 20 groups of measurements

8. The external SD card can expand the massive storage data

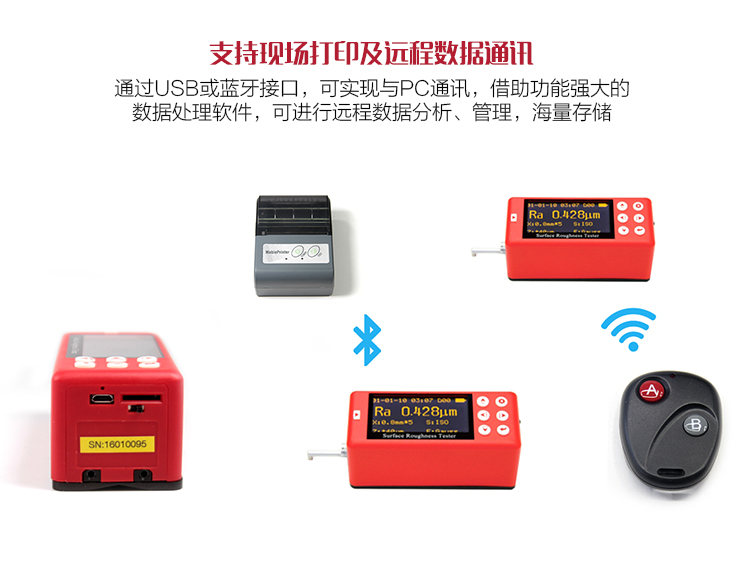

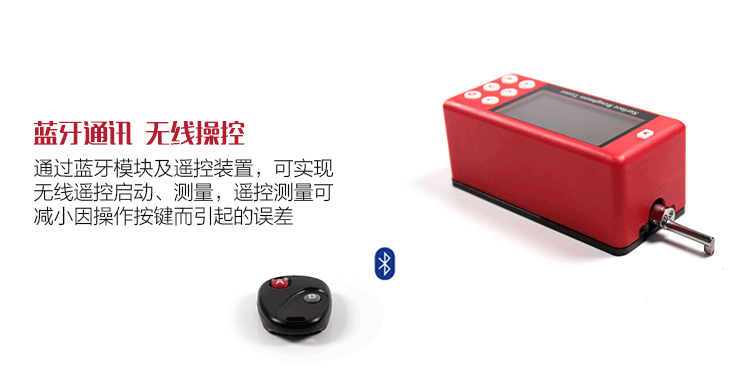

9. Built-in wireless remote control module, which can be measured remotely

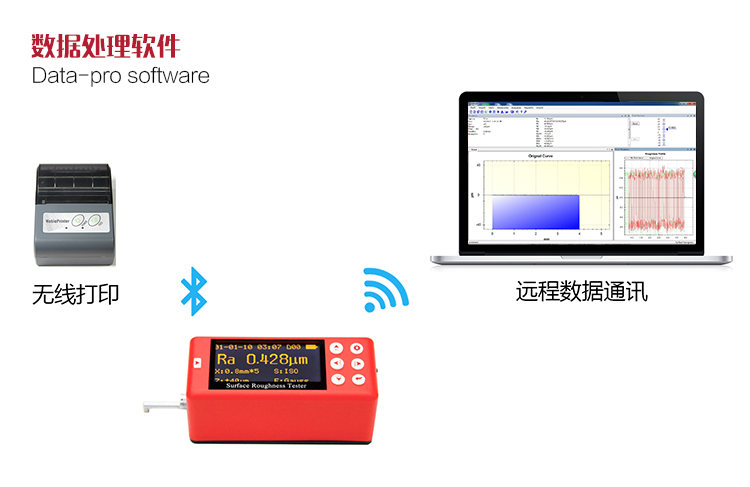

10. Built-in standard Bluetooth module, which can be wirelessly connected to a Bluetooth printer to print all parameters and outline graphics

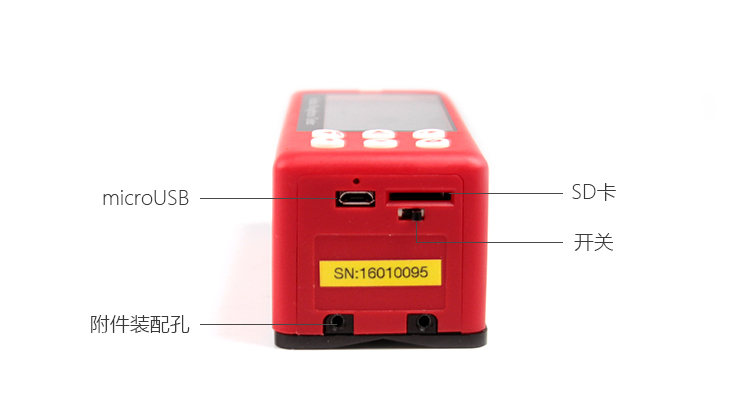

11. Built-in standard MICRO-USB interface, which can communicate with PC, and can use special software to analyze and manage the measurement results

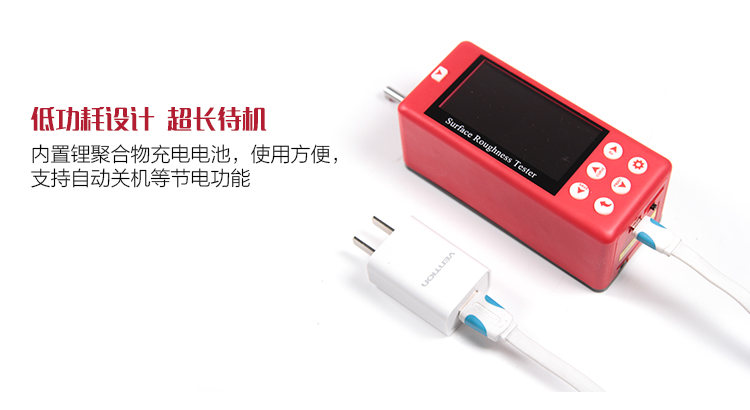

12. Built-in lithium polymer rechargeable battery and charging protection circuit

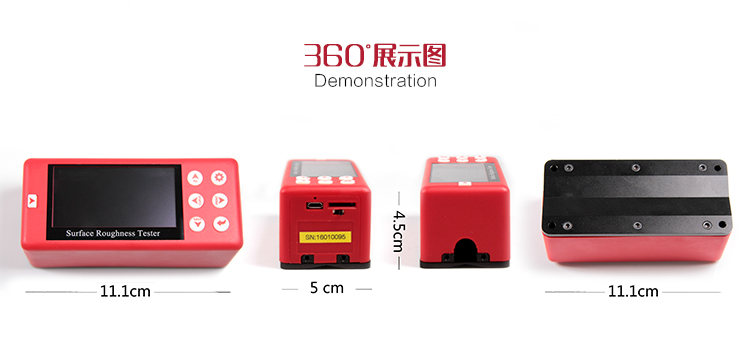

13、Mechatronics design, smaller size, easy to carry

14. It has the power-saving function of automatic shutdown, and there are prompt messages for each operation

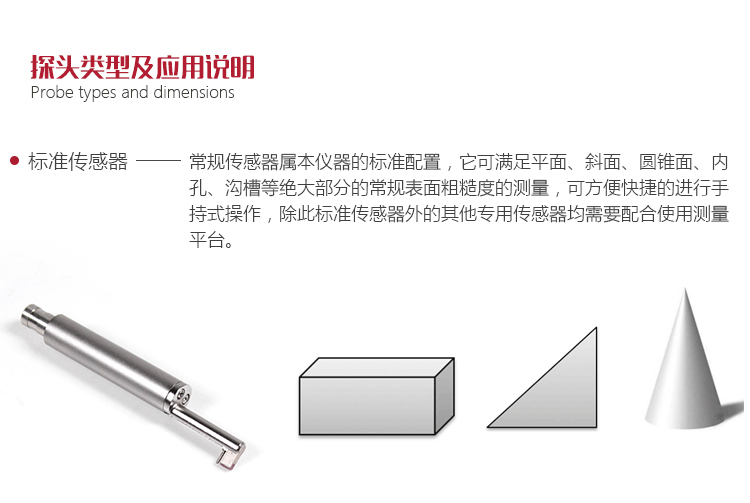

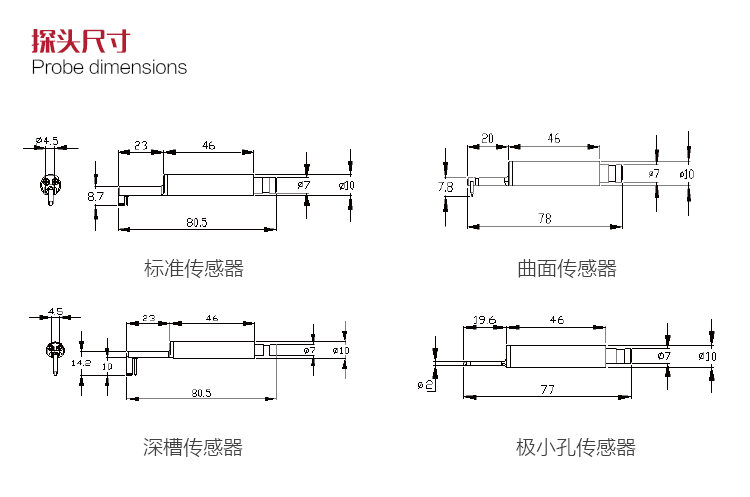

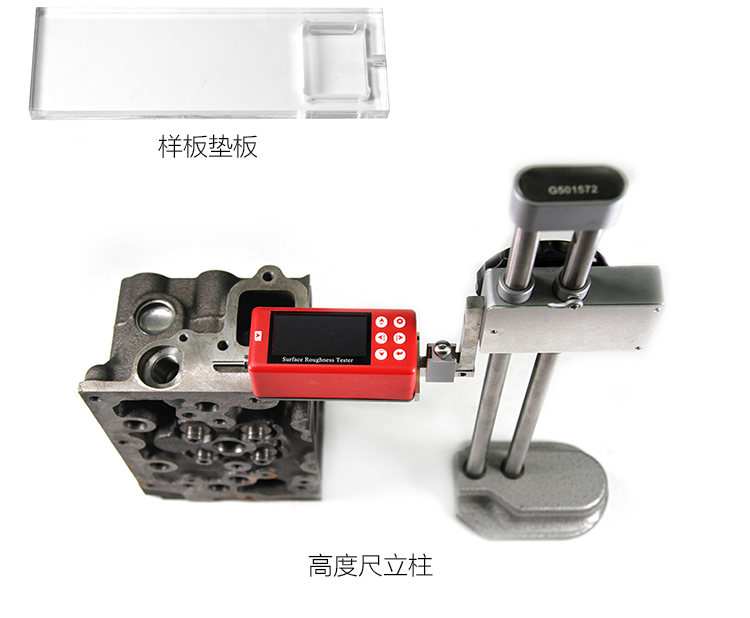

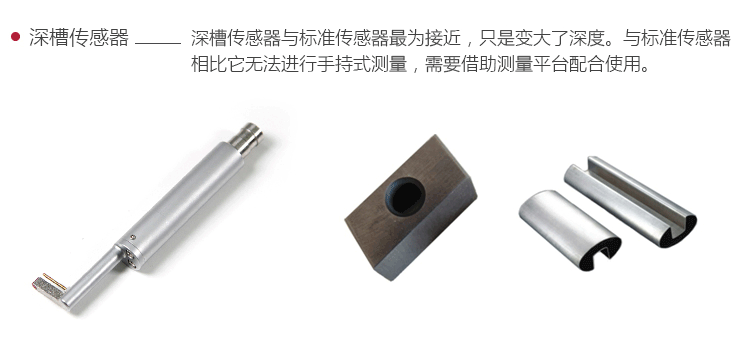

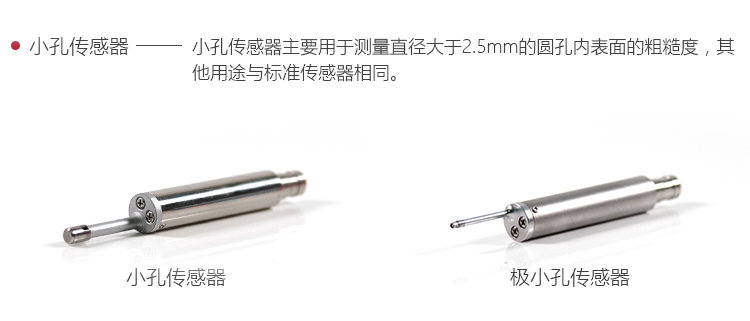

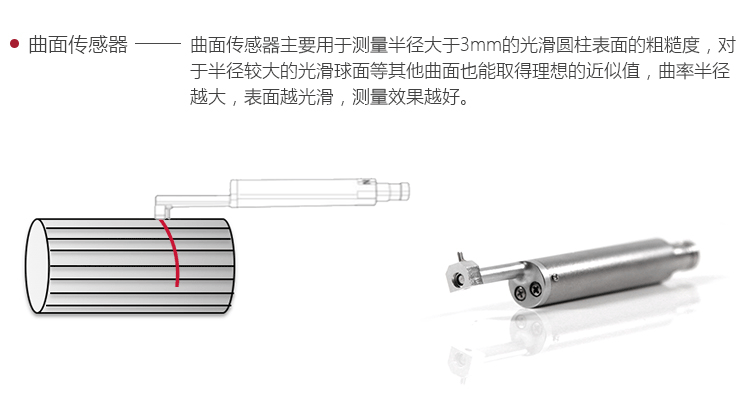

15. Complete accessories, optional curved surface sensor, deep groove sensor, small hole sensor, very small hole sensor, tooth surface sensor, small column, fine adjustment platform, extension rod, lateral adapter rod and other accessories

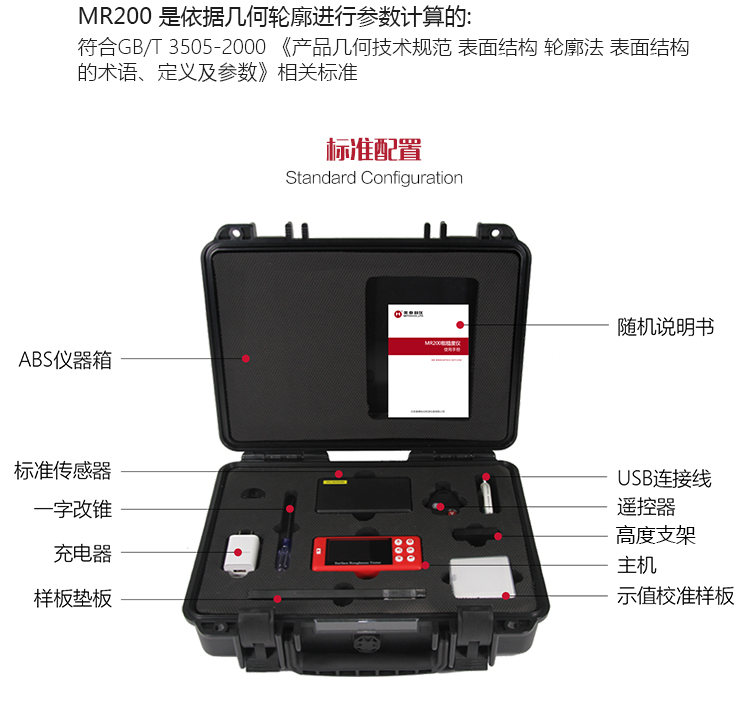

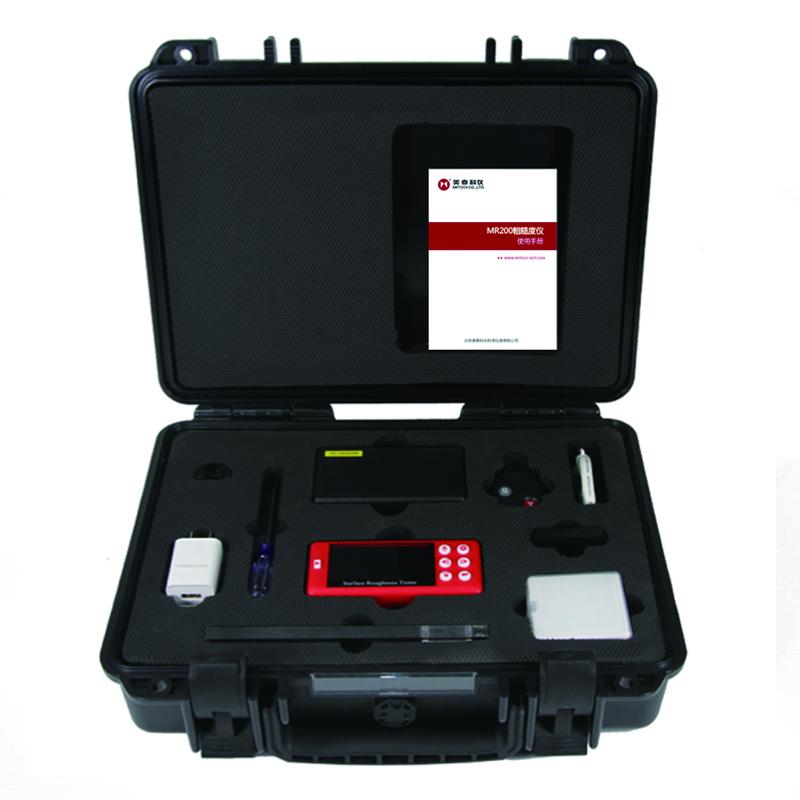

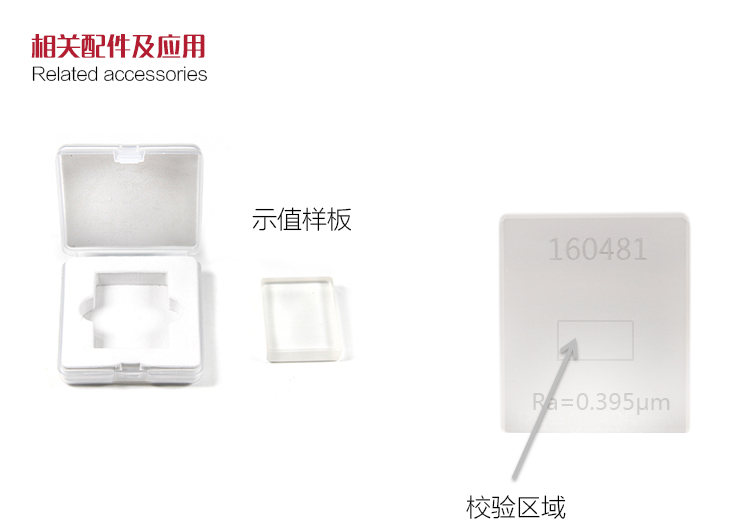

Packing list：Instrument host x1, Calibration plate x1, height bracket x1, remote control x1, USB cable x1, manual x1, standard Sensors x1, one-word screwdriver x1, charger x1, sample pad x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
