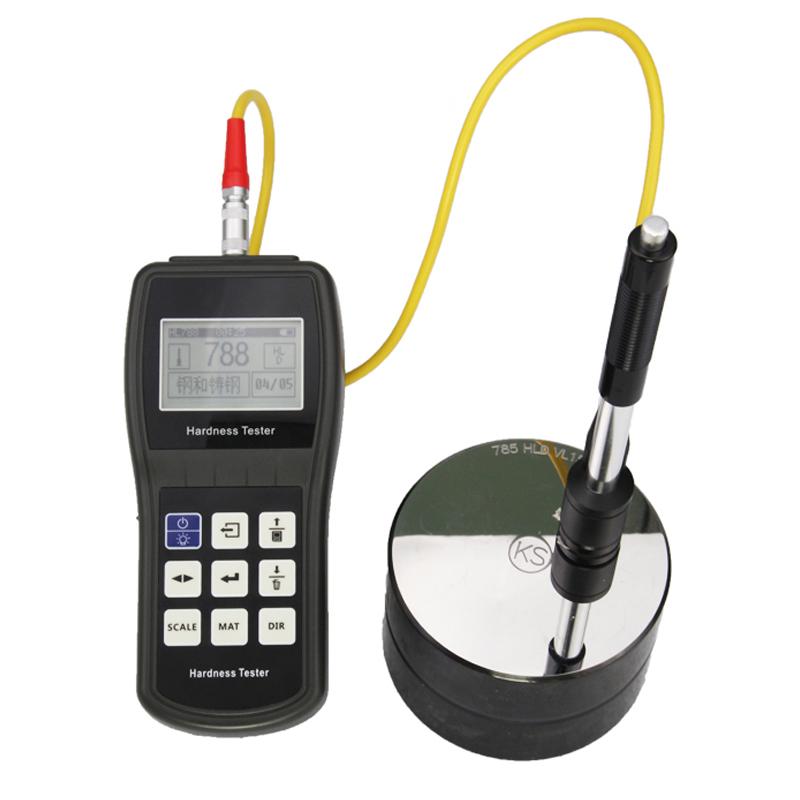

PRLH210 Leeb Hardness Tester Hardness range 170~960HLD

SE
The PRLH210 Leeb Hardness Tester is a portable Leeb Hardness Tester that can realize six kinds of Hardness conversion. The Hardness test range of PRLH210 is 170~960HLD and supports 360-degree direction measurement.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

Ipre PRLH210 Leeb Hardness TesterSPEC

Ipre PRLH210 Leeb Hardness TesterDetails

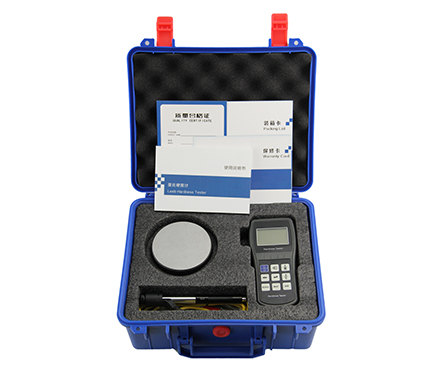

Ipre PRLH210 Leeb Hardness TesterPacking list

SKU
NB007831
Measuring range
170~960HLD
Hardness system
HL/HRC/HRB/HV/HB/HS
Error of indication
±6HLD (HLD=760±30)
Measurement direction
360º (vertical down, slope down, horizontal, slope up, vertical up)
Display
128 * 64 dot matrix LCD with backlight, adjustable contrast
data storage
Can store 100 sets of test data
Measurement material
Steel and cast steel, alloy tool steel, gray cast iron, ductile iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper
Power
3 × 1.5V AAA alkalinity battery
Weight
220G (standard configuration: host + D-type impact device)
Dimensions
155*77*35mm
Indication repeability
<6HLD (HLD=760±30)
PRLH210
Leeb Hardness Tester

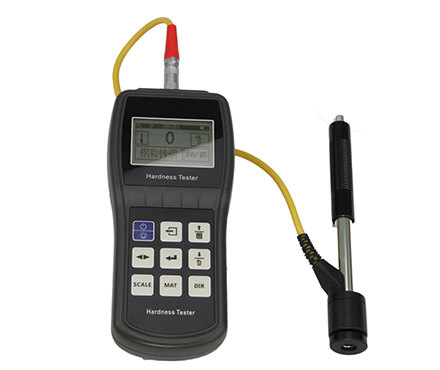

PRLH210 Leeb Hardness Tester Hardness range 170~960HLD Picture

Features

●Full Chinese display, menu operation.

●It can be equipped with 7 different impact devices, and can automatically identify the type of impact device.

●It can realize mutual conversion between 6 kinds of hardness (HL, HRB, HRC, HB, HV, HS) and mutual conversion with tensile strength

●Can support calibration under various hardness systems

●It can store 100 sets of measured values, with statistics, query and other functions;

●The upper and lower limits of the hardness value can be set in advance, and it will automatically alarm when it exceeds the limit, which is convenient for users to test in batches.

●Indication software calibration function.

Application

Zhongke PRLH210 Leeb Hardness Tester is widely used in molds, heat treatment, machining, pressure vessels, auto parts, aerospace and other industries, and is also suitable for universities, scientific research institutes, technical supervision, special inspection institutes, etc.

plan

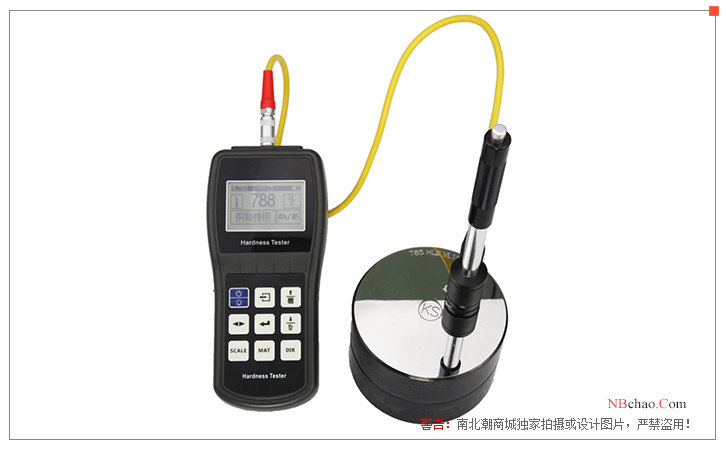

PRLH210 Leeb Hardness Tester Display


FAQ
QCan Hardness Tester be applied to JB/T9378?
A OK
