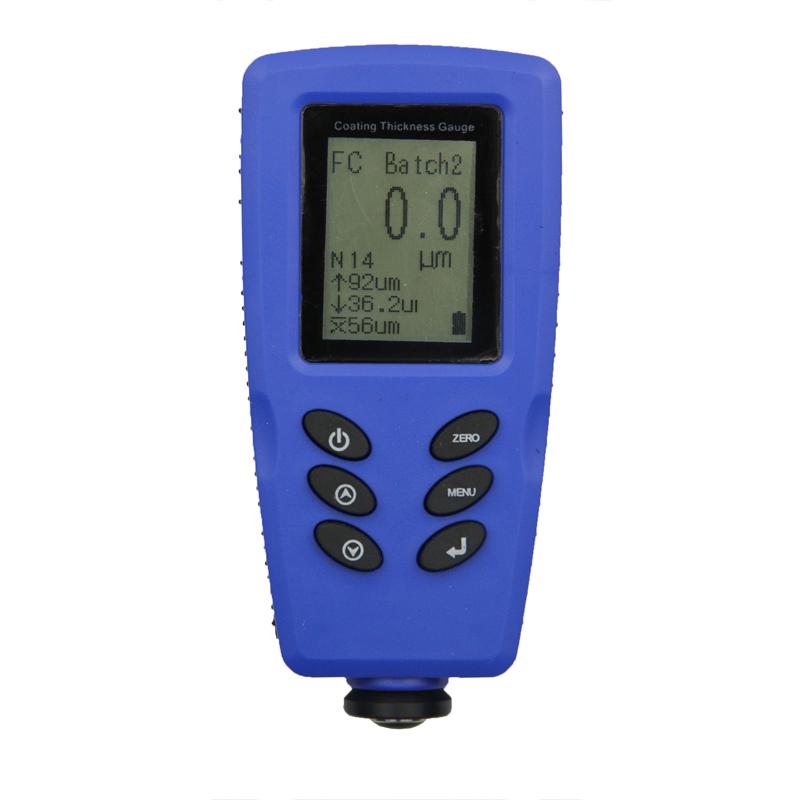

IPRE PRCT110 paints thickness Tester magnetic eddy current dual function

PRCT110

Coating Thickness Gauge

Features

1. The paint thickness Detector of the PRCT110 of Tek Rui adopts two thickness measurement methods, magnetic and eddy current, which can nondestructively measure the thickness of the non-magnetic covering layer (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.) and the thickness of the non-conductive covering layer (such as rubber, paint, plastic, anodized film, etc.) on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.);

2. All Chinese menu automatically identifies metal substrates;

3. Automatic selection of measurement method - magnetic method or eddy current method;

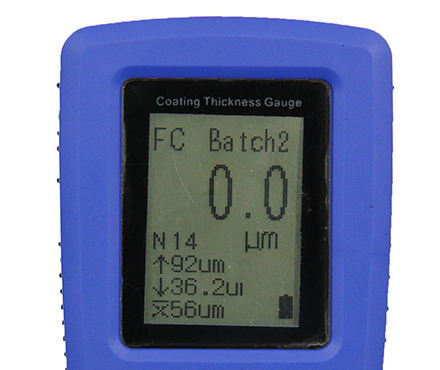

4. Large dot matrix LCD screen, standardized menu operation;

5. Two measurement modes: Single and Continuous;

6. Real-time display of the current working group statistics: Mean, Min, Max, Sdev;

7. Adopt integrated probe.

Scope of application

PRCT110 paint thickness TesterIt is widely used in metal processing, chemical industry, commodity inspection, electroplating, spraying, pipeline anti-corrosion, aluminum profile, steel structure and other industries, and is also suitable for shipbuilding, aerospace, electric power, pot special inspection, technical supervision bureau and other industries.

Pictures

Packing list：host x1, probe x1, standard test piece x1, manual x1, certificate x1, printer x1, base x1, battery x3, warranty card x1, packing list x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
