XIONGFA XF-120SL solid-liquid dual-use Density Meter measurement range 0.001~ 120g

XF-120SL

Solid-liquid dual-use Density Meter

The use of Archimedes buoyancy method, high accuracy and easy operation, suitable for a variety of samples. Its large-capacity sink design and RS-232 interface facilitate field testing and data transmission. The device has temperature and solution compensation functions to support fast and continuous testing

Introduction

Xiongfa XF-120SL solid-liquid dual-purpose density meter is a density measuring instrument for solid-liquid dual-purpose. It applies Archimedes' principle, durable, fine workmanship, stable performance, simple and fast operation, and can read the density value instantly. Designed in strict accordance with the standard operating specifications of various countries, it is a good choice for quality management in various industries and laboratory specific gravity and density testing.

Features

Solid Features

1. Directly read the density value and volume value of any shape whose density is greater than one or less than that of a block, particle or floating body .

2. Simple operation, high precision and good repeatability .

3. Temperature compensation setting and solution compensation setting can be set, more humanized operation, more in line with the needs of on-site operations.

4. With RS-232C computer interface, it can be easily printed.

5. It adopts the one-piece large Water Tank design (length, width and height 150*100*70mm), which can measure the density of relatively large block objects.

6. The density accessories are integrally injection molded, durable, not easy to break, and more convenient to operate.

7. Equipped with a Wind Shield, it is more suitable for on-site testing .

Liquid Features

1. The operation is in place in one step, which is convenient for multiple continuous and rapid tests.

2. Any solution can be quickly measured

3. Digital display, high measurement accuracy, easy operation, stable and durable.

4. It is convenient to take samples, only 50ml is needed for the tested samples.

5. The measuring cup is easy to clean, not limited by the small diameter of the specific gravity bottle, and can be used repeatedly. Disposable measuring cups are also available.

6. There is no cumbersome debugging and operation of Webster's balance method and pycnometer method.

7. With RS-232C communication interface, it is convenient to connect PC and printer, you can choose XF-68 printer to print measurement data .

8. Equipped with a Wind Shield, it is more suitable for on-site testing .

Application

XF-120SL solid-liquid dual-purpose density meter is widely used in rubber, plastic, pipe, plate, wire and cable, hard alloy, polyurethane, thermal insulation material, refractory material, solid plate, PE particles, new material, solid profile, foam material , rubber particles, sponge, foam, ceramics, powder metallurgy, rocks, plastic particles, EVA materials, PU foam, plastic composite materials, polymer materials, graphite materials, glass products, flux, colloidal body, oily body, Density of crude oil, high viscosity, suspension, emulsion, colloid, etc.

Standards

Solid mode: according to GB/T533, ISO2781, ASTMD297-93, DIN 53479, ASTMD792, D618, D891, ISO1183, GB/T1033, ASTM D792-00, JISK6530, ASTM D792-00 , JISK6530 standards . Using Archimedes principle buoyancy method, accurate direct reading measurement value.

Liquid mode: according to GB/T5526, 13531, 15223, 5009, JIS, ISO specifications. Apply Archimedes' buoyancy method and water displacement method to quickly and directly read out the liquid density/concentration value.

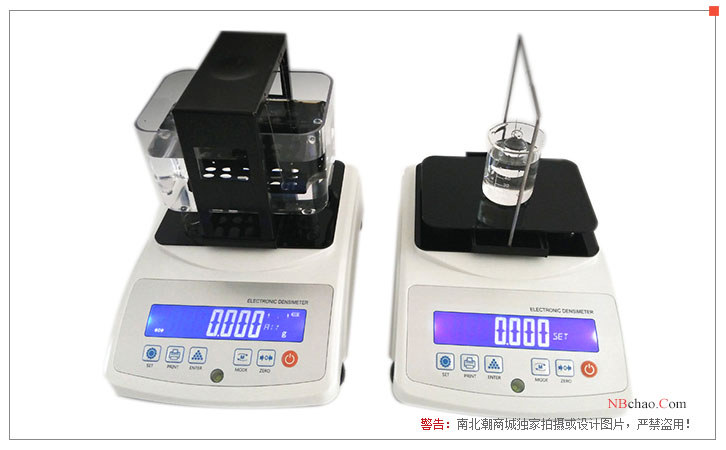

Pictures

Packing list：Host x1, sink x1, measurement table x1, forceps x1, a set of particle measurement accessories, weight x1, a set of floating body accessories, power transformer x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
