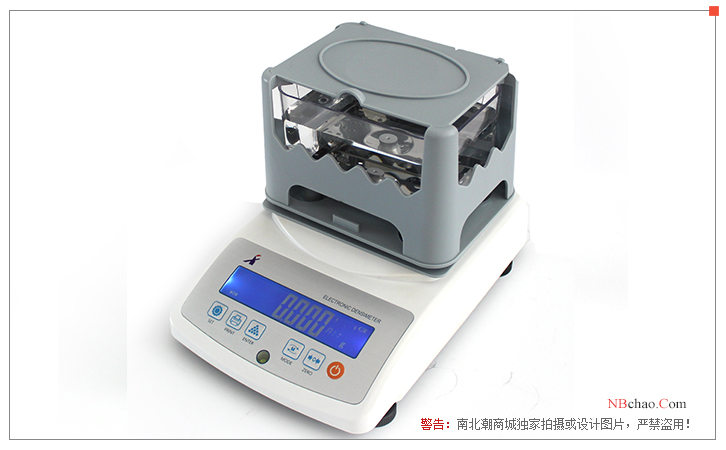

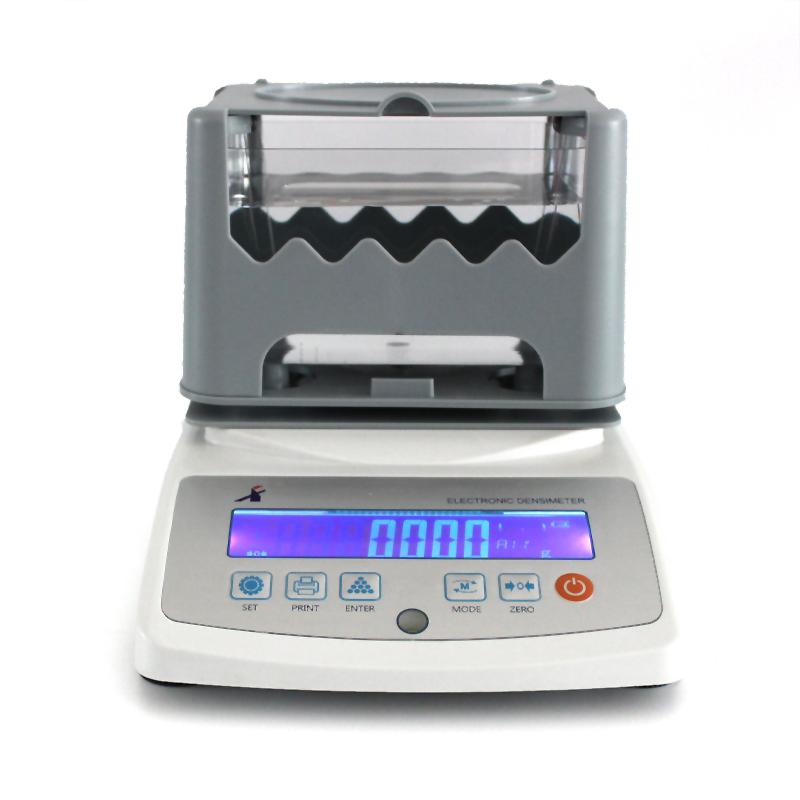

XIONGFA MDJ-900A Solid Density Meter measurement range 0.01g~ 900g

MDJ-900A

Solid Density Meter

Direct reading Density and volume of solid blocks, particles, and floating bodies with Density > 1 or < 1 in any shape. 0.01g~ 900g weight measurement range, 0.01g/cm3 Density accuracy

Introduction

Xiongfa MDJ-900A solid density meter adopts the original imported sensor from HBM, Germany, and cooperates with the density components independently produced by Xiongfa to quickly test the density and volume of various solids! Easy to operate and fast!

Features

1. Directly read the density and volume of any solid block, particle, or floating body with a density > 1 or < 1.

2. It has the functions of temperature compensation setting and solution compensation setting, more humanized operation, and more in line with the needs of on-site operations.

3. The density measuring table is integrally formed by injection molding, which is convenient and quick to install and has a longer service life.

4. It adopts the one-piece corrosion-resistant large Water Tank design to reduce the error caused by the buoyancy of the hanging fence line, and it is also convenient to test relatively large block objects.

5. It has the functions of upper and lower limits of density, which can determine whether the specific gravity of the object to be tested is qualified or not, and is equipped with a buzzer device.

6. With RS-232C computer interface, it can be easily connected to PC and printer.

7. Built-in battery, equipped with Wind Shield, more suitable for on-site testing.

8. Optional liquid accessories, you can test the density and concentration of the liquid.

Application

Rubber, plastic, wire and cable, electrical appliances, sports equipment, tires, glass products, hard alloys, powder metallurgy, magnetic materials, seals, ceramics, sponges, EVA materials, foam materials, alloy materials, friction materials, new Materials research, battery materials, research laboratories.

Product principle

MDJ-900A solid density meter complies with the standards ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, ISO2781, ASTMD297-93, DIN 53479, D618, D891, ASTM D792-00, JISK6530, ASTM D792-00, JISK6530… and other standard specifications.

Pictures

Packing list：Host x1, sink x1, measurement table x1, forceps x1, power transformer x1, 100g weight x1, windproof dust cover x1, a set of particle measurement accessories, a set of float measurement accessories x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
