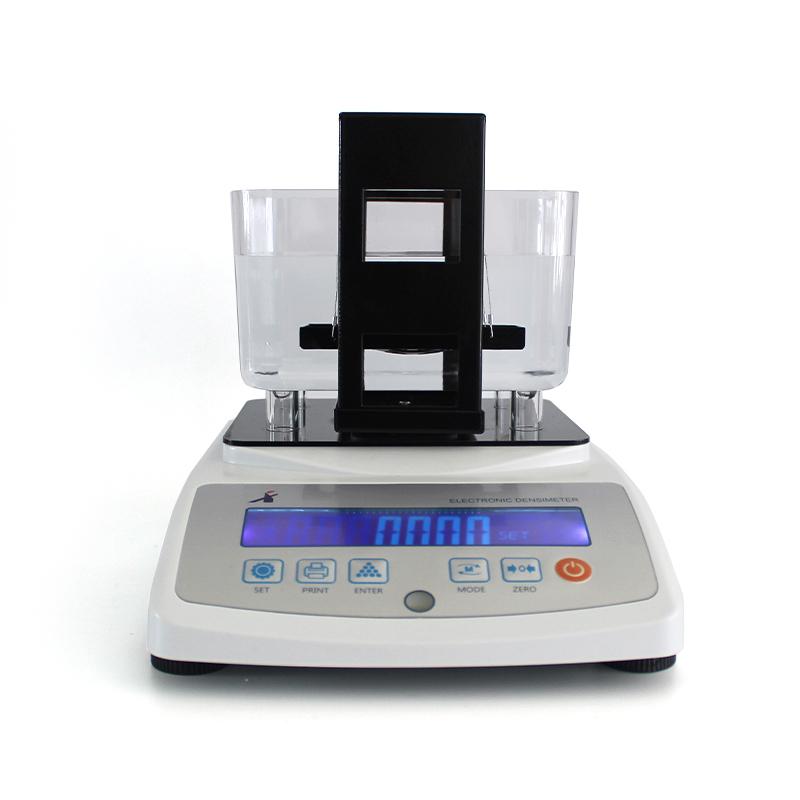

XIONGFA XF-200S Solid Density Meter Precision Density Analyzer 0.001g~ 200g

XF-200S

Solid Density Meter

Weighing range 0.001~ 200g, Density accuracy 0.0001g/cm ³, Density measurement range 0.0001~ 99.9999g/cm ³, test time about 5 seconds, measurement types Solid, granular, film, floating body, the results show Density, volume

Introduction

Xiongfa XF-200S solid density meter adopts the original imported sensor from German HBM, cooperates with Xiongfa's self-produced one-piece aluminum alloy measuring table and transparent Water Tank, which makes the operation easier, faster and more in line with the new material laboratory operation specifications ; It can determine whether the object to be tested is qualified or not, can prompt an alarm, and quickly test the density and volume of various solids.

Features

1. Directly read the density and volume of any solid block, particle, or floating body with a density > 1 or < 1.

2. It has the functions of temperature compensation setting and solution compensation setting, and can use water or other liquids as the medium.

3. The Free Flip lid-free operation mode makes the operation easier, faster, and more in line with the new material laboratory operating specifications.

4. It adopts a one-piece large-capacity PC material sink (dimensions: length 15.3 cm × width 10.7 cm × height 8.0 cm).

5. With the upper and lower limit functions of density, it can determine whether the specific gravity of the object to be tested is qualified or not. Equipped with buzzer device.

6. Fully automatic zero point tracking, buzzer alarm, overload alarm function.

7. With RS-232C computer interface, it can be easily connected to PC and printer.

8. Built-in battery, equipped with Wind Shield, more suitable for on-site testing.

9. Optional liquid accessories, you can test the density and concentration of the liquid.

Application

Rubber, plastic, wire and cable, electrical appliances, sports equipment, tires, glass products, hard alloys, powder metallurgy, magnetic materials, seals, ceramics, sponges, EVA materials, foam materials, alloy materials, friction materials, new Materials research, battery materials, research laboratories.

Standards

According to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, ISO2781, ASTMD297-93, DIN 53479, D618,D891, ASTM D792-00, JISK6530, JISK6251-1983, ASTM D792-00, JISK6530… and other standard specifications.

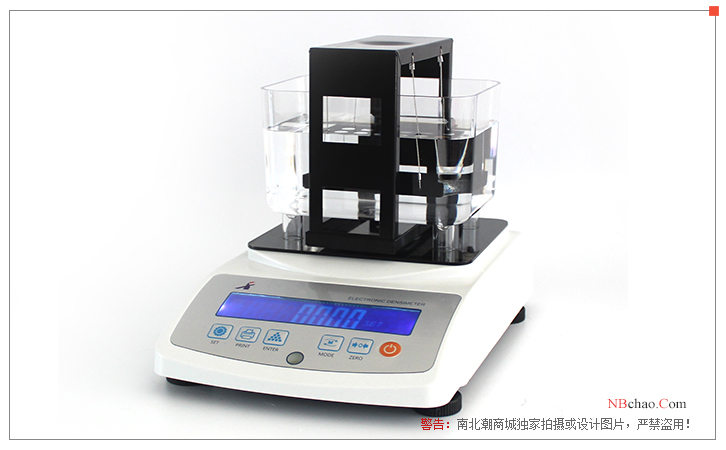

Pictures

Packing list：Host x1, sink x1, measurement table x1, forceps x1, power transformer x1, 100g weight x1, windproof dust cover x1, a set of particle measurement accessories, a set of float measurement accessories x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
