NIRUN HADV-2 + Pro Digital Viscometer Measurement range 40-80 million cP

Digital display, Measurement range 40~80000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Control system Microcomputer, software system data collection, programming, analysis, temperature sensor PT100 temperature sensor, Encasement aluminum alloy, Rotation speed Control mode continuously variable speed (no gear drive).
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

NiRun HADV-2+Pro Digital ViscometerSPEC

NiRun HADV-2+Pro Digital ViscometerDetails

NiRun HADV-2+Pro Digital ViscometerPacking list

SKU
NB008757
Display mode
digital explicit
Measurement range
40~80000000mPa·s
Rotor specification
2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional)
Rotor speed
0.1~200rpm
reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
AC100-240V，50Hz/60Hz，DC17V1.2A
Interface
RS232
Weight
7kg
Capacity
600Ml beaker or optional small sample adapter
Encasement material
Five-layer cardboard
collection method
continuous acquisition
Capacity
300~600ml
Capacity
400 or 800ml (self-matching)
Lifting system
Metal lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, programming, analysis
temperature sensor
PT100 temperature sensor
Encasement
aluminum alloy
Rotation speed Control mode
Continuously variable speed (without gear drive)
HADV-2+Pro
Digital Viscometer
Digital display, Measurement range 40~80000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Control system Microcomputer, software system data collection, programming, analysis, temperature sensor PT100 temperature sensor, Encasement aluminum alloy, Rotation speed Control mode continuously variable speed (no gear drive).

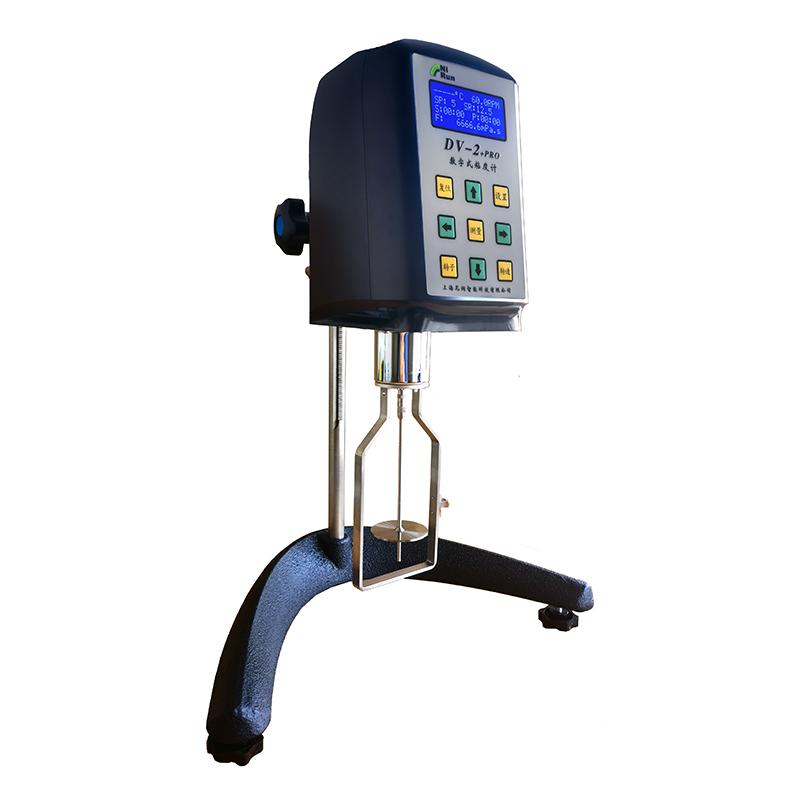

NIRUN HADV-2 + Pro Digital Viscometer Measurement range 40-80 million cP Picture

Features

  • Optional DV data acquisition and programmable software measures rheological properties

  • Displays the shear rate and shear stress

  • The stepper motor is directly driven, gearless and the speed is accurate

  • The LCD LCD has a blue backlight and displays a large amount of information

  • The maximum viscosity value that can be measured by the rotor at the current speed is displayed.

  • The viscosity value shows a continuous variation

  • When the measurement range is out, there is an alarm sound

  • An RTD temperature probe is standard

  • Bidirectional RS232 or 485 interface as standard

  • Computerized full-scale linear correction

  • AC power adapter 100V-240V, good anti-interference

Application

HADV-2+Pro digital viscometer is widely usedInks, glues、latex、Solvent-based adhesives、Polymer solution、petroleum、Paints and coatings、solvent、cosmetics、Milk products、*product、juices and much more.

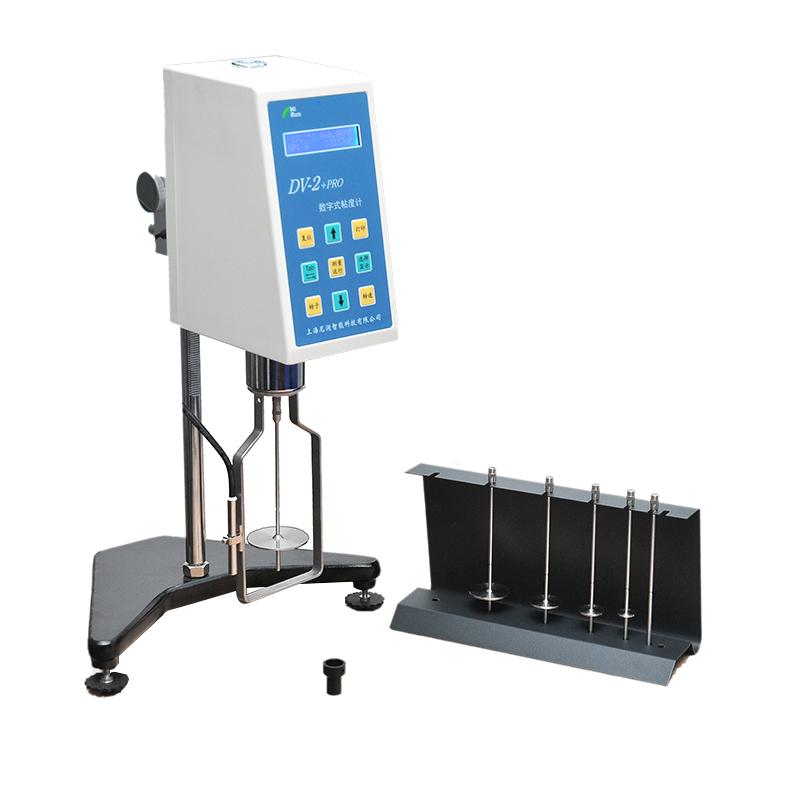

Product display diagram

Nirun HADV-2+Pro digital viscometer display diagram

Optional

DV data acquisition and program-controlled analysis software

Dedicated viscosity measurement thermostatic sink

Ultra-low viscosity adapters

Small sample adapters

Standard solutions

Micro printers

Externally recirculating glass beaker

Comparison of DV parameters

ModelMeasuring range (mPa.s)Rotor speed
LDVRDVHADVHBDV
DV-1+PRO1-2 million100-13 million200-26 million800-1040000000.3-100
DV-2+PRO1-6 million100-40 million200-80 million800-3200000.1-200
DV-3+PRO1-6 million20-40 million100-80 million500-3200000.1-250
DV-E1-2 million100-13 million200-26 million800-1040000000.3-100
Unit: mPa.s, revolutions per minute
Other parameters
Number of rotorsLDV (4 rotors 1, 2, 3, and 4) (rotor 0 is optional)
RDV, HADV, HBDV (6 rotors 2, 3, 4, 5, 6, 7) (0, 1 rotors are optional)
Measurement accuracy±1.0% (full scale)
repeatability0.50%


FAQ
QWhat is the sample volume per test for the HADV-2 + Pro rotational viscometer?
A Hello, the test sample volume of this Viscometer is 300~ 600ml.
QIs this digital Viscometer compliant with ISO 12634?
A This digital Viscometer is suitable for ISO12634, please consult customer service for detailed application definition
QShanghai Nirun HADV-2 + Pro Digital Viscometer with which rotor?
A Hello, HADV-2 + Pro, this Viscometer can be matched with 2/3/4/5/6/7 #of these 6 rotors (1 #can also be matched, but it is not standard and needs to be purchased separately)
