RUNJIE CDX-3 Magnetic Particle Flaw Detector Portable nondestructive testing instrument

CDX-3

Magnetic Particle Flaw Detector

Adopting the principle of magnetic field magnetization workpiece design, lifting force up to 7.5Kg, equipped with 3W LED lighting, adjustable movable joints, suitable for nondestructive testing of various shapes of workpieces.

Introduction

Runjietiandi CDX-3 yoke-type magnetic particle flaw Detector is a special instrument for small portable nondestructive testing. It is a small nondestructive testing instrument designed based on the principle of magnetic field magnetization of the workpiece. Stable and easy to operate and many other features.

CDX-3 yoke magnetic particle flaw Detector uses a coil directly wound on the probe to generate an induced magnetic field to magnetize the workpiece. It has the characteristics of small size, light weight, large lifting force and adjustable movable joints. It is suitable for flaw detection of plane welds, fillet welds, steel pipes, pressure vessels, pipes, shafts and parts with complex shapes.

CDX-3 yoke magnetic particle flaw Detector is equipped with LED lighting, which is very convenient for customers to use; it is characterized by high brightness, long life and easy replacement. It is a technological innovation of portable magnetic particle flaw Detector.

Structural features

1. The accessory power cable is a three-core cable. One end is inserted into the probe through a circular three-core aviation plug, and the other end is connected to an AC ~ 220V socket.

2. The supporting probe is made of high-strength insulating material, and after passing the inspection, it is connected with epoxy resin glue to achieve sealing and insulation, not easy to be damaged, and comfortable to operate;

3. There are movable joints on the probe, which can be used by users on specific workpieces; the two sides of the planar yoke can also be used, depending on the shape of the magnetized workpiece.

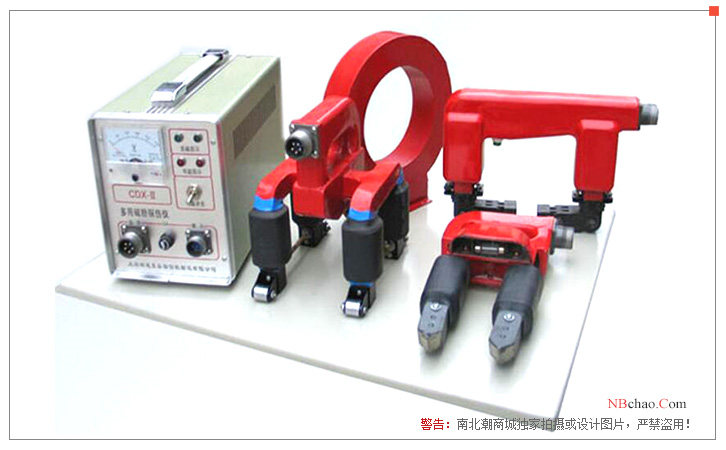

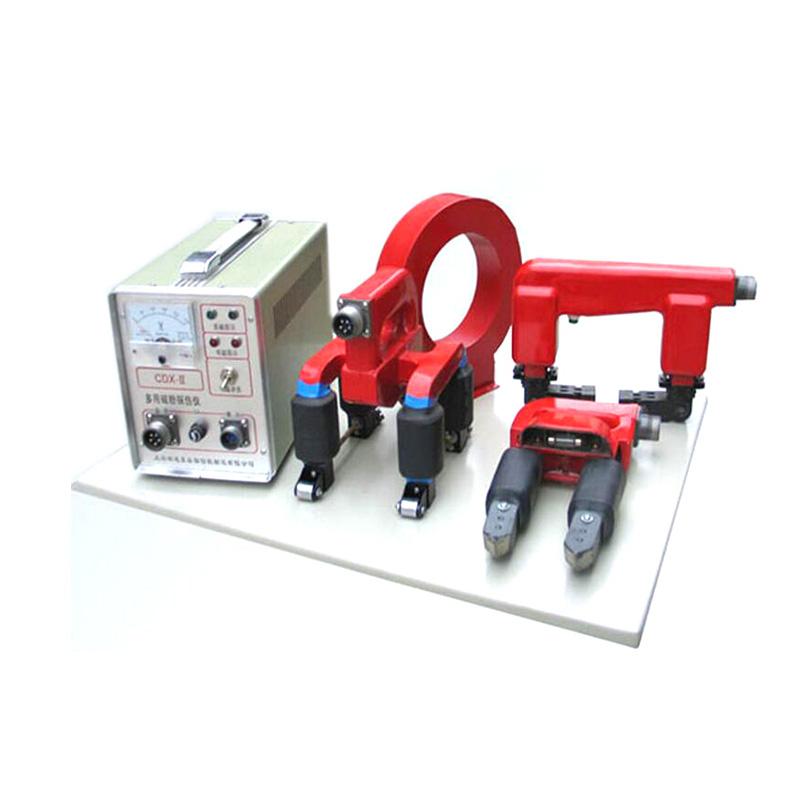

Pictures

Packing list：host x1, manual x1, warranty card x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
