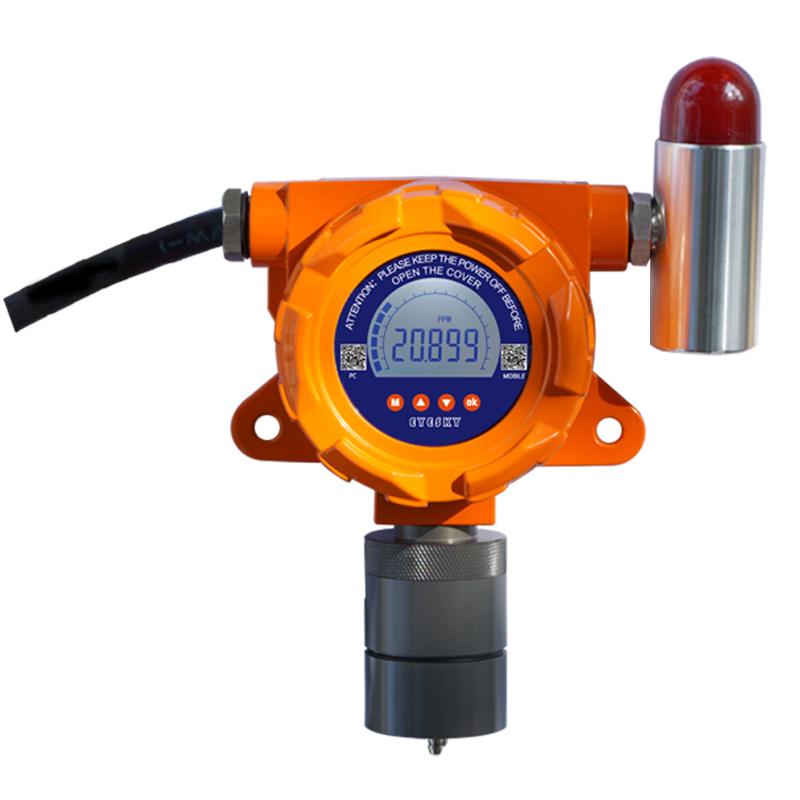

EYESKY ES10B11-O3 Fixed ozone Detector 0~10ppm
ES10B11-O3
EYESKY ES10B11-O3 Fixed ozone DetectorSPEC
EYESKY ES10B11-O3 Fixed ozone DetectorDetails
EYESKY ES10B11-O3 Fixed ozone DetectorPacking list
- SKU
- NB009206
- Detect gas
- Ozone O3
- Sensors principle
- electrochemistry
- Sampling method
- diffusion
- Range
- 0~10PPm
- resolution
- 0.01PPm
- detection Accuracy
- ≤ +/- 3% (Actual concentration, higher Accuracy required according to Sensors performance)
- Operation mode
- Infrared remote control for remote and close operation, easy to set up
- Repeatability
- ≤±1%
- Zero drift
- ≤ +/- 1% (F. S/year)
- Response time
- ≤25s(T90)
- recovery time
- ≤20s
- Explosion-proof sign
- Exd II CT6
- Protection level
- IP66
- Output signal
- Users can be determined according to the actual site environment needs, up to 2000 meters (single core 1mm2 Shielding cable)
- main material
- Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (316 stainless steel shell is optional)
- Installation method
- Wall-mounted, pipeline type
- Operating temperature
- -30~60℃
- Environmental humidity
- ≤ 95% RH, no condensation (Humidity > 90% RH, condensation can be equipped with Filter)
- Relative Humidity
- 10%~95%RH
- Power Supply
- 24VDC (Normal Operating Voltage range 12~ 30VDC)
- power consumption
- 1.5W
- Operating Pressure
- ≤200Kpa
- Dimension
- 180*140*92mm
- Weight
- About 1.6Kg
- execution standard
- GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010

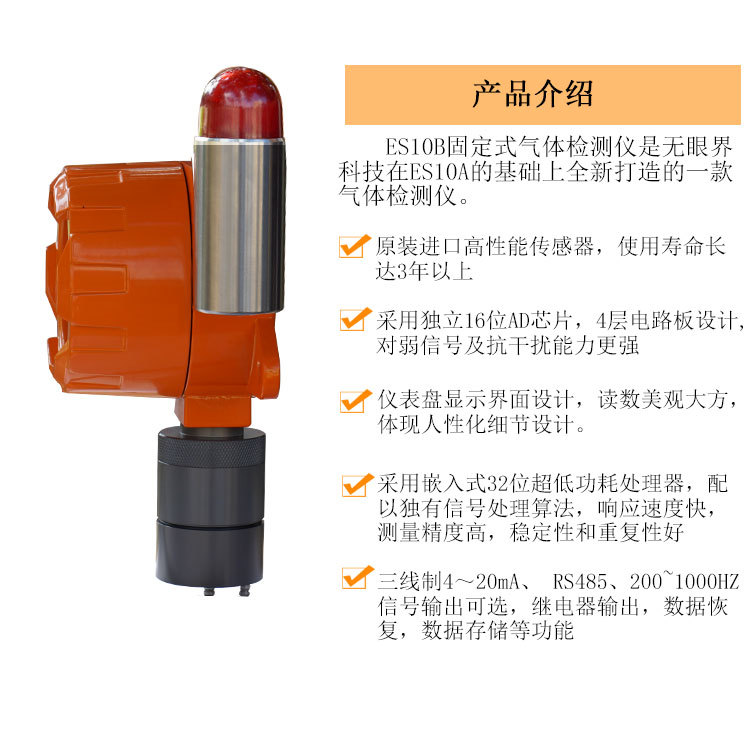

Introduction

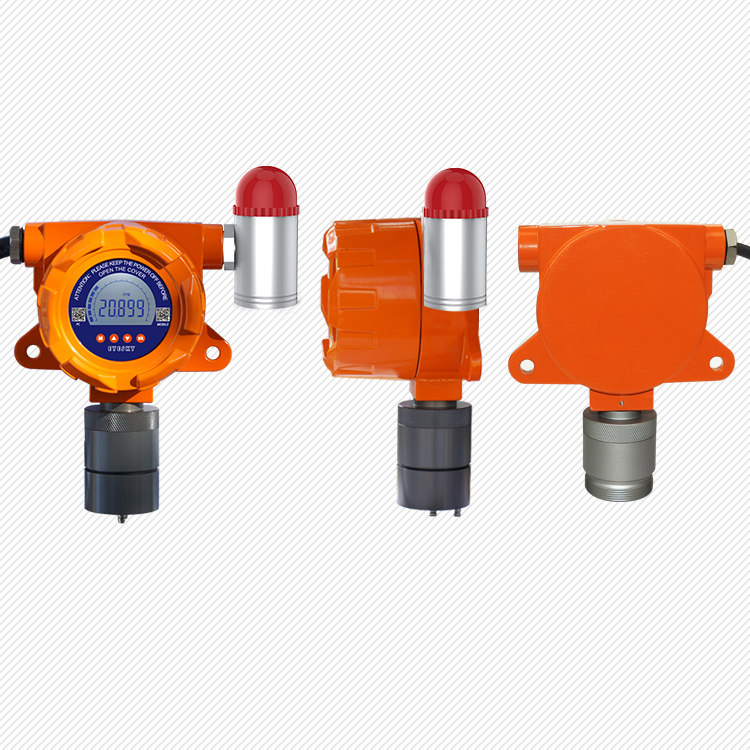

Visionless ES10B11-O3 fixed ozone Detector is a new one created by Visionless Technology on the basis of ES10AGas Detector, using original imported sensors and new ones32-bit low-power processor; Dashboard display boundarysurface, the value and the progress bar are displayed at the same time, which is beautiful and generous; Circuit adoption4 layers of wiring, against weak signals and anti-dryingDisturbance is stronger; Independent high-precision imported 16-bit AD chip and signal processing algorithm to measure data accuracyHigher and more stable;4~20mA, RS485, 200~1000Hz output signals can be selected, easy to accessAlarm controllers,PLC, DCS and other control systems; Explosion-proof structures are designed to be used in a variety of hazardous industriesLocation; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.
Features

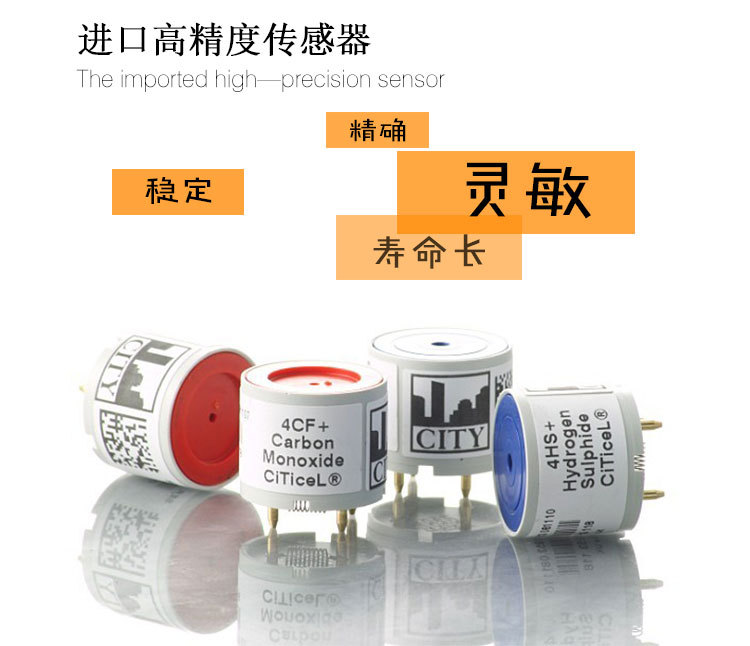

◆ Imported high-performance sensor, high measurement accuracy, good repeatability and long service life;
◆ Independent 16-bit AD chip, 4-layer circuit board design, stronger ability to weak signal and anti-interference;

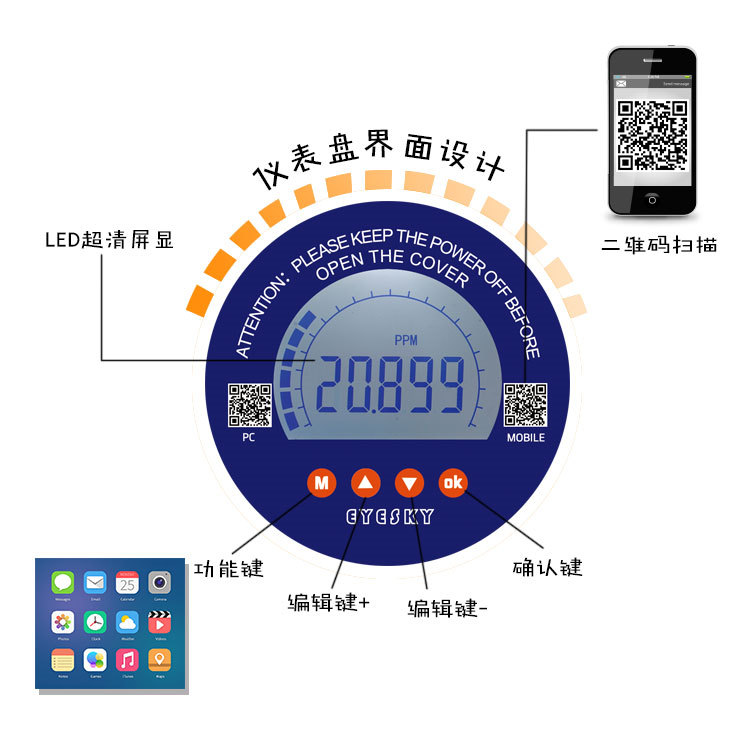

◆ The dashboard display interface is designed, the reading is beautiful and generous, and the humanized detail design is reflected;

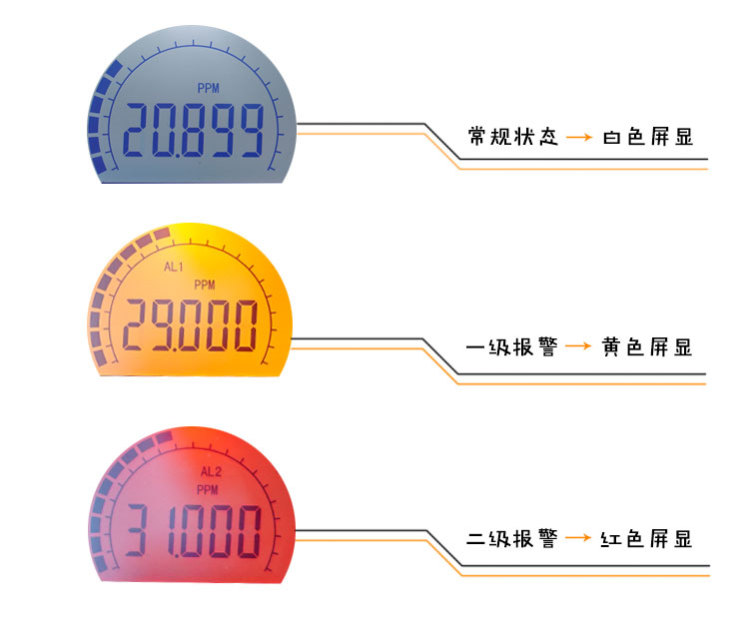

◆ White, orange and red backlight design, normal and alarm status indication, clear at a glance;
◆ mg/m3, ppm, VOL, LEL can be selected;
◆ Embedded 32-bit ultra-low power processor, with independent signal processing algorithm, fast response speed and stability;
◆ Automatic protection function against high-concentration gas impact, with factory reset to prevent misoperation;
◆ The instrument is equipped with infrared remote control, which can be operated by remote control, without opening the cover, which is simple and convenient;

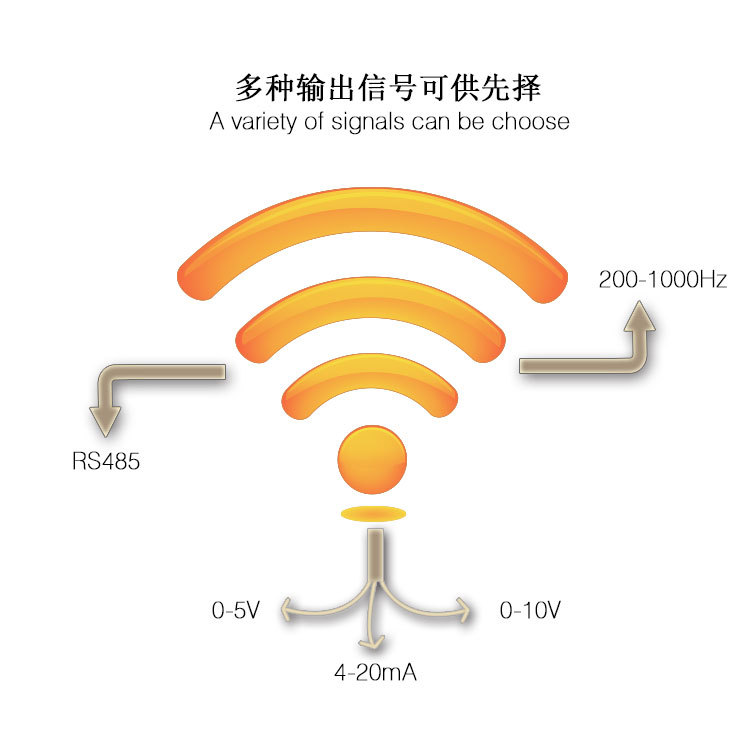

◆ Three-wire 4~20mA, RS485, 200~1000HZ signal output optional, relay output, data recovery, data storage and other functions;
◆ Two cable inlets, convenient for on-site installation;

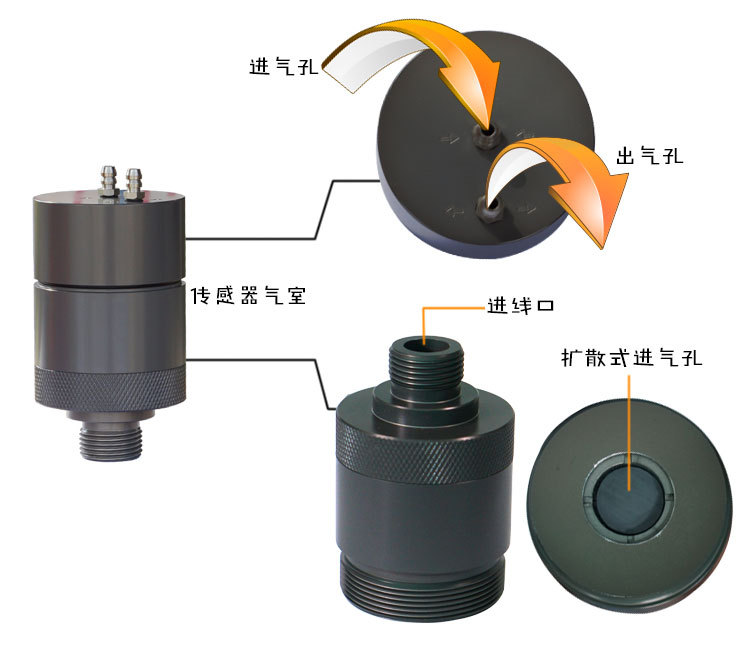

◆ Independent air chamber structure, easy sensor replacement, no need for on-site calibration;
◆ Very good mechanical design, the air chamber is made of high-strength aluminum profile of military quality, wear-resistant and corrosion-resistant, suitable for complex and harsh industrial environments, reasonable and scientific air chamber design, to ensure the accuracy of real-time monitoring of the sensor;
◆ The explosion-proof grade is Exd II CT6, which is certified by the National Explosion-proof Electrical Inspection Center.
