KOSON KS-71 integrated steel bar scanner, the measuring range is 1~ 185mm

KS-71

Integrated Rebar Scanner

product description

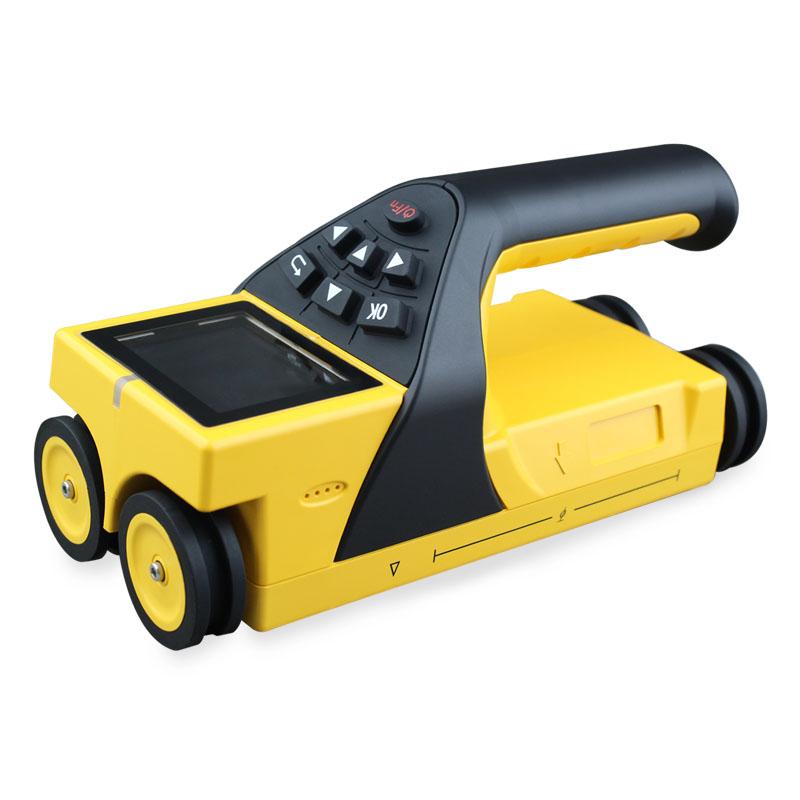

KOSON all-in-one steel bar scanner KS-71 is mainly used for testing the location of steel bars, cover thickness, steel bar spacing and steel bar diameter in concrete structures, and can accurately draw the distribution map of the overall steel bars and quickly provide high-precision detection data; the host and The integrated structure of the sensor is convenient and quick to carry and operate on site; the multi-coil structure design is adopted, which has faster speed, higher precision and stronger resolution.

Application

◆ Detection of steel bar position, steel bar distribution and direction, protective layer thickness and steel bar diameter in concrete structure engineering;

◆Construction quality acceptance testing of concrete structures of buildings;

◆ Detection and detection of steel bars in structures such as bridges and tunnels;

◆ Assess the safety and durability of structures under construction;

◆ Inspection of the amount of reinforcement when evaluating and transforming the old structure.

According to the standard

◆"Code for Construction Quality Acceptance of Concrete Structure Engineering" GB 50204-2015

◆"Technical Standards for Field Inspection of Concrete Structures" GBT50784-2013

◆ "Technical Regulations for the Detection of Steel Bars in Concrete" JGJ/T152-2008

◆"Technical Standards for Building Structure Inspection" GB/T50344-2004

◆ "Technical Regulations for Detection of Steel Bar Cover Thickness and Steel Bar Diameter by Electromagnetic Induction Method" DB11/T365-2006

◆ "Measurement and Calibration Specifications for Rebar Cover Thickness Measuring Instruments and Floor Slab Thickness Measuring Instruments" JJF1224-2009

Special feature

1. Each detection mode is intuitive and accurate, and accurately displays the location, spacing, and thickness of the protective layer on the same display screen;

2. Single-point measurement, grid scanning, waveform scanning, and profile scanning are all fully realized. During the measurement process, you can turn pages back and forth arbitrarily to view data and graphics, and go back at any time to delete incorrect test data, which is convenient for on-site testing.

3. JGJ detection mode realizes 1-6 repeated tests of a single steel bar, and automatically calculates the average value;

4. During the test process, the grid scan can completely realize the test of X-axis and Y-axis (that is, the direction of vertical and horizontal coordinate axes) and will not affect the test data;

5. After random switching, the data and reinforcement distribution diagram will automatically continue the previous information for testing, thereby improving the flexibility of on-site testing.

6. It adopts one-hand grip, operation design and four-wheel positioning method, equipped with high-strength wear-resistant tires, which is convenient to protect the instrument from wear and tear

7. Automatic storage of calibration values is used to achieve rapid measurement and reduce the troublesome procedures of each calibration work before testing.

main feature

• 2.8-inch high-resolution color LCD (320×240 pixels), the detection data can be clearly seen in any situation indoors or outdoors;

• Multi-coil structure design, faster speed, higher precision and stronger resolution;

• Using USB mode for data transmission and charging, you can quickly upload the stored data to the computer through the USB cable;

• Built-in large-capacity lithium battery, designed with low power consumption, can stand by for about 16 hours when the battery is fully charged;

• In the data management mode, data storage, viewing, deletion and other functions can store about 200,000 steel bar measurement points;

• Adopt ultra-dense rebar resolution ability to solve the problem of missed judgment of rebar;

• It can be configured with professional and uniquely designed standard calibration test blocks;

• It adopts an integrated design of the host and the sensor coil, which is small in size, light in weight, and easy to carry;

• The middle position of adjacent steel bars can be judged in real time, and the indicator light prompts, which can avoid the surrounding steel bars and facilitate drilling and coring;

• The protective inner lining of the instrument box adopts a unique ladder and a cylindrical diversion groove, which is convenient for the instrument to be placed.

• Equipped with steel bar detection software, it is convenient for professional data analysis, data processing and generation of complete reports on the PC.

　Instrument interface

　　Strengths assessment:

Packing list：Host x1, charger X1, USB data cable X1, software CD-ROM X1, instrument case X1, crayon X1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
