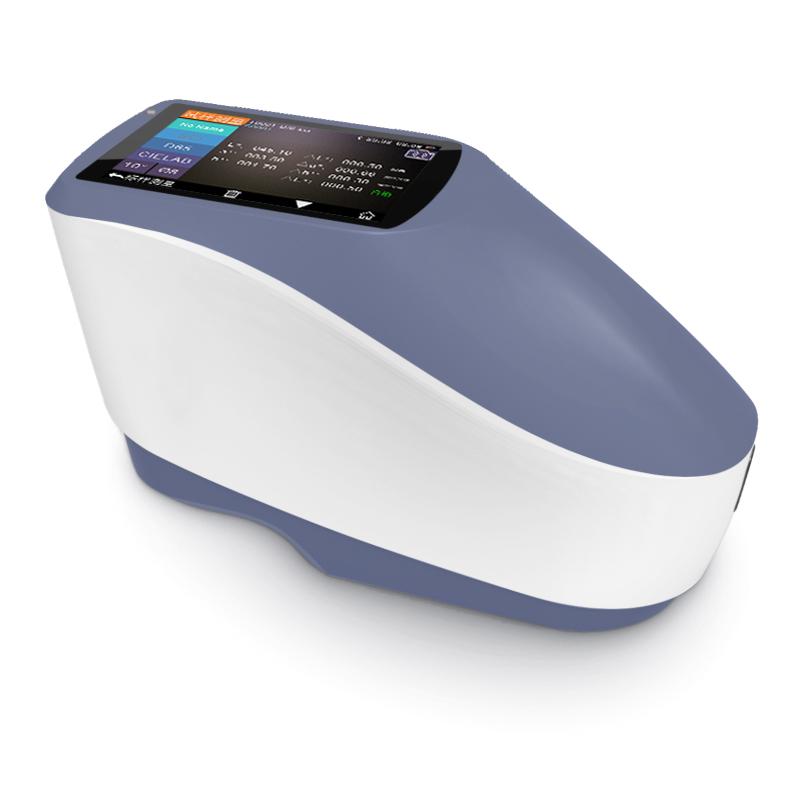

Sanenchi/3NH YS3010 Economical Grating Colorimeter Standard φ 8mm measurement diameter

YS3010

Colorimeter

Economical grating Colorimeter, φ 8mm measurement diameter, USB/Bluetooth 4.0 dual mode, equipped with high-end Color management software, camera viewfinder positioning, more than 20,000 test Data storage.

Introduction

3nh YS3010 grating Spectrophotometer is a domestic (CN) grating Spectrophotometer independently developed by 3nh company with completely independent intellectual property rights. It is cost-effective, Φ8mm caliber, good test accuracy, relatively large storage space, and can meet the needs of most customers. . The Spectrophotometer is widely used in the color difference quality control of various products. It is equipped with high-end color management software and can be connected to a computer to achieve more functional expansion.

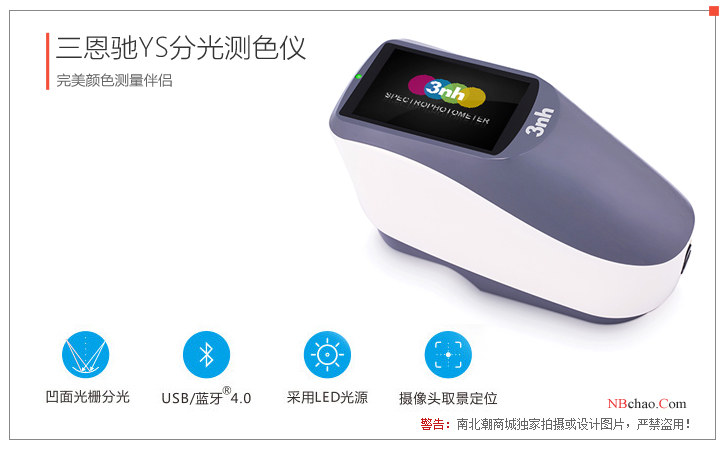

Features

1. D/8 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

2. Adopt a combined LED light source with high lifespan and low power consumption;

3. Good combination of beautiful appearance and structural design in line with human mechanics;

4. The standard Φ8mm caliber is suitable for more samples to be tested; measure SCI and SCE at the same time;

5. Measure the spectrum of the sample, and the Lab data is accurate, which can be used for color matching and accurate color transfer;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel double-array CMOS Detector, etc.;

7. USB/Bluetooth 4.0 dual communication mode (compatible with 2.1), wider adaptability;

8. Standard whiteboard with super dirt resistance, stability and high reflectivity;

9. Large-capacity storage space, which can store more than 20,000 test data;

10. Camera positioning;

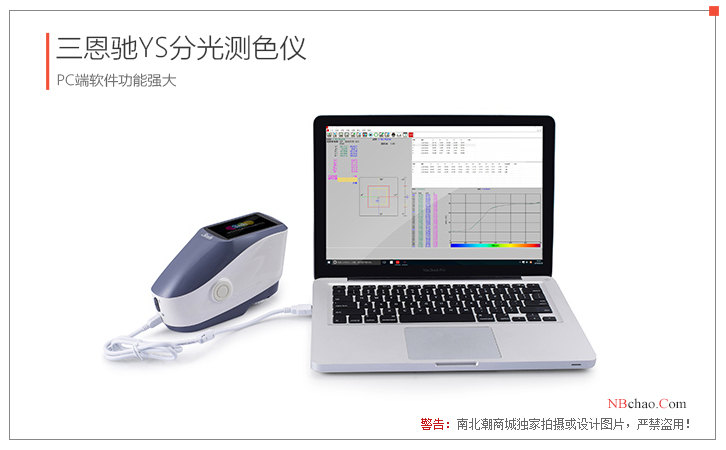

11. The PC-side software has powerful function extensions;

12. Two standard Viewing Angles, various light sources, various color indicators, in line with various standard chromaticity data.

Application

YS3010 SpectrophotometerIt can easily achieve accurate color transfer, and can also be used as a testing device for precise color matching systems. It is widely used in plastic electronics, paint and ink, textile and garment printing and dyeing, printed paper products, automobiles, medical care, cosmetics and food industries, as well as in scientific research institutions and laboratories.

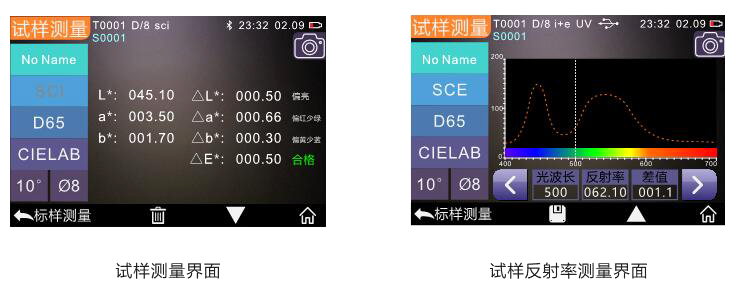

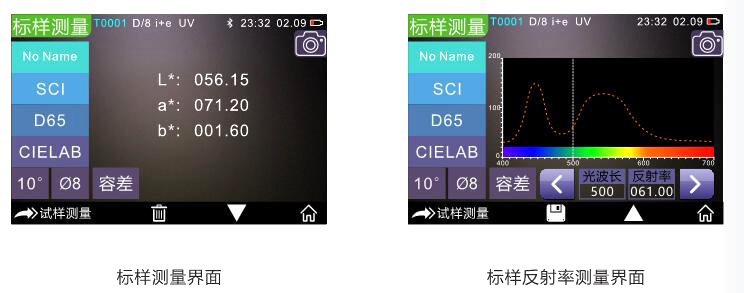

Function interface

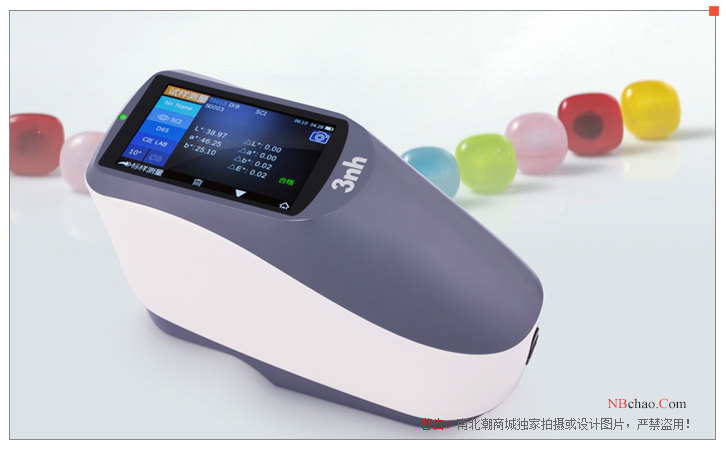

Pictures

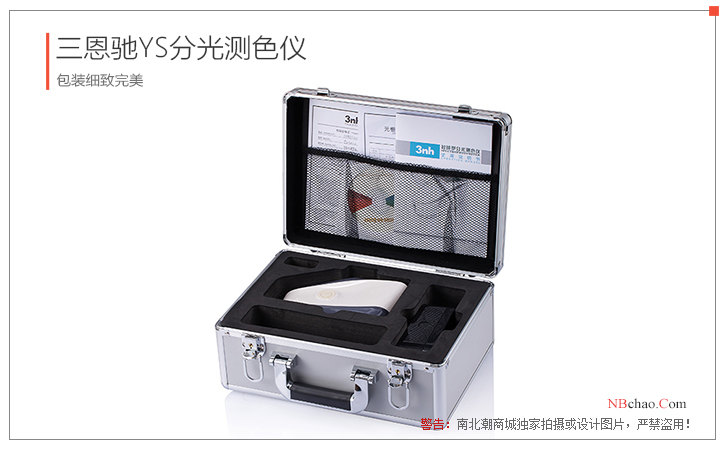

Packing list：power adapter, data cable, built-in lithium battery, manual, CD (including management software), black and white correction box, protective cover.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
