Rongjida LBY-IV drawing Tester, drawing force up to 6000N

Rongjida LBY-IV drawing Tester has a drawing force of 6000N and is driven by a servo motor. The LBY-IV drawing Tester is used for dry-mixed mortar, thermal insulation materials, Ceramics wall and floor tiles Adhesive, Clad Architectural coatings, Tensile and bond strength test of building exterior wall putty.
Model：
Certificate
Contact
Details SPEC

RongJiDa LBY-IV Drawing testing machineSPEC

RongJiDa LBY-IV Drawing testing machineDetails

RongJiDa LBY-IV Drawing testing machinePacking list

SKU
NB018966
Maximum measurement
10KN
Effective detection range
1%-100%
Load Graduation
1N
Load measurement Accuracy
Within ± 1% of the indication
Drawing speed
1mm-50mm/min
Specimen range
300×500mm
Film thickness
70mm
Stretch stroke
150mm
Drive mode
Servo motor drive
Power
Single-phase AC 220V/50Hz, motor power 200 W
Dimensions
700*700*830mm
Weight
115KG
LBY-IV
Drawing testing machine
Rongjida LBY-IV drawing Tester, drawing force up to 6000N Picture

Introduction

The pull-out testing machine is suitable for tensile and bond strength tests of dry-mixed mortar, thermal insulation materials, ceramic wall and floor tile adhesives, multi-layer architectural coatings, and putty for building exterior walls. It can realize uniform loading, high efficiency and good stability. Adopt touch screen control, friendly man-machine interface. The instrument is equipped with travel limit and positive and negative force overload protection functions. It has the characteristics of adjustable test speed, high load measurement accuracy and convenient operation. It is suitable for factories, construction engineering quality inspection stations, construction companies, product quality inspection institutes, scientific research institutions, road and bridge sites, etc., production inspection, development research and other fields.

Features

1. The measurement and control software of the embedded Windows operating system environment can display the test data, curves and automatic control of the test process in real time, and automatically obtain the test results after the test. The software is easy to use

2. Multi-point uniform loading can meet the test requirements of different standards

3. Servo control system is adopted to precisely control the detection process

4. Adopt touch screen control , which is convenient for man-machine dialogue

5. There is an overload protection function for the positive and negative force value of the travel limit inside the testing machine to prevent damage to the testing machine caused by misoperation

6. The hanging-type drawing head is adopted, which is convenient and fast for loading and unloading

plan

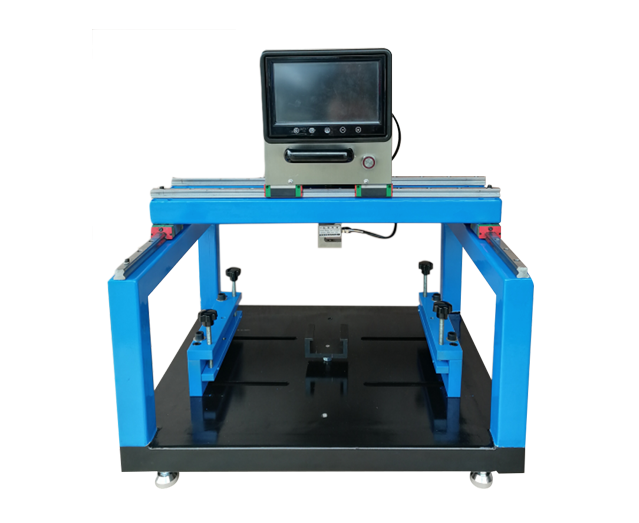

Rongjida LBY-IV pull-out testing machine display


FAQ
QCan this drawing tester be applied to GB/T19250?
A OK
