Talking about ASTM D4541 film adhesion drawing test

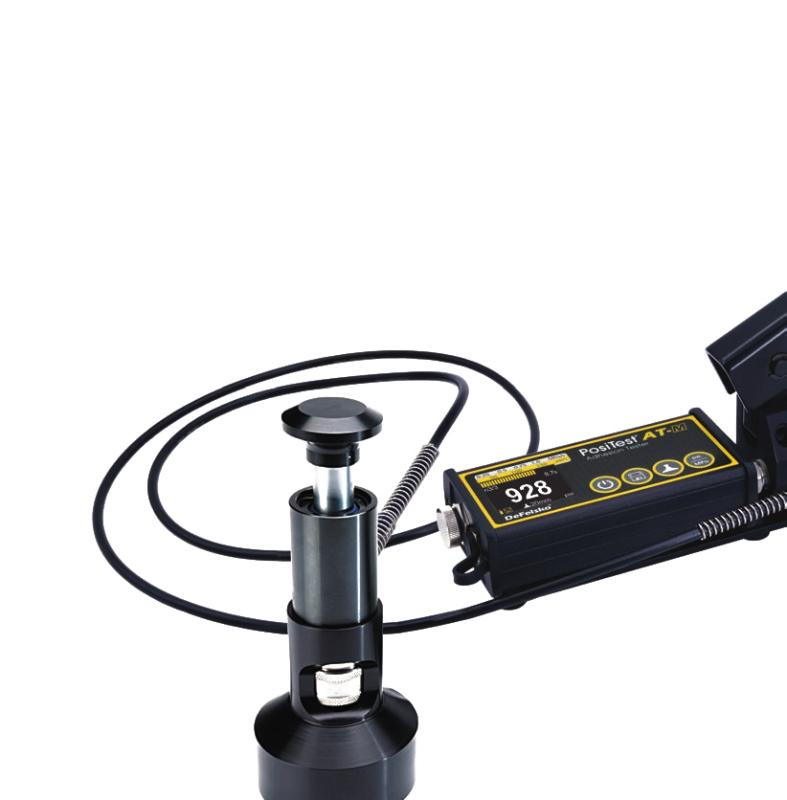

ASTM D4541 is a widely recognized test method for determining the pull-out strength of coating systems applied to surfaces. The test is performed using a portable adhesion Tester, a device that applies a pull-off force to the coating and measures the force required to pull it off the substrate.

ASTM D4541 test method provides a standardized procedure for measuring the adhesion peel strength of coatings and is commonly used in a variety of industries, including construction, aerospace, automotive, and marine.

Testing involves applying the coating to a prepared substrate, allowing it to dry or cure, and then attaching a test fixture to the coated surface using a special adhesive. The adhesion Tester is then attached to the test fixture to measure the force required to pull the coating away from the substrate. Peel strength is usually reported in pounds-force per square inch (psi) or megapascals (MPa). Test results can be used to assess the quality of the coating, compare different coating systems, or assess the suitability of the coating for a particular application.

The ASTM D4541 test method includes many factors that can affect the results, such as the preparation of the substrate, the condition of the coated surface, the type of adhesive used for the adhesion test jig, and the rate of pull-off force applied by the adhesion Tester. ASTM D4541 also provides guidance for selecting an appropriate test method based on the properties of the coating system and substrate, for example, the standard recommends different test methods for coatings applied to concrete versus those applied to metal substrates.

In addition to providing guidance on the testing procedure itself, ASTM D4541 includes requirements for calibration and maintenance of adhesion Testers. Calibration is necessary to ensure that the Tester applies the correct force, and maintenance is important to ensure that the equipment operates properly and provides accurate results.

In summary, the ASTM D4541 test method is an invaluable tool for evaluating the adhesion peel strength of coatings and ensuring they meet the necessary performance requirements for a given application. By following standardized procedures outlined in the standard, users can obtain reliable and reproducible results that can be used to inform important decisions related to coating selection, quality control and maintenance.
