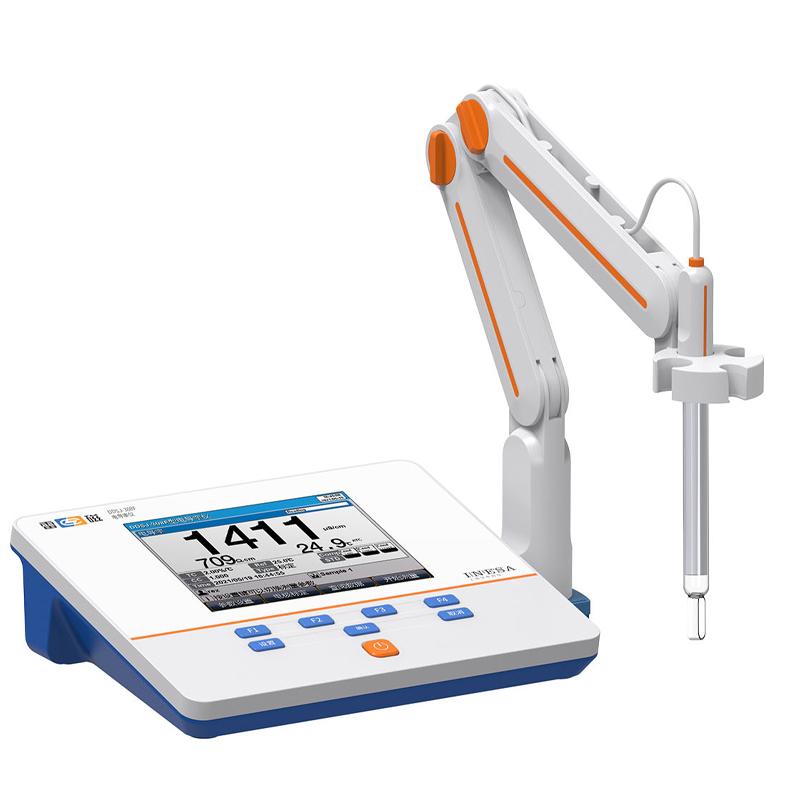

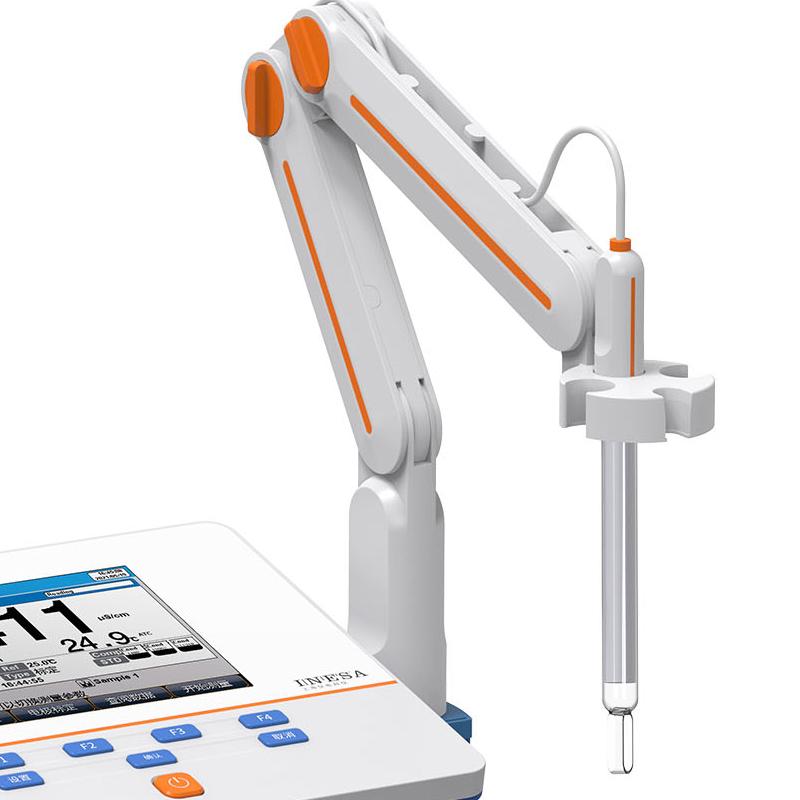

LEICI DDSJ-308F Conductivity Meter Class 0.5 with DJS-1D Platinum Black Conductivity Detector electrode

DDSJ-308F

Conductivity Meter

Introduction

DDSJ-308F conductivity meter is a newly designed laboratory product that allows the measurement of conductivity, TDS, salinity, and resistivity. It can be widely used in universities, environmental protection, food, geological prospecting, metallurgy, and ocean exploration. In fields such as industrial wastewater, surface water, drinking water, beverages , daily chemical products, textiles and other related industries, we carry out measurement work. Equipped with conductivity electrodes of different constants, it can be used to measure the conductivity of pure water or ultrapure water in electronic semiconductors, nuclear energy industry and power plants .

main feature

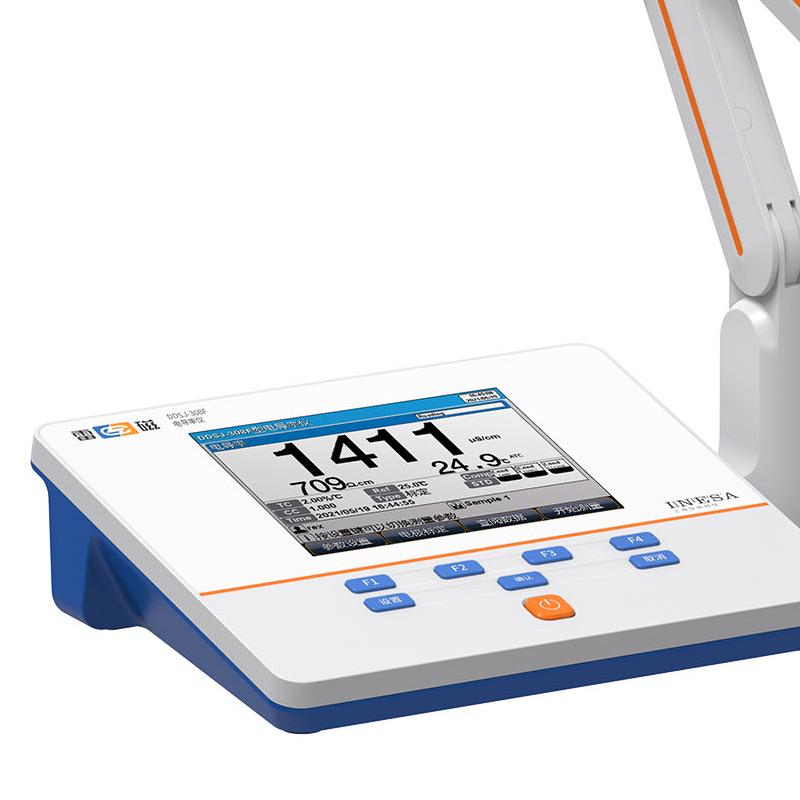

● Adopt color high-definition LCD with clear display

● Temperature units are optional: ℃ and °F;

● Reference temperature 20℃ or 25℃ optional

●Supports functions such as power-on self-diagnosis, automatic shutdown, power-off protection and factory reset

● Support firmware upgrade function, allowing function expansion and personalized requirements

●Support IP54 protection level

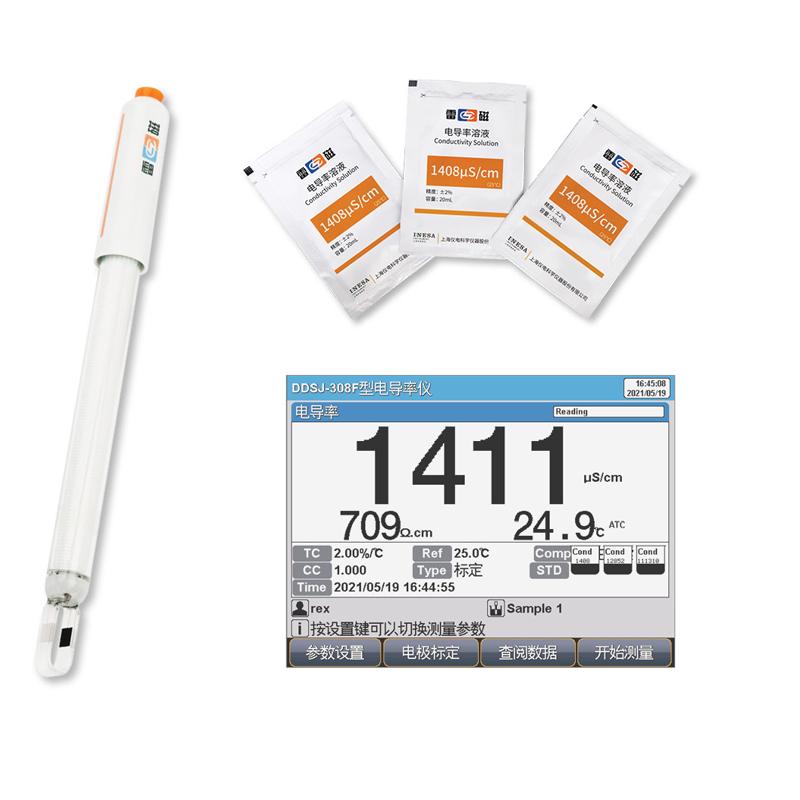

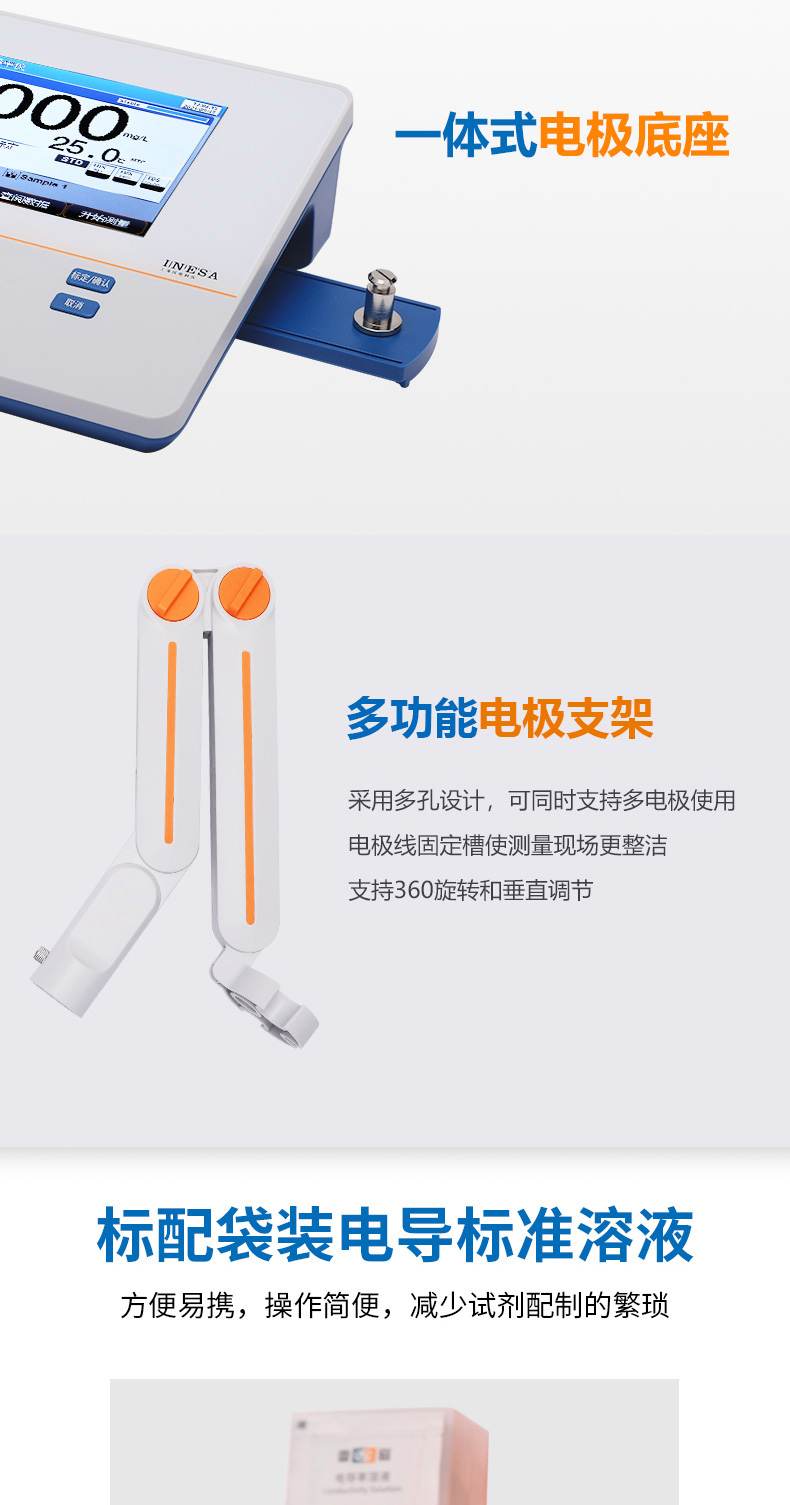

● Comes standard with composite conductivity electrode, electrode holder, dust cover and calibration solution

[Intelligent detection, automatic identification]

● Intelligent identification of end points, supporting automatic reading, scheduled reading, scheduled interval reading, and manual reading

●Support automatic/manual temperature compensation

● Automatically identify 4 kinds of GB conductivity standard solutions and support 1-3 point conductivity electrode calibration

●Supports multiple conductivity compensation methods such as non-compensation, linear, pure water compensation, etc.

● Supports automatic frequency switching, and is equipped with a 1.0 constant electrode that can cover the full range of measurements (it is recommended to use a 0.1 constant or 0.01 constant conductivity electrode for measurement of samples below 20 μS/cm)

[Data management, information traceability]

● Support data storage (500 sets each), review, deletion, transmission and printing

● Comply with GLP and realize data traceability

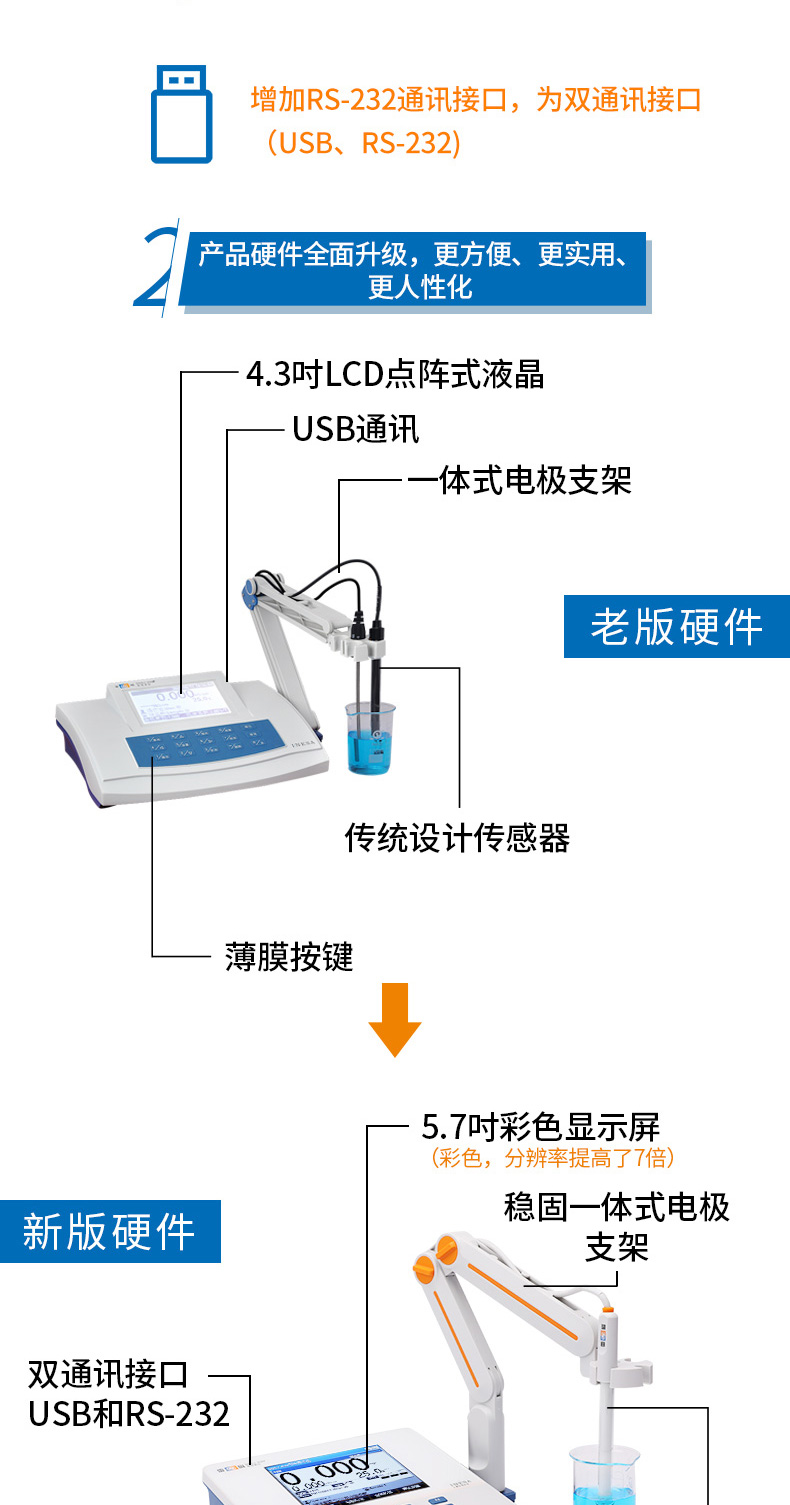

● Equipped with RS-232 interface, supports connection to standard RS-232 serial port printer, and directly prints measurement results. The printing format is optional.

● With USB interface, it can be connected to PC through special communication software to realize data transmission.

Packing list：Host x1, DJS-1D platinum black electrode x1, T-818-B-6 type temperature transducer x1, REX-3 type multifunctional electrode holder x1, general power supply (9VDC, 800mA, inner positive and outer negative) x1, USB interface cable x1, REXDC2.0 LEICI data collection software x1, dust cover x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
