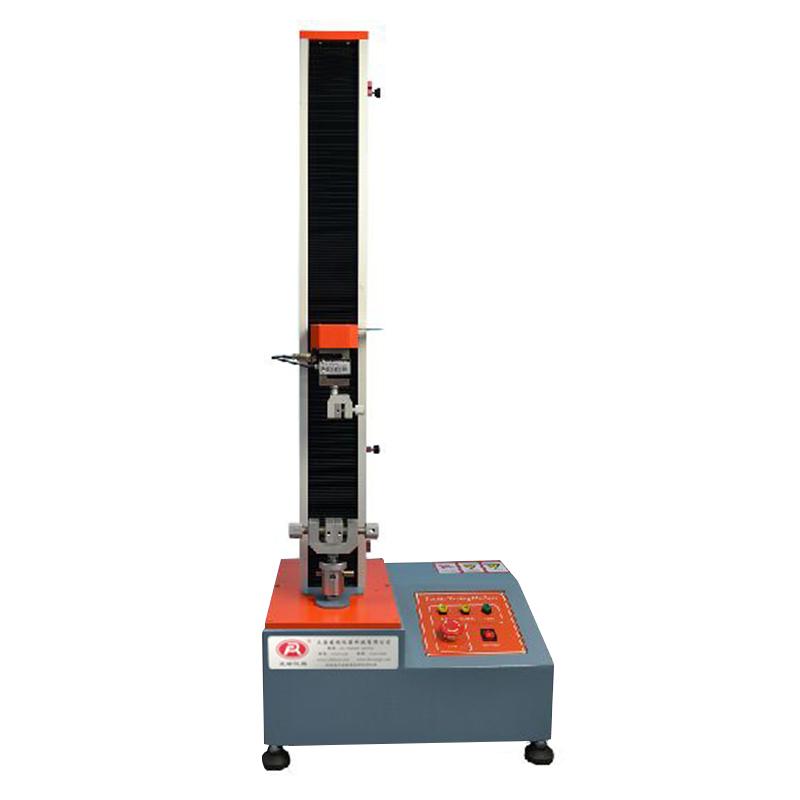

FARI FR-108C Computer Servo Tensile Tester load within 1000N

FR-108C

Tensile Tester

Introduction

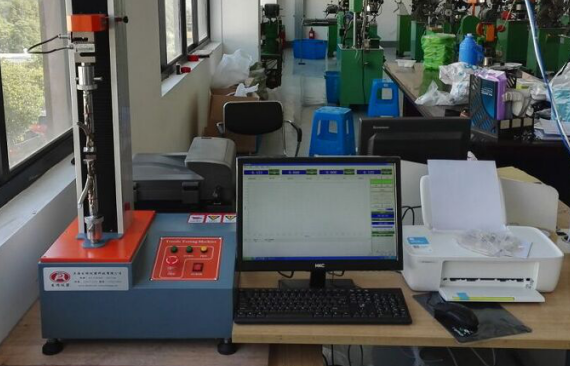

FR-108C desktop computer servo multifunctional material Tensile Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and can measure and control load, deformation and displacement. It has high precision and sensitivity. This series of models adopts a single-space structure, and the test space is in the lower space. It is mainly suitable for the test of metal and non-metal materials with a test load of less than 1kN. It has stress, strain, and displacement control methods. Maximum force, tensile strength, bending strength, compressive strength, elastic modulus, elongation at break, yield strength and other parameters.

The main function

This machine is suitable for rubber, tire, hose, tape, shoe sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic tube, composite material, waterproof material, fiber, textile, wire and cable, paper, gold Testing and analysis of mechanical properties such as tension, compression, tearing, peeling (90 degrees and 180 degrees are acceptable) for flexible foils, tapes, wires, springs, wood, pharmaceutical packaging materials, tapes, etc.

main feature

1. Driven by a servo motor, the transmission mechanism drives the beam to move up and down to realize the test loading process.

2. The whole control system has high cost performance and high reliability.

3. The whole test process is controlled by a microcomputer, and the load value, displacement value, deformation value, test speed and test curve are dynamically displayed in real time.

4. Microcomputer is used for data processing and analysis, and the test results can be saved automatically. After the test is over, the test curve can be recalled, and the test process can be reproduced through curve traversal, or curve comparison and curve amplification can be performed.

5. The test software under the Windows platform in Chinese has strong data and graphics processing functions, and can print out complete test reports and test curves in real time.

6. It has complete safety protection functions such as limit protection, overload protection, and emergency stop.

Application

Widely used in various industries such as wire and cable, hardware, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments, etc. It is the basic equipment for quality management and physical property testing.

Packing list：Host X1, manual X1, certificate X1, warranty card X1, standard tensile fixture X1 (group), special test software for tensile machine X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
