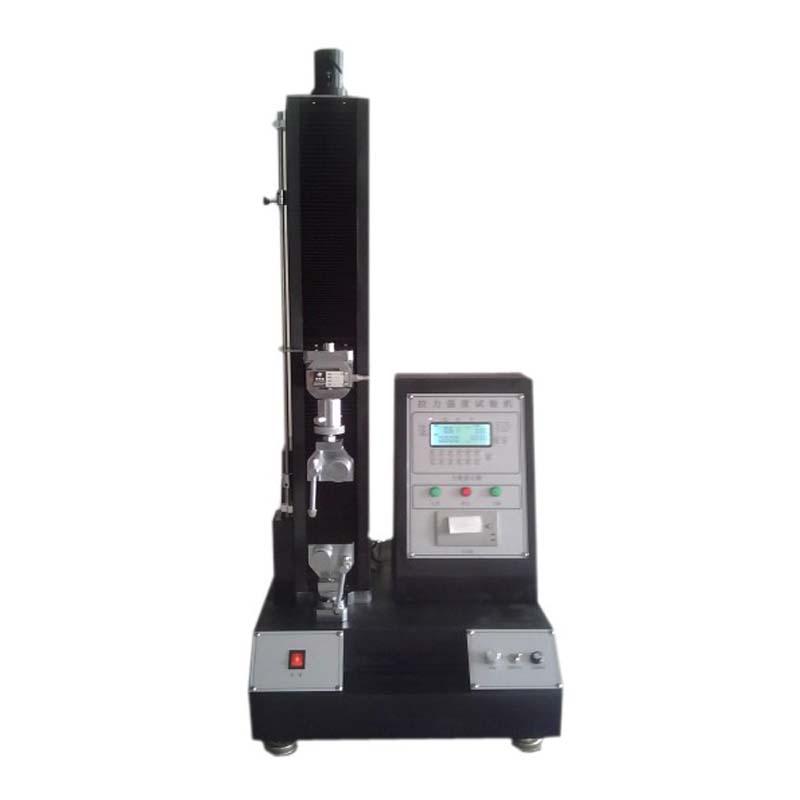

FR-108 Desktop Touch Screen Tensile Tester Electronic tensile machine

FR-108

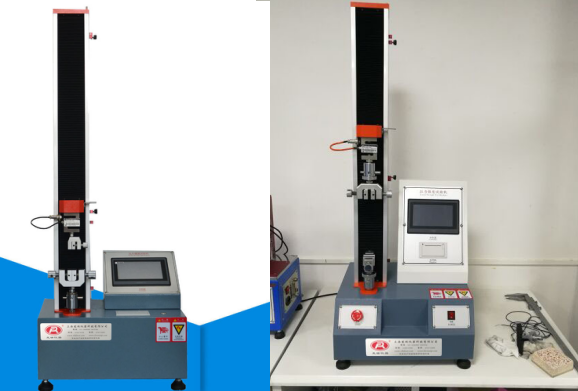

Desktop touch screen Tensile Tester Electronic tensile machine

Introduction

FR-108A desktop touch screen multifunctional material Tensile Testing Machine (single column) is an economical and applicable Tensile Testing Machine with simple structure and convenient operation, and can be placed on the workbench for testing. It adopts an electronic control system, controls the speed regulating motor to rotate through the governor, and then drives the ball screw to drive the load sensor to rise and fall after being decelerated by the speed change mechanism to complete the tensile or compression test of the sample. The force value is output by the sensor, the feedback display, and the test speed are displayed in real time.

It is easy and convenient to operate, and is especially suitable as a testing instrument for controlling product quality on the production line. This series of models is mainly suitable for the test of non-metallic and metallic materials with a test load less than 1000N.

The main function

 This machine is suitable for stretching, compressing, bending, shearing and peeling of various materials and products in textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composite materials, electronics, metal and other industries (90 degrees and 180 degrees), tearing, two-point extension (requires additional extensometer) and other tests to determine the quality of the product.

main feature

1. Very good appearance design. Our company has been paying great attention to the appearance of products for many years, and has developed many products that are comparable to foreign models. The surfaces are all aluminum profiles and electrostatic spray patterns.

2. Force value touch screen liquid crystal curve display, can distinguish tension or pressure, the liquid crystal interface is clear and easy to read;

3. Three measurement units: N-Kgf-Lbf are optional and can be automatically interchanged;

4 Touch screen LCD display with backlight, which can be used in low-light environments;

5. With a single measurement, the peak values in the two directions of tension and compression can be read, and it can be automatically and manually reset;

6. With travel limit and overload stop function.

7. The desktop single-column structure is beautiful and exquisite, and the operation is easy and natural while sitting.

Standards

"GB/T16491-1996 Electronic Multifunctional Testing Machine"

Application

Widely used in various industries such as wire and cable, hardware, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments, etc. It is the basic equipment for quality management and physical property testing

Packing list：Host X1, manual X1, certificate X1, warranty card X1, fixture X1 (set)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
