Germany PHYNIX Surfix easy I F built-in probe Iron-based Film thickness meter [Discontinued]
Measurement range 0~3500 μm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, easy to carry for measurement operations in paint inks, paints workshops, building materials and other industrial fields.
Model：
Surfix® easy I-F
PHYNIX
Similar products
PHYNIX Surfix® easy I-F Easy to use Built-in probe Iron-based Film thickness meterSPEC
PHYNIX Surfix® easy I-F Easy to use Built-in probe Iron-based Film thickness meterDetails
PHYNIX Surfix® easy I-F Easy to use Built-in probe Iron-based Film thickness meterPacking list
- SKU
- NB001521
- Measurement principle
- magnetic Induction
- Measurement range
- 0~3500μm
- margin of error
- ±2%
- resolution
- 1µm|2µm|5µm
- Minimum measurement surface
- Φ10mm
- Minimum radius of curvature
- Convex 5mm; Concave 50mm
- thinnest substrate
- 0.5mm
- probe
- F integrated probe
- statistical function
- MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- none
- Standards
- DIN、ISO、ASTM、BS
- Calibrated Certificate
- Production inspection Certificate
- system language
- German, English or French
- Display screen
- Monochrome ink screen
- Weight
- 90G (including battery)
- Dimension
- 110*50*25mm
- testing environment
- Iron/steel
- Calibrated mode
- Manufacturer calibrated
- Operating temperature
- 0~50℃
- Probe contact temperature
- -15~60℃
- Minimum measurement surface
- 10*10mm
- Protection level
- IP52
Surfix® easy I-F
Easy to use Built-in probe Iron-based Film thickness meter
Measurement range 0~3500 μm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, easy to carry for measurement operations in paint inks, paints workshops, building materials and other industrial fields.
![Germany PHYNIX Surfix easy I F built-in probe Iron-based Film thickness meter [Discontinued] Picture](http://img.nbchao.com/imgs/800/2017/12/26/1635340310811012.jpg)
overview
The Surfix easy I F is a coating Thickness Gauge with a built-in magnetic Thickness Gauge with a built-in probe.The measurement range is 0~3500 microns, and the measurement accuracy is ±2μm+2%. This statistical coating Thickness Gauge is suitable for measurement operations in industrial fields such as paint inks, paint workshops, building materials, etc., and is easy to carry.

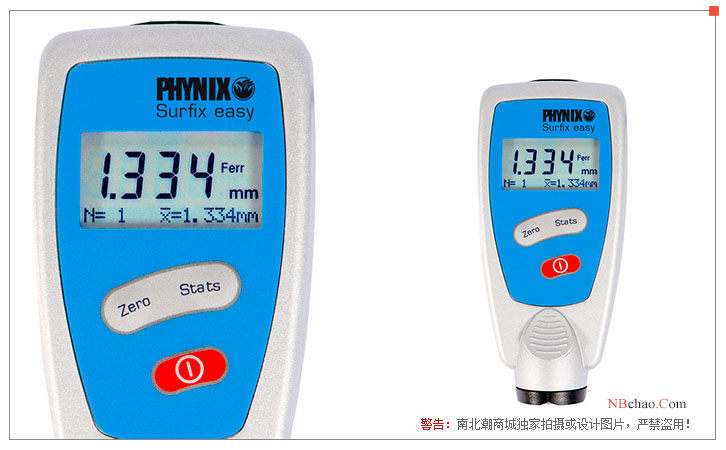

Display diagram
Comparison of Surfix easy series Thickness Gauges
| Compare categories | Surfix® easy I-FN | Surfix® easy I-F | Surfix® easy E-FN | Surfix® easy E-F |
| Product diagram |  |  |  |  |
| Comparison of specifications | ||||
| Principle | Electromagnetic induction + eddy current | electromagnetic induction | Electromagnetic induction + eddy current | electromagnetic induction |
| Measuring range | Iron/steel 0~3500μm; Non-ferrous metals 0~3000μm | 0~3500μm | steel 0~3500μm; Non-ferrous metals 0~3000μm | 0~3500μm |
| Margin of error | ±2µm+2% | ±2μm+2% | ±2μm+2% | ±2µm+2 % |
| resolution | 1µm | 1um | 1μm | 1μm |
| Minimum substrate diameter | 10mm | 10mm | 10mm | 10mm |
| Minimum curvature | Convex 5mm concave 50μm | convex 5mm; Concave 50 μm | Convex 2mm; Concave 50 μm | Convex 2mm; Concave 50 μm |
| Thinnest matrix | Electromagnetic induction: 0.5mm, eddy current: 50um | 0.5mm | Magnetic induction: 0.5mm; Vortex: 50um | 0.5mm |
| probe | One-piece probe | One-piece probe | Wired probes | Wired probes |
| Statistical functions | Number of measurements, mean, standard deviation, min, max, | |||
| Graphical features | not | |||
| Weight (g) | 90g (including battery) | 140g (with battery) | ||
| Dimensions (mm) | 110×50×25mm | |||
| Calibration certificate | Production inspection certificate | |||
| Display the screen | Ink monochrome screen | |||
FAQ
QCan this Surfix easy IF statistical thickness gauge print data?
A
Hello, yes, but you need to buy another infrared adapter for the portable printer. If your laptop comes with an infrared interface, you can use it directly.
QDoes the Surfix easy I F Coating thickness gauge come with a calibrating certificate?
A
Hello, yes, there is a production inspection certificate attached.
QWhat substrate does PHYNIX statistical Coating thickness gauge test? Do you need to calibrate?
A
Hello, this Surfix easy IF thickness gauge is a magnetic thickness gauge, which tests iron or steel substrates. The thickness gauge does not need to be calibrated, and the manufacturer has already calibrated it when it leaves the factory.
