Erichsen erichsen312 Bending TesterSPEC
Erichsen erichsen312 Bending TesterDetails
Erichsen erichsen312 Bending TesterPacking list
- SKU
- NB016853
- Dimension
- 250*140*420mm
- Net Weight
- 4.6 kg
- plate thickness
- 1/32" (0.79 mm)
- Sample width
- 190 mm
- Taper shaft size
- Φ3.2~38.1mm
Introduction

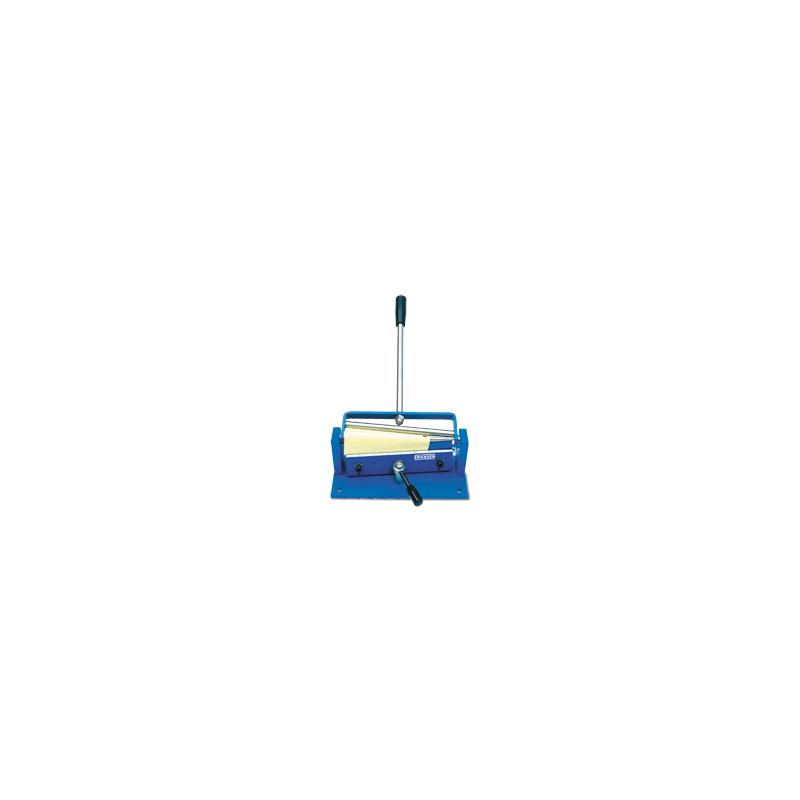

The ERICHSEN 312 Cone Shaft Flexure Tester is a compact, robust instrument made of enamelled steel for bench use. The tapered shaft and the shaft rod parallel to the surface of the tapered shaft are made of stainless steel. The clamping device is equipped with an eccentric rod to ensure that sample changes are quick and easy.
Product Applications
The tapered shaft flexure test is a very versatile test method used to measure the flexibility and adhesion properties of coatings when subjected to bending stresses. The Model 312 Conical Shaft Flexure Tester complies with a variety of test standards.
Test principle
The tapered shaft flexure Tester is used to determine the maximum tapered shaft diameter of the coating at the surface crack after bending.
Product display diagram
Meets standards
EN ISO 6880、EN ISO 6860、ASTM D 522、ISO 6860。
- 1NF 《Paints and varnishes - Bend test (conical mandrel)》
- 2DIN EN ISO 6860-2006《Paints and varnishes - Bend test (conical mandrel)》
- 3NF EN ISO 6860-2007《Paints and varnishes - Bend test (conical mandrel).》
- 4ISO 6860-2006《Paints And Varnishes - Bend Test (Conical Mandrel)》
- 5ASTM D522/D522M-2021《Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings》
- 6GB/T 11185-2009《Paints and varnishes bending test (conical mandrel)》
