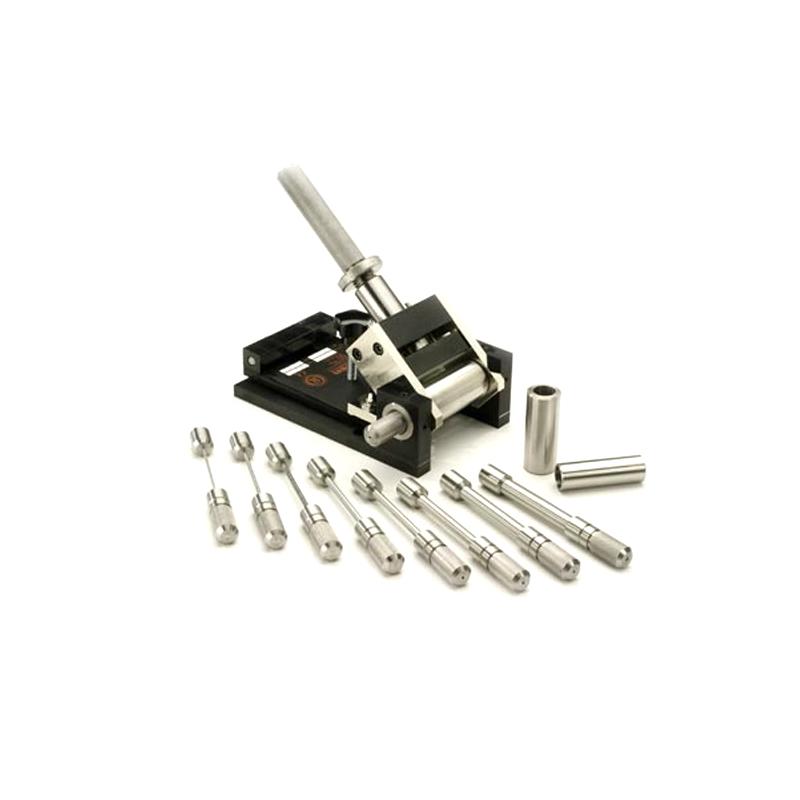

TQC SHEEN SH809 (Ref809) cylindrical bending testing machine

SH809

Cylinder bending test machine

Introduction

The basis of the cylindrical mandrel flexure Tester test is to determine the smallest diameter mandrel that the coated sheet can bend, with no signs of cracks and/or loss of adhesion.

Bend the coated plate 180° over a period of 2 to 3 seconds, and if there are no signs of failure, bend the new coated plate on the next smaller diameter mandrel, repeat the test on the smaller diameter until failure is observed.

Failure can be observed by observing the color change, followed by cracks and/or signs of loss of adhesion.

Pass/fail criteria

When determining the smallest diameter mandrel, the panel can be bent without failure, while the next smaller diameter mandrel, in the event of coating failure, a pass/fail criterion can be defined for quality control.

features

• Maximum panel size: 50 mm wide x 1 mm thick

• Sturdy stainless steel mandrel for easy installation in seconds

• Study the pre-drilled frame to fix on the bench

standard

ASTM D522 Method B (specifying a 6-inch size mandrel)

ISO 1519 Type 2

JIS K 5600-5-1

AS / NZ 1580.402.1 -2003（2013）

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
