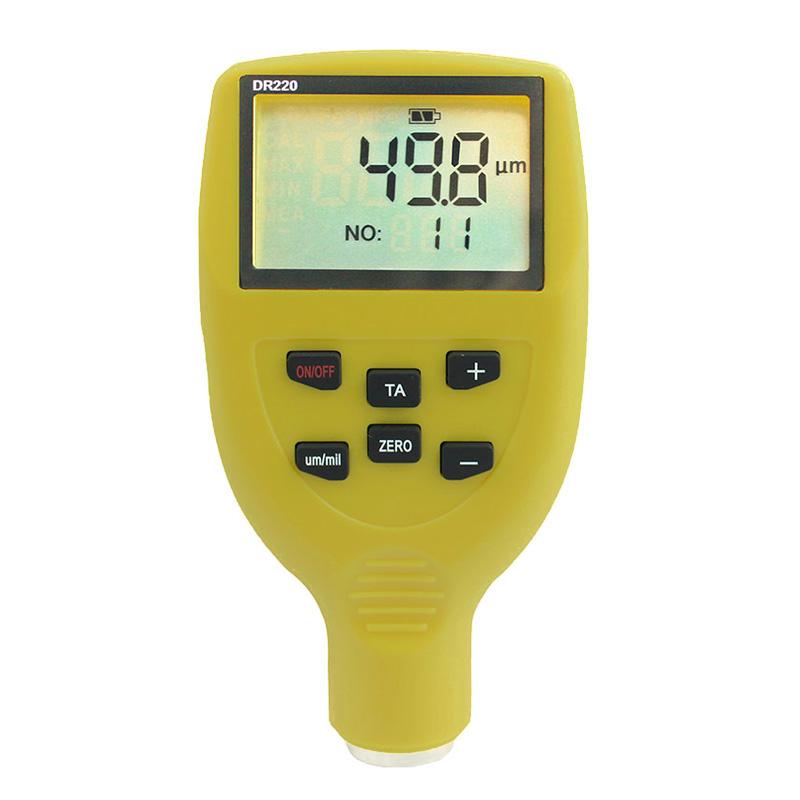

DONGRU DR220 Coating Thickness Gauge for nondestructive measurement of magnetic metal substrate surface coatings

DR220

Coating Thickness Gauge

The error range is +/- 3%, the resolution is 0.1μm | 1μm, and the magnetic thickness measurement method is adopted, which can nondestructive measurement of the thickness of magnetic metal substrate surface coatings. It has impact resistance and is very small in volume. It is a simple type of Coating Thickness Gauge, which is convenient for thickness measurement in production lines or field work exchanges.

Description

The DR220 Coating Thickness Gauge is a built-in probe type coating Thickness Gauge that uses a magnetic Thickness Gauge to non-destructively measure the thickness of the coating on the surface of a magnetic metal substrate, providing accurate and reliable thickness measurement data.The DR220 coating Thickness Gauge is made of yellow hard plastic, which is impact resistant, very small, and is a simple coating Thickness Gauge, which is convenient for thickness measurement in the production line or field work exchange, and the thickness of the substrate is measured as thin as 0.4mm.

Features

Compact integrated design, easy to carry

The operation is simple and the test speed is fast

There are two types of testing: continuous testing (CONT INUE) and single measurement methods

Four statistical functions: maximum (MAX), minimum (MIN), average (MEA), number of measurements

DR220 Coating Thickness GaugeUp to 116 measurements can be stored

It can be connected to a computer for communication, reading out and storing data, saving or printing

There are two types of calibration: zero calibration and two-point calibration

Beep indication during operation (single measurement method)

The DR220 Coating Thickness Gauge has:Low Voltage indication

Manual/automatic shutdown function

The DR220 coating Thickness Gauge is an all-in-one cladding Thickness Gauge, which integrates portable, all-in-one, intelligent digital display and other features

Operating Principle:

1. PressThe ON/OFF button of the DR220 coating Thickness Gauge will display the electromagnetic electric level symbol and the initial value of 0 measurement on the LCD display after the beep sounds. At this timeThe DR220 coating Thickness Gauge enters the automatic measurement state.

2. Pinch your thumb and forefingerDR220 Coating Thickness GaugeThe Thickness Gauge automatically measures the thickness of the coating of the object to be measured through the probe and displays the measured thickness value through the display.

Application

DR220 coating Thickness Gauge is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields, which can quickly, non-damage, and accurately measure the thickness of magnetic metal surface coatings. It adopts the magnetic thickness measurement method, which can non-destructively measure the thickness of non-magnetic cladding (such as: galvanization, chromium, paint, electrophoresis, enamel, rubber, powder, enamel, anti-corrosion layer, etc.) on magnetic metal substrates (such as: steel, iron, nickel)

Packing list：instrument case x1, host x1, standard piece x4, iron base x1, battery x2, cleaning cloth x1, warranty card x1 attached to the manual, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
