QTX film Flexibility Tester YONGLIDA shaft rod length is 35mm

SE
Compliant with GB/T1731 standard; 7 shaft rods of different diameters; shaft rod length 35mm.
$118.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

YongLiDa QTX Film resilience TesterSPEC

YongLiDa QTX Film resilience TesterDetails

YongLiDa QTX Film resilience TesterPacking list

SKU
NB002786
Shaft length
35mm
meet the standard
GB/T1731
Shaft rod 1
Φ15mm
Shaft rod 2
Φ10mm
Shaft rod 3
Φ5mm
Shaft rod 4
Φ4mm
Shaft rod 5
3 * 10Mm, radius of curvature 1.5mm
Shaft rod 6
2 * 10Mm, radius of curvature 1mm
Shaft rod 7
1 * 10Mm, radius of curvature 0.5mm
QTX
Film resilience Tester
Compliant with GB/T1731 standard; 7 shaft rods of different diameters; shaft rod length 35mm.
QTX film Flexibility Tester YONGLIDA shaft rod length is 35mm Picture

Introduction of QTX Paint Film Flexibility Tester

Yonglida QTX paint film flexibility Tester, also known as paint film flexibility Tester, is a measuring instrument for evaluating paint film flexibility. There are 7 shafts with different diameters on the surface. Designed in accordance with the provisions of the Sex Determination Law. The shaft length of the QTX paint film flexibility Tester is 35mm.

Display diagram of QTX paint film flexibility Tester

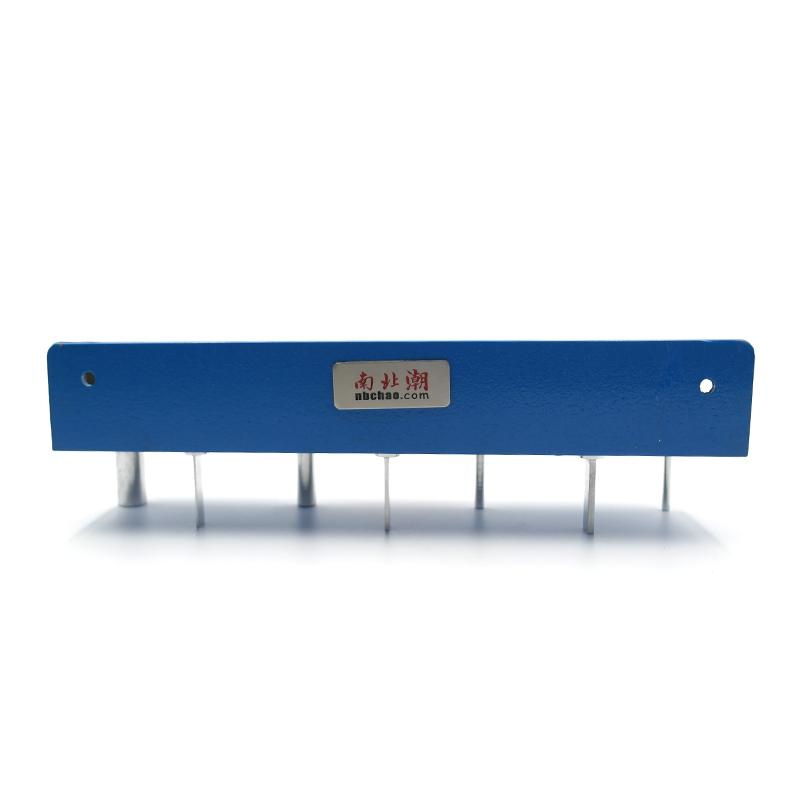

QTX Paint Film Flexibility Tester Display Figure 1

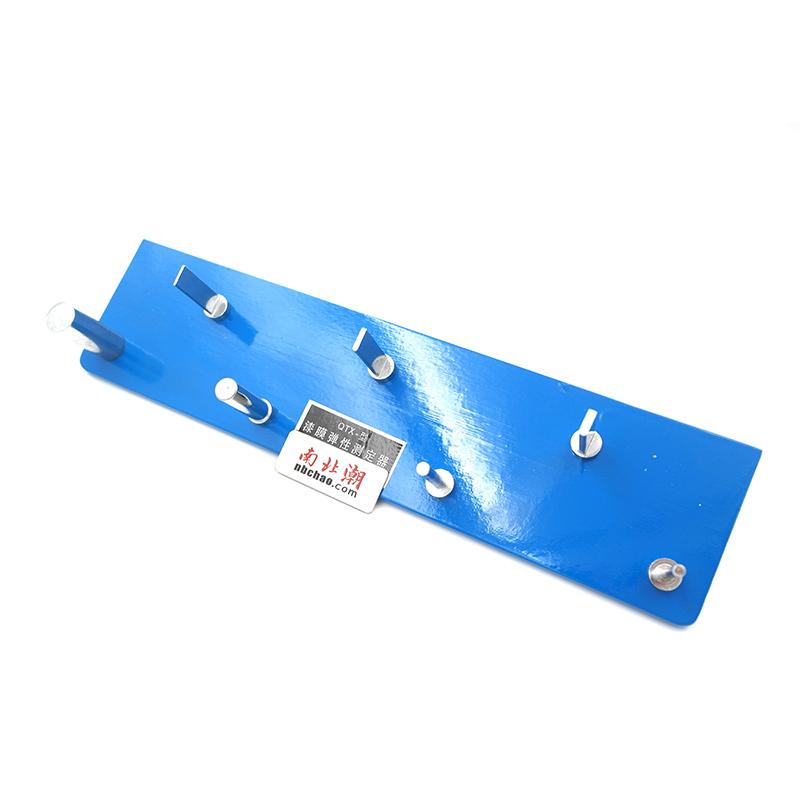

Details of QTX Paint Film Flexibility Tester

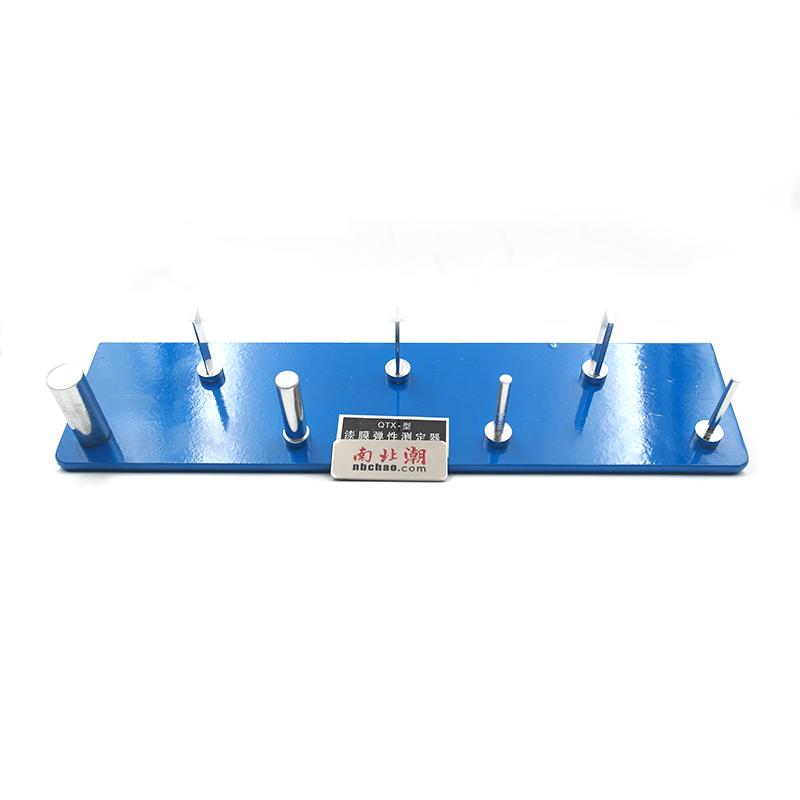

Appearance of QTX Paint Film Flexibility Tester

FAQ
QI want to test the flexibility of paints coatings, what do you recommend?
A The QTX film resilience tester is specially used to evaluate the flexibility of the film, in line with the national standard GB/T1731, with simple operation and reliable results.
QI want to test the flexibility of paints coatings, which instrument should I choose?
A The QTX film resilience tester is specially used to evaluate film flexibility, in line with the national standard GB/T1731, and can quickly detect whether the coating is cracked or flaking when bent by shaft rods of different diameters. The operation is simple and the results are reliable.
QThere are so many shaft rod specifications, how to choose the right one for testing?
A QTX provides 7 different diameters of shaft rods, from φ 15mm to 1 * 10mm, you can choose according to test standards or coating requirements. Generally speaking, the smaller the diameter of the shaft rod, the greater the bending curvature, and the stricter the test; for example, if you want to test the resilience of coatings under harsh conditions, use small diameter shaft rods (such as shaft rods 7). Select on demand to fully evaluate film flexibility.
QWhat is the size of the shaft rod of Yonglida film Flexibility tester?
A Hello, shaft rod 1: Should 15mm; shaft rod 2: Should 10mm; shaft rod 3: Should 5mm; shaft rod 4: Should 4mm; shaft rod 5:10 x 3mm; shaft rod 6:10 x 2mm; shaft rod 7:10 x 1mm.
QWhat is the maximum diameter of the shaft rod for this film Flexibility tester?
A Hello, the diameter is 15mm.
QMeet JT/T 821.1 film resilience tester
A QTX film resilience tester, please refer to
