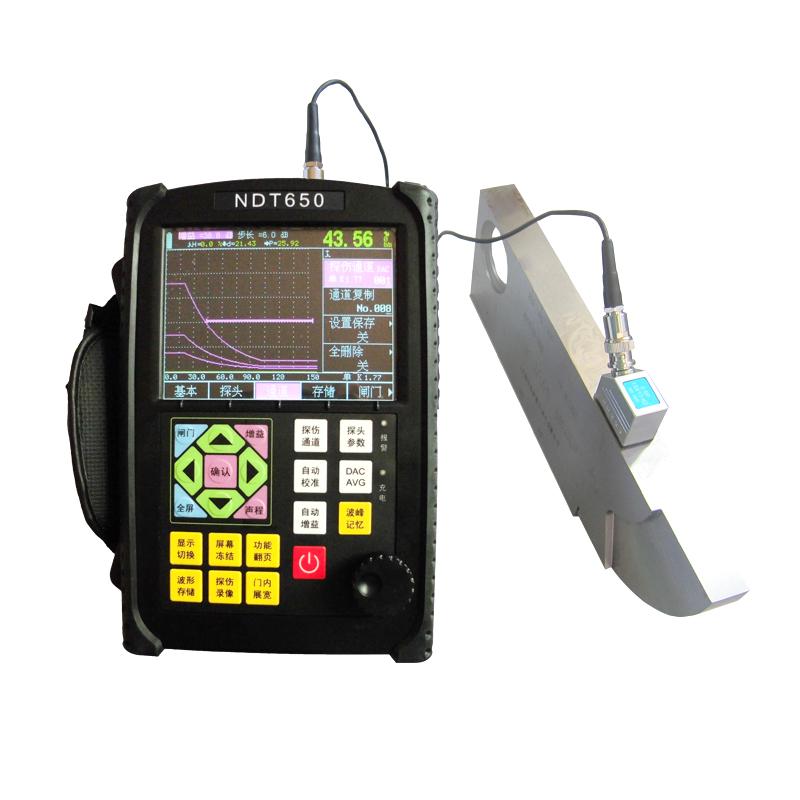

KAIRDA NDT650 Ultrasonic Flaw Detector high gain 130dB intelligent calibrating

NDT650

Ultrasonic Flaw Detector

130dB high gain ensures detection sensitivity, intelligent one-click calibrating simplifies the operation process, supports unlimited recording and dynamic playback, and meets the needs of flaw detection in a variety of complex environments.

Flaw detection category

Cracks, welds, pores, blisters, inclusions, folds, etc.

Unique

Unlimited automatic recording of flaw detection process, high-speed scanning, ultra-low noise, intelligent and precise appearance, easy to carry, shockproof and antimagnetic one-key automatic calibration, 130dB high gain

The main purpose

Widely used in electric power, petrochemical, boiler pressure vessel, steel structure, military industry, aerospace, railway transportation, automobile, machinery and other fields

main function

• Widely used in electric power, petrochemical, boiler pressure vessel, steel structure, military industry, aerospace, railway transportation, automobile, machinery and other fields

• High-precision quantification and positioning meet the requirements of near- and long-distance flaw detection;　

• The near-field blind zone is small, which meets the requirements for flaw detection of small diameter and thin-walled pipes;　

• AWS functions;　

• Automatic calibration: one-button automatic calibration, the operation is very convenient, and the "zero point", "K value", "leading edge" of the probe and the "sound velocity" of the material are automatically tested;　

• Automatically display defect echo position (depth d, level p, distance s, amplitude, equivalent dB, aperture ф value);　

• Freely switch between three scales (depth d, level p, distance s);　

• Automatic gain, echo envelope, and peak memory functions improve the efficiency of flaw detection;　

• Automatic recording of flaw detection process and dynamic playback; (unlimited time)　

• φ value calculation: Forging flaw detection with straight probe, find the highest defect wave and automatically convert aperture φ value;　

• 100 independent flaw detection channels (expandable), can freely input and store flaw detection standards of any industry, no need to carry test blocks for on-site flaw detection;　

• Free storage and playback of 1000 A-scan waveforms and data;　

• DAC, AVG, TCG curves (depth compensation) are automatically generated and can be produced in sections, and the sampling points are not limited, and can be corrected and compensated;

• The emission pulse width and intensity are adjustable;

• B-scan function, clearly display the shape of longitudinal section of defects　

• Any industry standard can be freely input;　

• Communicate with computer to realize computer data management, and can export flaw detection report in Excel format and A4 paper;　

• IP65 standard aluminum-magnesium alloy shell, durable, waterproof and dustproof, good anti-interference ability;　

• The functions of the instrument system can be upgraded by using the PC-side communication software;　

• 260,000-color true color screen with super bright display and adjustable brightness, suitable for Operating Environments with strong light and low light;　

• Powered by a high-performance, safe and environmentally friendly lithium battery, it can work continuously for 10 hours.　

• Real-time clock record: real-time flaw detection date and time tracking record and storage;　

• Power-down protection, the stored data will not be lost;　

• Flaw detection parameters can be automatically tested or preset;　

• Digital rejection without affecting gain and linearity;　

• Screen saver: "Automatic shutdown", "text", "free customization" and other screen saver modes can be changed freely;　

• Gain compensation: Db attenuation caused by factors such as surface roughness, curved surface, and long-distance flaw detection of thick workpieces can be corrected;　

• PC-side communication software soft keyboard operation realizes the goal of computer-controlled flaw Detector host for flaw detection;　

Important Accessibility

• Two input methods of angle and K value

• Echo Number Analysis

• Power Status Indicator

• Gate sound and light alarm

• DAC sound and light alarm

• Freezing and Thawing of the Screen

• clock display

• Hibernation and Screensaver

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
