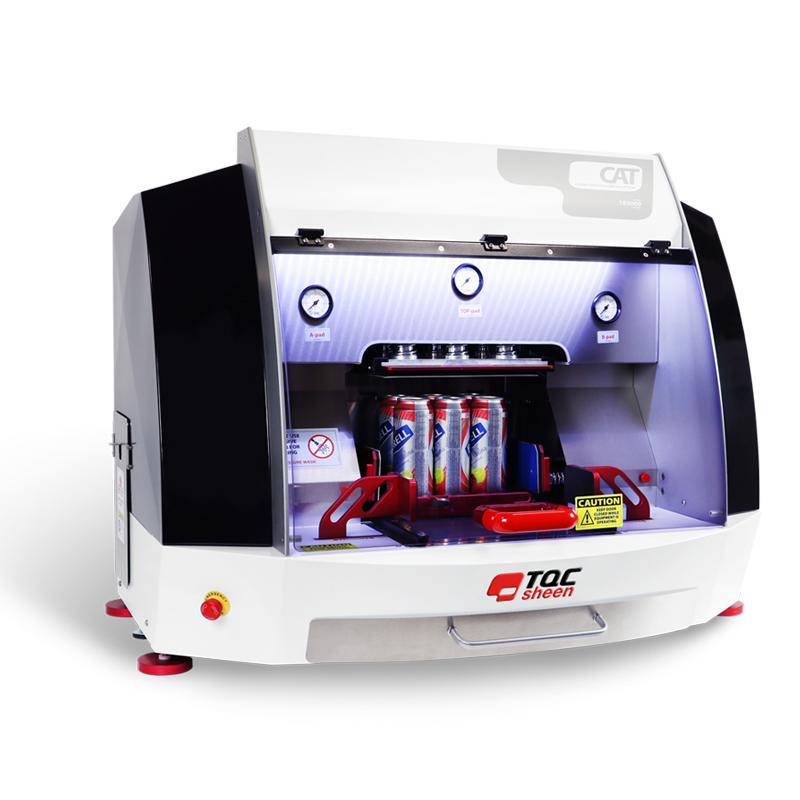

TQCSHEEN TB5000 Beverage Can Wear Tester 230VAC
SETQCSHEEN wear resistance Tester TB5000 is a coating abrasion resistance testing instrument for beverage cans or flat materials. The test stroke is 12.7~ 50.8mm, and the TB5000 is suitable for cans with a diameter of 53~ 84mm.
$91836.00/set
PromotionLoading...
Coupon
Model：
TB5000
TQC sheen TB5000 Wear resistance TesterSPEC
TQC sheen TB5000 Wear resistance TesterDetails
TQC sheen TB5000 Wear resistance TesterPacking list
- SKU
- NB032314
- Friction method
- Reciprocating
- Frictional contact form
- line
- Number of grinding heads
- 1
- Friction Frequency
- 0~2.5Hz
- Test Travel
- 12.7~50.8mm
- Power supply Voltage
- 230V，50~60Hz
- Machine size
- 1050*790*760mm
- Machine Weight
- 125kg
- Noise level
- ＜70dB
- power consumption
- 265w
- gas source
- 8bar±20%
- operating temperature
- 0~50℃
- Operating humidity
- 0~90% RH (non-condensing)
- Can diameter range
- 53~84mm
- Tank height range
- 88~205mm
- Can size
- 150~1000ml
- top pressure
- 0~6bar
- lateral pressure
- 0~6bar
- continuous test duration
- 0~24h
TB5000
Wear resistance Tester
Introduction
The Comprehensive Abrasion Resistance Test is a universal testing machine used to test the abrasion resistance of coatings on beverage cans or flat materials. The reciprocating motion simulates the wear and tear of a coating equivalent to the Gavarti Associates "GV-CAT" system during on-site transport. Comprehensive abrasion tests are used in coating testing laboratories for quality control work.
Features
Test the abrasion resistance of the coating
Reciprocating motion of beverage cans
Simulate on-site transport damage
Menu actions
Meets standards
IEC 61326-1,EMC
IEC 61340-5-1,ESD
IEC 61010-1, Safety Specification for Electronic Equipment
Directive 2011/65? EU，RoHS2
