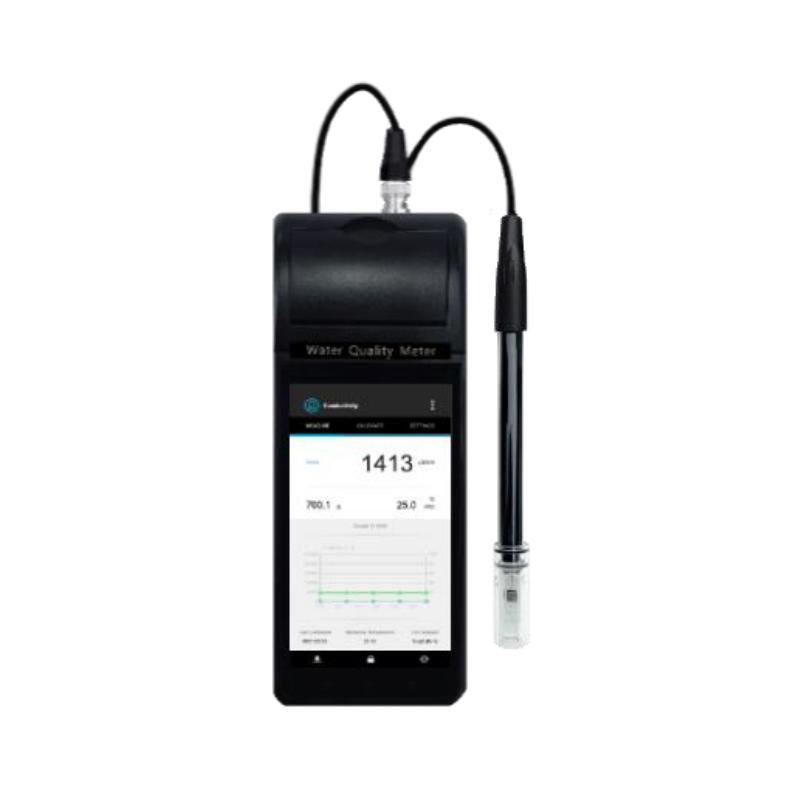

Bante50 Portable Intelligent Conductivity Meter conductivity TDS salinity Conductivity Detector Ash

SE
Conductivity Detector electrode with platinum, based on Android Operating system, with conductivity, TDS, salinity, resistivity and Conductivity Detector ash Measurement mode, Measurement accuracy: 0.5% F.S.
$517.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

Bante Bante50 Portable Intelligent Conductivity MeterSPEC

Bante Bante50 Portable Intelligent Conductivity MeterDetails

Bante Bante50 Portable Intelligent Conductivity MeterPacking list

SKU
NB041686
Measurement range
0.01~20.00µS/cm、0.01~200.0µS/cm、0.01~2000µS/cm、0.01~20.00mS/cm、0.01~200.0mS/cm
resolution
0.001, 0.01, 0.1, 1, automatic
measurement error
±0.5% F.S
Calibrating fluid
84µS/1413µS/12.88mS/111.8mS
Measurement range
0~200.0g/L
resolution
0.01, 0.1, 1, automatic
measurement error
±1% F.S
TDS conversion factor
0.01~ 1.00 (default 0.5)
Salinity range (practical salinity)
0.00~42.00psu
Salinity range (sea water)
0.00~80.00ppt
Measurement range (%)
0.00~8.00%
resolution
0.01
measurement error
±1% F.S
Resistivity range
0.00~10.00MΩ
Resistivity Display resolution
0.01, 0.1, 1, automatic
Conductivity Detector Ash Measurement range
0~100%
Conductivity Detector Ash Display resolution
0.01, 0.1, 1, automatic
Conductivity Detector Ash Measurement Accuracy
±1%F.S.
Conductivity Detector Ash Measurement mode
Refined or jagged sugar
Temperature compensation range
0~100 ° C/32~ 212 ° F, automatic
Temperature compensation coefficient
Linear (0.0~10.0%/℃)/Nonlinear/USP/EP
Pure water compensation
contain
reference temperature
20/25℃
Conductivity Detector cell constant
K=1
Stability condition
Fast/standard/high-precision
Measurement mode
Continuous or automatic endpoint locking
Timed interval reading
10/30/60/300 seconds or off
Calibrated expiration reminder
1 to 99 days or closed
High/Low Limit Alarm
optional
data transmission
Memory or printer
password protection
6 digits
Processor CPU
Mt6580
architecture
ARMCortex-A7 Quad Core 1.3GHz
system
Android 8.1.0
Memory
8GBROM+1GBRAM
Display
5.5HD,1280×720IPS
camera
5 million pixels + autofocus
WIFI
2.4Ghz, support IEEE802.11a/b/g/n
Communication mode
Support Unicom 3G/2G, Mobile 2G
Bluetooth
Support Bluetooth 3.0/4, support BLE
microphone
support
Speaker
support
key
Power button (lock screen button) + Volume up/down button
external interface
BNC, 3.5mm microphone plug; Type-CUSB; support OTG function
Charger
5V/2A
barcode recognition
Rear camera scanning, support 1D/2D barcode scanning and reading
SIM
support
TF/SD
Card ≤ 64G
PASM
Card support
Connectivity
WIFI、GPS、Bluetooth、GSM
Power supply type
Removable lithium battery 3.7V/5000mAh
Dimension
211*87*60.5mm
Instrument Weight
500G (including battery)
Bante50
Portable Intelligent Conductivity Meter
Conductivity Detector electrode with platinum, based on Android Operating system, with conductivity, TDS, salinity, resistivity and Conductivity Detector ash Measurement mode, Measurement accuracy: 0.5% F.S.
Bante50 Portable Intelligent Conductivity Meter conductivity TDS salinity Conductivity Detector Ash Picture

Introduction

Bante50 portable smart conductivity meter, based on Android operating system, has conductivity, TDS, salinity, resistivity and conductivity ash measurement modes, measurement accuracy: 0.5% FS.

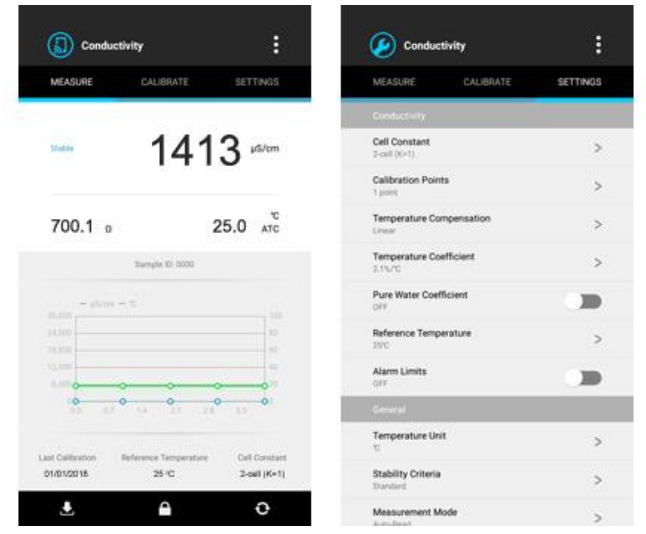

Bante50 Portable Smart Conductivity Meter Details Figure 1

Features

  • High-precision intelligent conductivity meter, equipped with platinum conductivity electrode.

  • 1 to 3 point calibration, automatic identification of conductivity standard solution.

  • Optional cell constant, temperature compensation type, temperature compensation coefficient, pure water compensation coefficient,

  • Reference temperature to TDS conversion factor.

  • Automatic temperature compensation to ensure accurate measurement of the full range.

  • Automatic end point locking keeps stable readings for easy viewing and recording.

  • Timed interval readings, sending measurement data to memory or printer.

  • Limit value alarm, automatically warns whether the measured value exceeds the set range.

  • Calibration due reminder reminds users to calibrate the instrument regularly.

  • Calibration report showing date, time, calibration points and conductivity cell coefficients.

  • Password protection prevents unauthorized calibration and settings.

  • Multi-parameter measurement, can connect S10pH and S60 Dissolved Oxygen Meter and display the measured value at the same time.

  • Reset function, automatically restore the meter to the factory default settings.

  • Support full Netcom, Bluetooth, WIFI multiple versions of connection methods.

  • GPS positioning.

  • Real-time Email measurement data.

  • 5.5-inch HD IPS touch screen.

FAQ
QWhy are different Conductivity Meter measurements inconsistent on the same sample?
A Different Conductivity Meters may use different calibration methods, electrode types or temperature compensation algorithms, resulting in differences in measurement results. This can be reduced by ensuring that all instruments are calibrated and operated to the same standard.
QWhy is the measurement result unusually high conductivity?
A Unusually high conductivity results may be due to Miscellaneous electrolysis contamination or incompletely dissolved solid particles in the sample. Repreparation of the sample or appropriate sample pretreatment is recommended.
QCan this test the conductivity of inks? Can it be tested by putting inks directly?
A The tested inks are not easy to clean, but they can be tested
