MODERNER LBL-3 Tensile Tester 1000N

SE
Integrated horizontal host frame structure, test force up to 1000N, accuracy of full scale +/- 1%, in line with GB/T-18102-2020 standard.
Model：
Certificate
Contact
Details SPEC Con

Moderner LBL-3 Tensile TesterSPEC

Moderner LBL-3 Tensile TesterDetails

Moderner LBL-3 Tensile TesterPacking list

SKU
NB042053
Host structure
Integrated horizontal host frame structure
maximum test force
1000N
Test force Measurement Range
1%~100%Fs
Displacement measurement Accuracy
≤±0.5%
Displacement resolution
0.01mm
Test speed range
0.1mm/min~ 100mm/min, no speed regulation
Speed Accuracy
±1%
Maximum stretch stroke
90mm
Specimen clamping range
200×65mm
Dimensions
720×370×300,,
Host Weight
About 45Kg
Power Supply
1KW220V
stretch space
The host structure is a horizontal single tensile test space
Room temperature
10~45℃
Relative Humidity
20%-80%
Levelness
0.2/1000
Power Supply fluctuation
No more than 10% of the Rated Voltage.
Operating Environment
No vibration around, no corrosive medium, no strong magnetic field interference
LBL-3
Tensile Tester
Integrated horizontal host frame structure, test force up to 1000N, accuracy of full scale +/- 1%, in line with GB/T-18102-2020 standard.

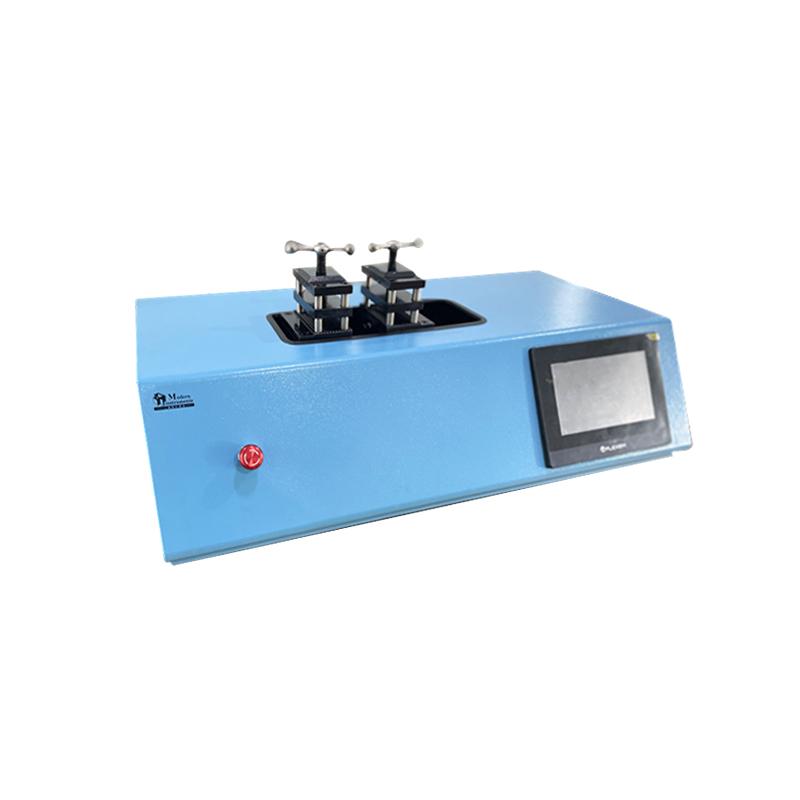

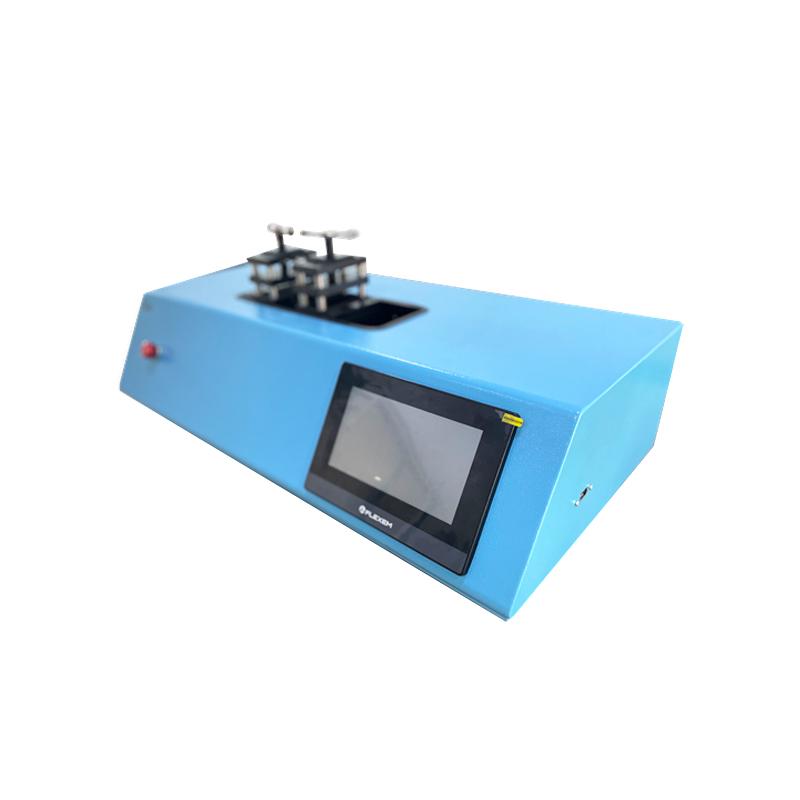

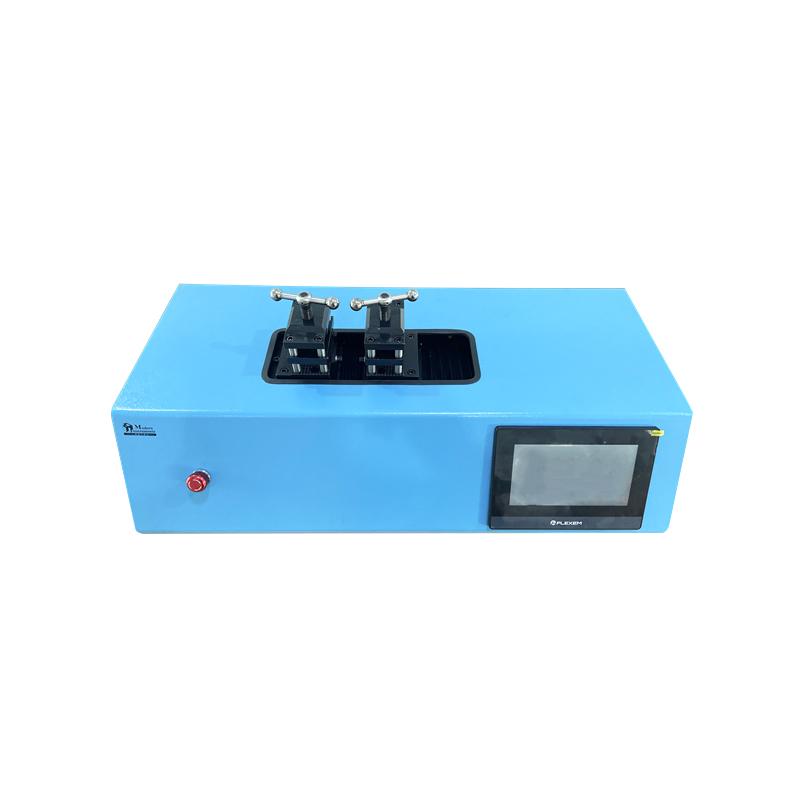

MODERNER LBL-3 Tensile Tester 1000N Picture

Introduction

The horizontal lock Tensile Testing Machine is used for mechanical performance tests such as locking force. Under the action of horizontal tensile load, the force required when two locked test pieces are separated. The ability of the reaction floor lock to resist being pulled apart. It is suitable for various test fields such as quality supervision, teaching and scientific research, aerospace, decorative materials, automobiles, rubber plastics, woven materials, etc. It is the test required by manufacturing enterprises, construction units, product quality supervision and inspection institutes and building material product testing departments The equipment is also suitable for colleges and universities to do demonstration experiments for students.

Related standards

GB/T-18102-2020

Principle

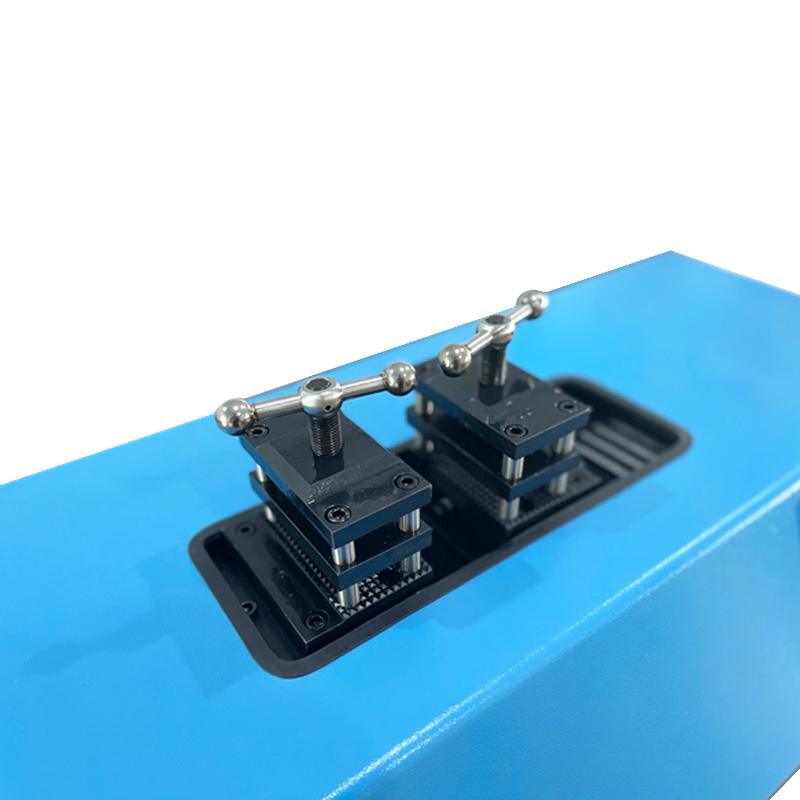

The testing machine consists of three parts: test plate clamping part, power driving part, force measurement and recording processing part.

FAQ
QI want to test the tension of the floor latch. What instrument should I use?
A The LBL-3 horizontal locking Tensile machine is specially designed to simulate the force of the floor lock when it is stretched horizontally, and can accurately measure the maximum force required for the locking place to be pulled apart. It fully complies with the GB/T-18102-2020 standard and is suitable for mass testing of floor production enterprises.
