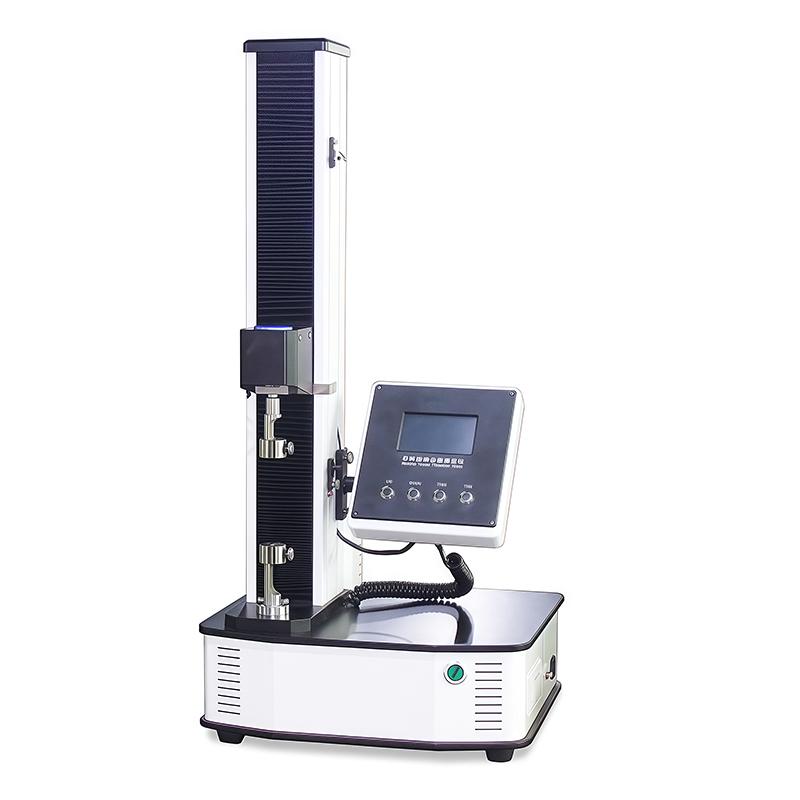

Yunda YD-LJ-W Vertical Multifunctional Tensile Strength Testing Machine 0~200kg

YD-LJ-W(200kg)

Universal tensile Strength Tester (vertical)

Capacity 0~200kg, accuracy level 0.5, force range 0.02/100 -100%, using imported electrical components, with peak holding, sample breaking stop function, support stepless speed regulation.

Applications

This machine is widely used in the testing of tensile strength and elongation of various rubber, plastic film, braided belt, packing belt, wire and cable, textiles, metal wire and other metals, non-metals and composite materials. , industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments of professional testing equipment.

Features

1. Imported electrical components, high-speed data processing, large liquid crystal display, full Chinese operation menu, sample parameters and test parameters can be input in advance before the test, and automatically calculate and output the maximum force value, elongation, and maximum force value after the test is over. Tensile strength, able to save multiple sets of test data and results.

2. Stepless speed regulation (0.5-500mm/min arbitrarily set) The screen displays the test force, peak value, test speed, running status, etc. in real time.

3. The testing machine adopts a single-space test structure, and the sensor is a two-way force value sensor for tension and compression. The tension or compression test is completed below, and the test method can be selected in advance;

4. The machine uses a precision digital motor and a digital speed control system as the drive device. After being decelerated by the deceleration system, it drives the precision screw pair for loading. It has the advantages of stable transmission, low noise, high operating accuracy, wide speed range, and long service life. features.

5. It has the functions of peak value hold, stop when the sample breaks, and returns to the origin after the test is completed. It has various protection functions such as upper and lower mechanical limit and electrical overload.

6. A variety of test methods can be selected according to different test objects, and corresponding test fixtures can be selected to complete tests such as tension, compression, tearing, bending, peeling, and ring stiffness.

Main performance characteristics

1. Imported motor, low noise and precise control

2. Laptop display, Chinese/English menu. During the test, the stretching time, load tension, etc. are displayed in real time; and the stretching curve can be displayed and printed

3. Obtain the measurement results directly: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including the average value, standard deviation and coefficient of variation.

4. Variable sample size and tensile speed: for commonly used standard size samples, the tensile test is directly carried out at the specified speed, and the appropriate tensile speed can also be set to change the test length and width of the sample according to the needs of the situation. .

5. High degree of automation: The design of the instrument uses excellent components at home and abroad, and the single-chip microcomputer performs information sensing, data processing and action control, with automatic reset, data memory, and overload protection.

6. Data communication: The built-in network port can be equipped with computer software, which can provide data communication for the upper computer comprehensive report system.

7. Wide measurement range: The measurement range of the instrument can be changed by configuring different force measuring devices according to the needs of users, and can be widely used in the tensile test determination of various paper and materials.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
