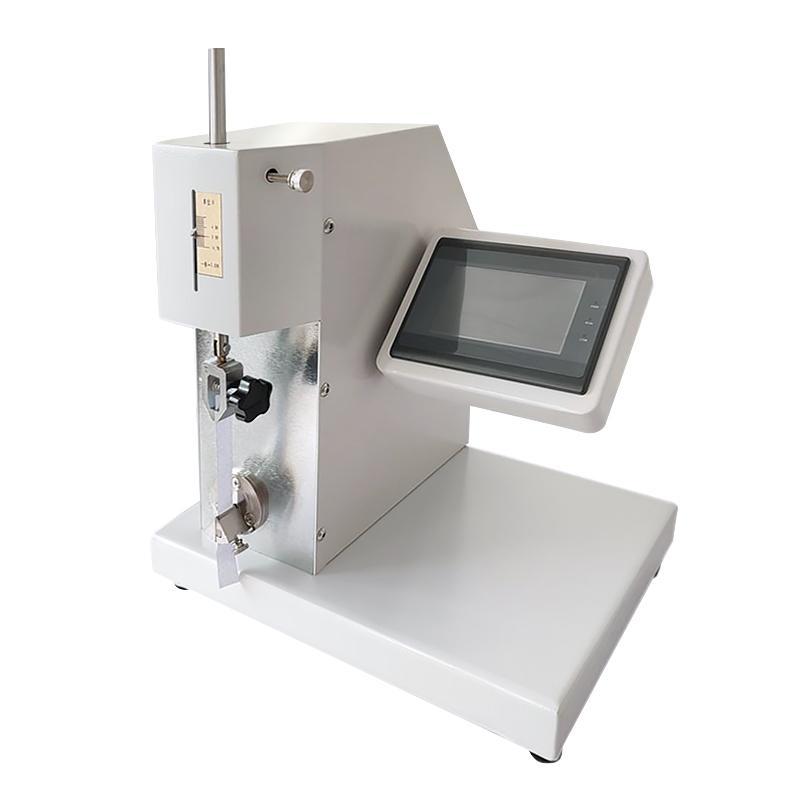

JINGWEN JW107C2 paper MIT folding resistance Tester
SE
JW107C2
-
JINGWEN JW107C MIT Paper Folding Endurance Tester$ 1446.00SE -
CHINA NBC-5632 MIT type folding Tester Paper Folding Endurance Tester$ 1409.00SE -
CHINA NBC-5637 MIT Paper Folding Endurance Tester$ 1330.00SE -
Taichang TC-NZ135A Touch Screen MIT Folding Tester 1mm$ 1439.00SE -
Taichang TC-NZ135A Touch Screen MIT Folding Tester 0.5mm$ 1439.00SE
jingwen JW107C2 MIT folding resistance meterSPEC
jingwen JW107C2 MIT folding resistance meterDetails
jingwen JW107C2 MIT folding resistance meterPacking list
- SKU
- NB043027
- Measurement range
- 1~ 99999 times (the range can be increased as needed)
- folding angle
- 135°±2°
- Tension adjustment range
- 4.9N~14.7N
- Folding Head Stitching Specifications
- 0.25Mm, 0.50mm, 0.75mm, 1.00mm four optional
- Fold mouth fillet radius
- R0.38mm±0.02mm
- The tension change caused by the swirl/spin eccentricity of the folding collet is not greater than
- 0.343N。
- Power
- AC220V±10％ 50Hz
- Operating Environment
- Temperature 0~40 ℃, Relative Humidity does not exceed 85%
- Instrument Gross Weight
- ≤ 30kg
- show
- 5 inch touch screen
Introduction
The MIT folding resistance instrument is a new type of high-precision intelligent Tester that adopts modern mechanical design concepts and microcomputer processing technology for careful and reasonable design according to relevant national standards. Reasonable structure and multi-functional design. It has various parameters included in the standard testing, conversion, adjustment, display, memory, printing and other functions.
Product Features
The instrument uses microcomputer control technology, with a high degree of automation, and can perform sampling, measurement and control and display at the same time.
The measurement is accurate and fast, the operation is simple, and the use is convenient. After the test is completed, the zero will be automatically reset after starting the machine and completing the experiment.
Adopt stepper motor control, precise positioning, automatic measurement,
Modern design concept of opto-mechatronics, compact structure, beautiful appearance, stable performance and reliable quality.
Technical standard
ISO 5626: Paper - Determination of pleat resistance
GB/T 2679.5: Determination of folding resistance of paper and paperboard (MIT folding resistance meter method)
GB/475: Determination of folding resistance of paper and paperboard
QB/T 1049: Folding Tester for Paper and Board
Product application
The folding resistance Tester conforms to the above national standards and is suitable for measuring the folding fatigue strength of paper, cardboard copper foil, aluminum foil and other sheet materials with a thickness of less than 1mm. The instrument adopts photoelectric control technology to automatically return the folding collet after each experiment, which is convenient for the next operation.
