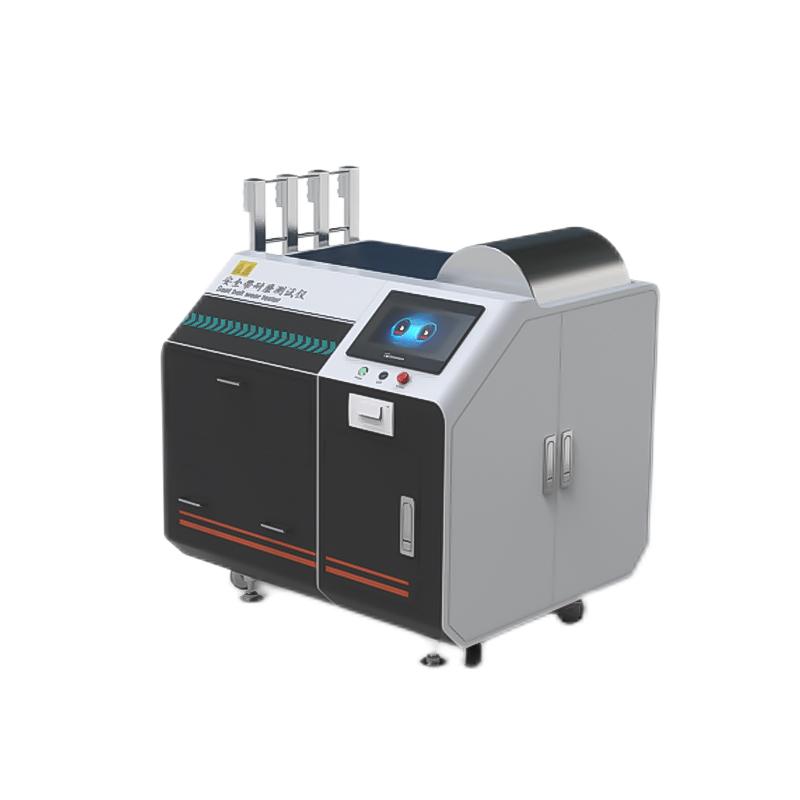

HUITAO HT-1103 Automobile seat belt webbing wear resistance performance testing machine, hexagonal rod method
SEColor 7-inch touch screen, webbing test width 108mm, with a hexagonal rod, in line with ASTM D6770, GB14166-2013 standards, for testing webbing, automotive seat belts.
$8263.00/set
PromotionLoading...
Coupon
Model：
HT-1103
huitao HT-1103 Automobile seat belt webbing wear resistance performance testing machineSPEC
huitao HT-1103 Automobile seat belt webbing wear resistance performance testing machineDetails
huitao HT-1103 Automobile seat belt webbing wear resistance performance testing machinePacking list
- SKU
- NB048282
- Control system
- PLC
- Operating interface
- Color 7-inch touch screen, switch between Chinese and English
- test stroke
- 300±20mm
- Ribbon test width
- 108mm
- Test speed
- 30 times/+/- 2min
- load
- 3 groups each of 2.36 +/- 0.05kg and 1.5 +/- 0.05kg
- hexagonal rod
- 6.35±0.03 mm，radius 0.5±0.1 mm
- Weight
- According to the station selection Weight quantity 900 g +/- 60g, 4500N, 1800 g +/- 60g Miscellaneous Weight customization
- roller
- Φ400mm
- Drive method
- Motor driven
- test fixture
- 3 groups
- simultaneously measurable
- Three sets of samples
- friction angle
- 85±2°
- Dimension
- 1100×750×1000mm
- Weight
- About 160kg
- Power Supply
- AC220V 5A
HT-1103
Automobile seat belt webbing wear resistance performance testing machine
Color 7-inch touch screen, webbing test width 108mm, with a hexagonal rod, in line with ASTM D6770, GB14166-2013 standards, for testing webbing, automotive seat belts.
Introduction
The abrasion resistance testing machine of automobile seat belt webbing is suitable for the test of the wear resistance of various webbing and automobile seat belts, and the test principle makes the webbing rub back and forth on the two corners of the hexagonal rod for a certain number of times, and then observe the wear resistance and judge the product quality.
Application
The structure of the equipment is designed in accordance with ASTM D6770, GB14166-2013 "Seat Belts and Restraint Systems for Adult Occupants of Motor Vehicles" satisfies the abrasion resistance test of seat belts for automobile webbing.
Features
The operation is simpler, automatic testing, automatic shutdown of test piece damage, automatic saving of test data.
