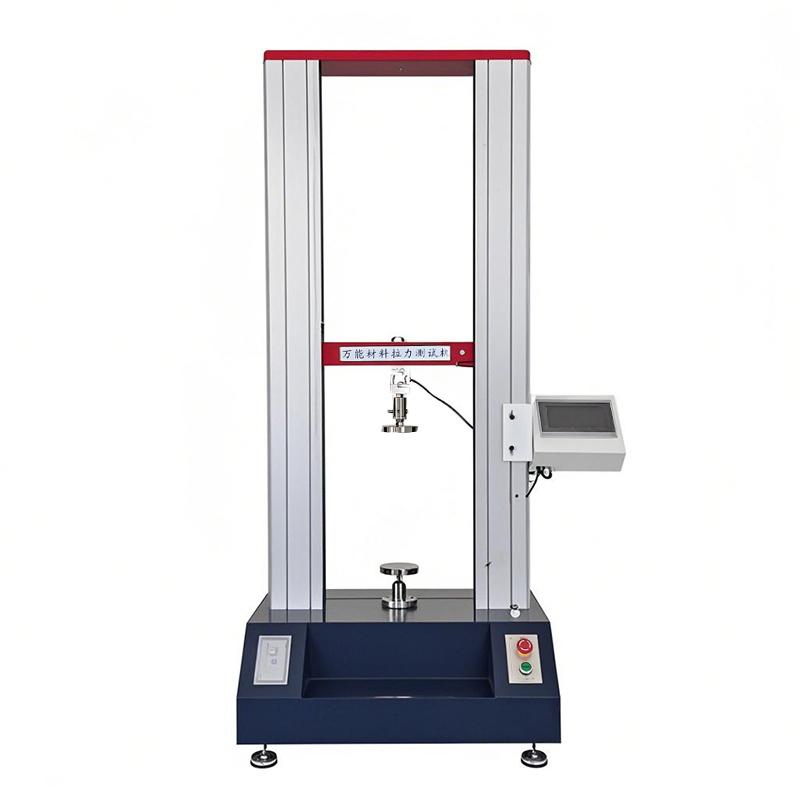

Lugong STX100K Digital Display Double Arm Tensile Tester Double column tensile machine 100KN
SE
STX100K
LUGONG STX100K Tensile TesterSPEC
LUGONG STX100K Tensile TesterDetails
LUGONG STX100K Tensile TesterPacking list
- SKU
- NB049224
- maximum test force
- 100KN
- maximum test force
- 100KN
- Measurement range
- 1% - 100% FS (full scale)
- Measurement range
- 1% - 100% FS (full scale)
- Force Precision
- ±1%
- Force Precision
- ±1%
- Displacement measurement resolution
- 0.01mm
- Displacement measurement resolution
- 0.01mm
- Beam traverse speed
- 0.1-500mm/min
- Beam traverse speed
- 0.1-500mm/min
- effective stretch stroke
- 680Mm (can be customized according to user request)
- effective stretch stroke
- 680Mm (can be customized according to user request)
- effective compression stroke
- 1100Mm (can be customized according to user request)
- effective compression stroke
- 1100Mm (can be customized according to user request)
- effective test width
- 400mm
- effective test width
- 400mm
- Operating Environment
- Room temperature is about 35 ° C, Relative Humidity does not exceed 80%
- Operating interface
- Operating interface is LCD display, menu is Chinese/English
- Operating Environment
- Room temperature is about 35 ° C, Relative Humidity does not exceed 80%
- Dimension
- 700X550x2000mm (customizable size)
- Operating interface
- Operating interface is LCD display, menu is Chinese/English
- Dimension
- 700X550x2400mm (plus work cabinet)
- Dimension
- 700X550x2000mm (customizable size)
- Weight
- About 380Kg
- Power Supply
- 220 +/- 10% VAC, Frequency 50Hz, 1.5kW
- Dimension
- 700X550x2400mm (plus work cabinet)
- Weight
- About 380Kg
- Power Supply
- 220 +/- 10% VAC, Frequency 50Hz, 1.5kW
Introduction
The design of the main machine and auxiliary tools of the digital display double-arm micro-controlled electronic universal testing machine integrates the company's advanced technology, with beautiful appearance, convenient operation, stable and reliable performance. The system controls the rotation of the servo motor through the controller and the speed control system, and rises and falls through the precision screw sub-belt beam after deceleration by the deceleration system to complete the tensile mechanical properties test of the sample, with no pollution, low noise, high efficiency and a wide speed regulation range. The machine is widely used in the material inspection and analysis of metal, non-metal, building materials, aerospace, machinery manufacturing, wire and cable industries, and is a reliable testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
Main functions and features
1. The speed regulation system adopts servo motor and synchronous belt deceleration mechanism, which has stable and reliable performance, and has protection devices such as overcurrent, overVoltage and overload.
2. The transmission part adopts arc synchronous toothed belt, precision ball screw auxiliary transmission, stable transmission, low noise and high transmission efficiency.
3. The touch screen operation mode and real-time display of the LCD monitor overcome the problem that the old-fashioned digital tube display is prone to failure, and it is beautiful, generous, convenient and fast.
