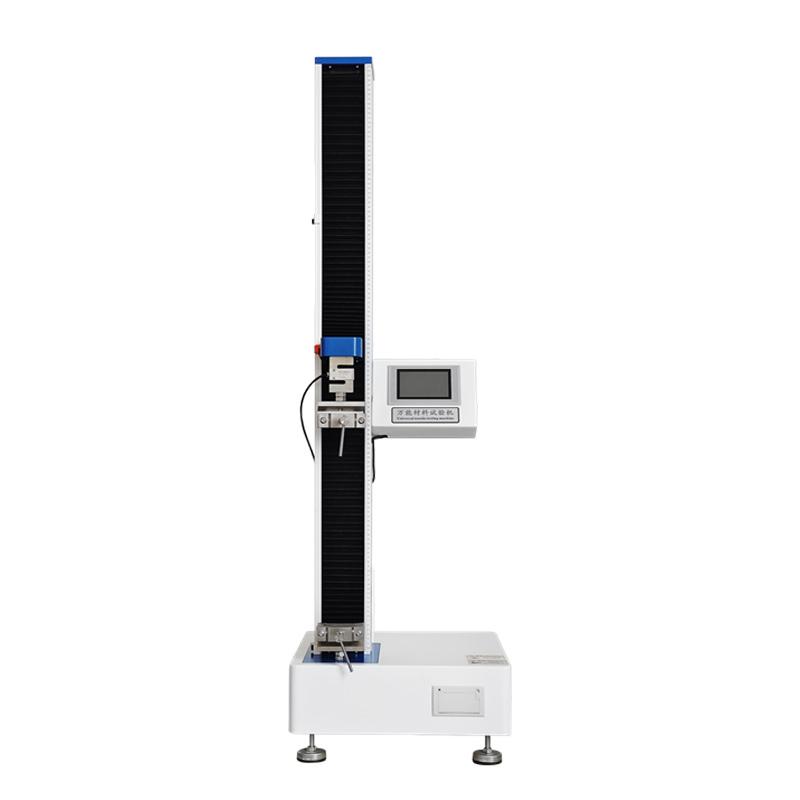

Lugong STX5000H Digital Display Single Arm Tensile Tester Single column Electronic tensile machine 5000N

SE
Maximum test force 5000N, test force level 1, test force Measurement range 2% --100% FS, beam displacement Measurement accuracy resolution higher than 0.01mm, Test speed range 0.1-500mm/min, stepless speed regulation.
$1439.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

LUGONG STX5000H Digital single arm Tensile TesterSPEC

LUGONG STX5000H Digital single arm Tensile TesterDetails

LUGONG STX5000H Digital single arm Tensile TesterPacking list

SKU
NB049232
maximum test force
5000N
Force Precision
Level 1
Measurement range
2%--100%FS
Force value indication Accuracy
Better than indication +/- 1%
Force resolution
1/3000
Measurement Accuracy of beam displacement
Resolution higher than 0.01mm
Test speed range
0.1 - 500mm/min, stepless speed regulation
Safety protection device
Mechanical limit protection and software overload protection
Effective compression stroke (with fixture stroke)
1000Mm (can be customized according to user request)
Operating Environment
Room temperature - 35 ℃, Relative Humidity does not exceed 80%
leak size
470×470×1510mm
Weight
About 110kg
Power supply for the whole machine
Single phase, 220V +/- 10%, 50Hz; 400W
STX5000H
Digital single arm Tensile Tester
Maximum test force 5000N, test force level 1, test force Measurement range 2% --100% FS, beam displacement Measurement accuracy resolution higher than 0.01mm, Test speed range 0.1-500mm/min, stepless speed regulation.

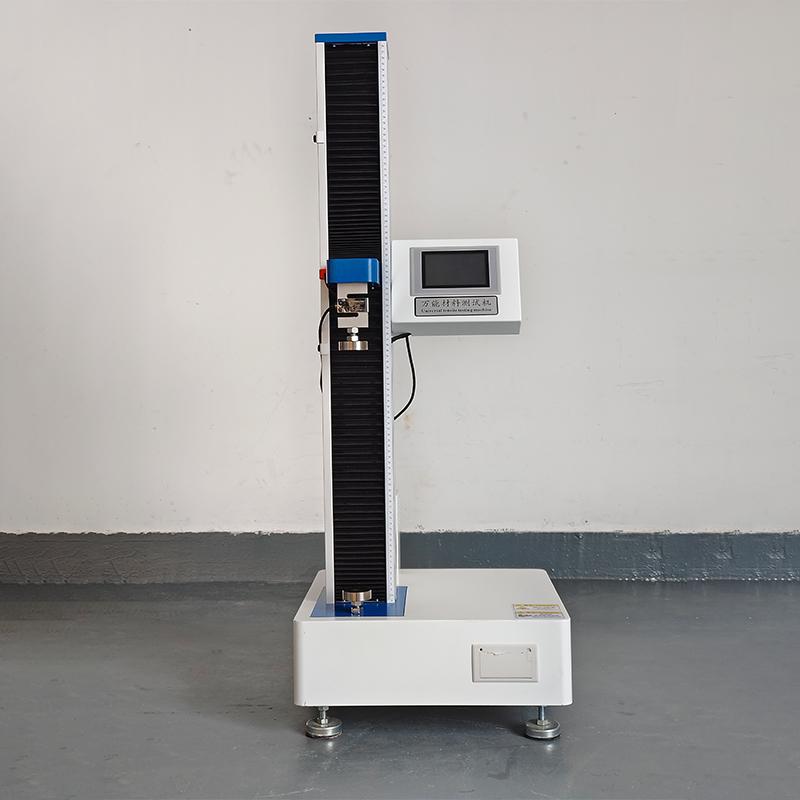

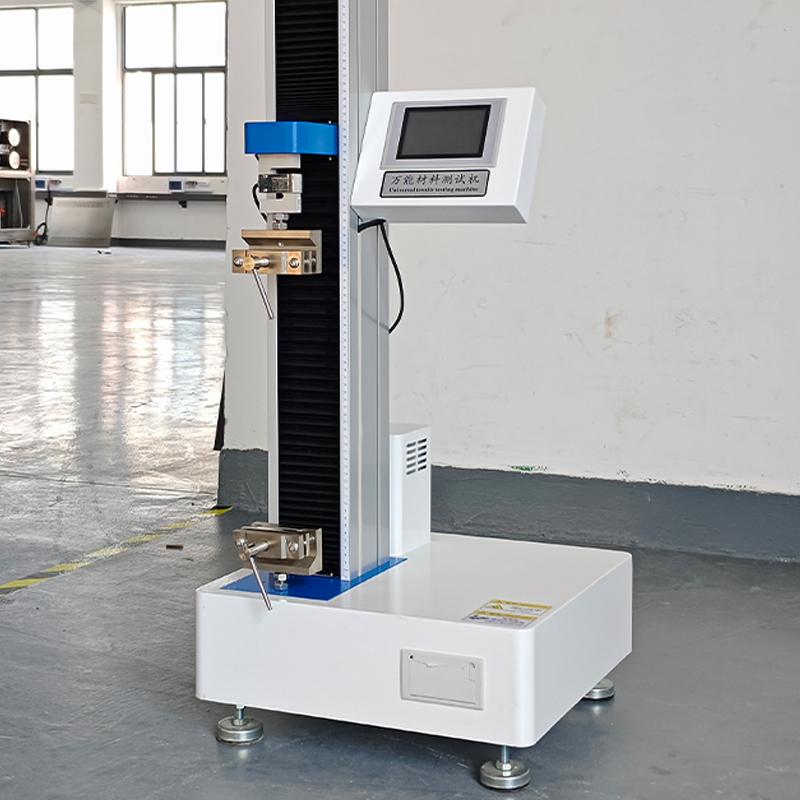

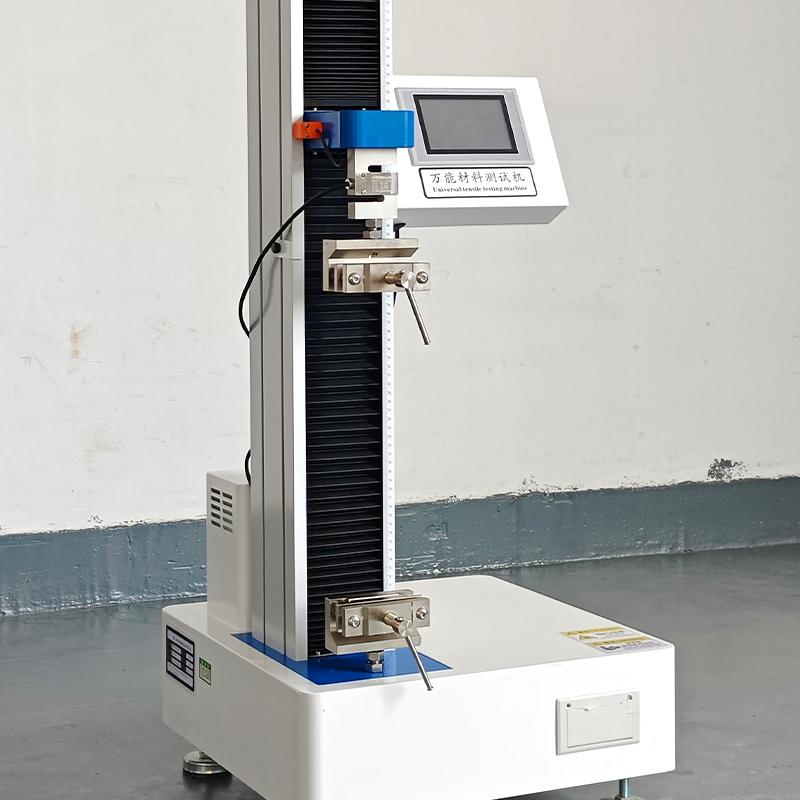

Lugong STX5000H Digital Display Single Arm Tensile Tester Single column Electronic tensile machine 5000N Picture

Introduction

The digital display single-arm micro-controlled electronic universal testing machine is a new generation of microcomputer-controlled electronic universal testing machine specially designed for universities and scientific research institutes. The design of the main engine and auxiliary devices draws on the international advanced technology, with beautiful appearance, convenient operation, stable and reliable performance. The high-precision stepper motor and driver are used to drive the precision ball drive screw and guide rod to load after deceleration, and complete a variety of mechanical property tests such as tensile, compression, bending, and shear of the sample, which has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load, deformation and displacement. It is suitable for tensile, peeling and tearing performance testing of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, self-adhesives, rubber, paper and other products, and is a reliable testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.

host

  • The main machine adopts a high-rigidity single-arm structure with beautiful appearance

  • Using high-precision ball screw, the transmission is efficient and stable

  • The transmission part is driven by arc tooth synchronous belt, and there is no gap in both directions during the transmission process

  • High-precision stepper motor and drive system are used to ensure stable transmission and accurate control

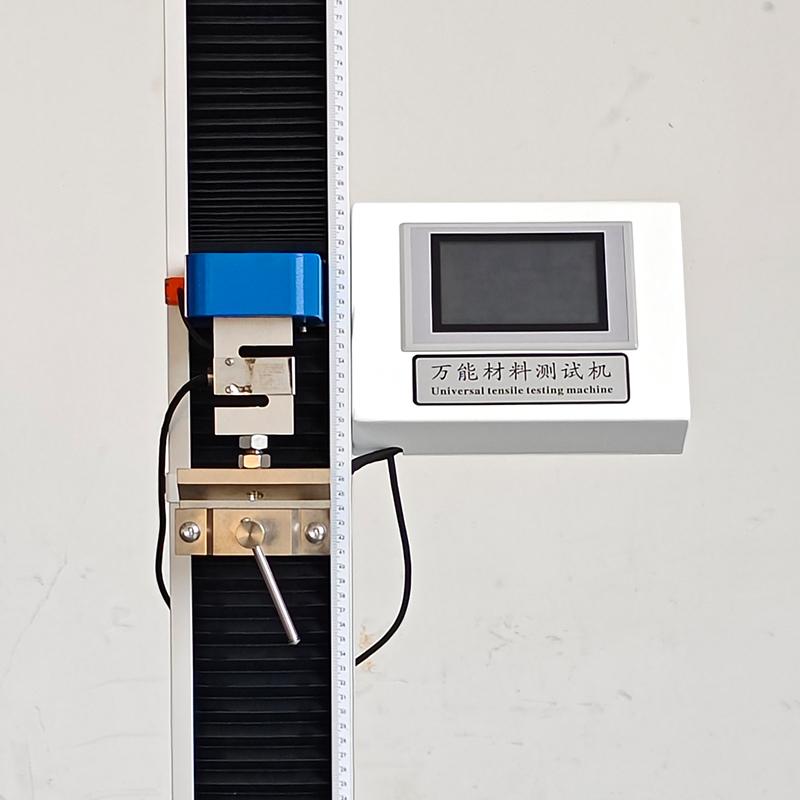

  • The clamp is specially designed, the clamping is firm, the operation is convenient, and there is no jaw slippage

  • The special process ensures the coaxiality of the testing machine, and eliminates the influence of irregular specimens on the sensor

Control system

This includes load measurement, displacement measurement and deformation measurement systems

The large LCD screen displays the control parameters and measurement results in real time

It has functions such as overload protection

FAQ
QHow does the STD5000H adapt to the diverse testing needs of different industries?
A It has strong test scalability: not only can complete conventional tensile compression, but also can perform special tests such as three-point/four-point bending resistance, finished shoe puncture, foam cyclic compression, spring tension and compression. Through custom test units, multi-language switching and GB/ISO/DIN and other mainstream standards compatibility, with 950mm tensile stroke and 1000mm compression stroke (both can be customized), it can easily adapt to multiple scenarios from material research and development to industrial Quality control.
Q This device places special emphasis on coaxiality and clamping reliability. What is the practical significance of this for the test results?
A Yes, the STX5000H effectively guarantees the coaxiality of the testing machine through a special process, which is essential for the accuracy of the test results, because it can significantly reduce the measurement deviation caused by irregular samples to Sensors. At the same time, its specially designed fixture is firmly and reliably clamped, and it is easy to operate. It effectively avoids the problem of the sample slipping at the jaws during the test process, ensuring that the data truly reflects the material performance.
QWhat are the characteristics of the STX5000H single-arm Tensile machine in the structural design and transmission system, and how to ensure the accuracy and stability of the test?
A The STX5000H adopts a high-rigidity single-arm main engine structure, which is beautiful and stable. Its core is the two-way no-clearance transmission system combined with high-accuracy ball screw and arc tooth timing belt. With high-accuracy stepper motor drive, it ensures efficient and smooth power transfer and accurate control. This lays a solid foundation for high-accuracy load, deformation and displacement measurement control.
