Lugong STX1000 Digital Display Single Arm Tensile Tester Single column tensile machine 1000N

Maximum test force 1000N, test force level 1, test force measurement range 2% --100% FS, test force indication accuracy is better than indication +/- 1%, test force resolution 1/3000.
$1174.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

LUGONG STX1000 Digital single arm Tensile TesterSPEC

LUGONG STX1000 Digital single arm Tensile TesterDetails

LUGONG STX1000 Digital single arm Tensile TesterPacking list

SKU
NB049672
maximum test force
1000N
Force value Accuracy
Level 1
Force Measurement Range
2%--100%FS
Force value indication Accuracy
Better than indication +/- 1%
Force resolution
1/3000
Beam displacement measurement Accuracy
Resolution higher than 0.01mm
Test speed range
0.1 - 500mm/min, stepless speed regulation
Safety protection device
Mechanical limit protection and software overload protection
test space
650Mm (can be customized according to user request)
Operating Environment
Room temperature - 35 ℃, Relative Humidity does not exceed 80%
leak size
470×470×1210mm
Weight
Approx. 90 kg
Power supply for the whole machine
Single phase, 220V +/- 10%, 50Hz; 400W
STX1000
Digital single arm Tensile Tester
Maximum test force 1000N, test force level 1, test force measurement range 2% --100% FS, test force indication accuracy is better than indication +/- 1%, test force resolution 1/3000.

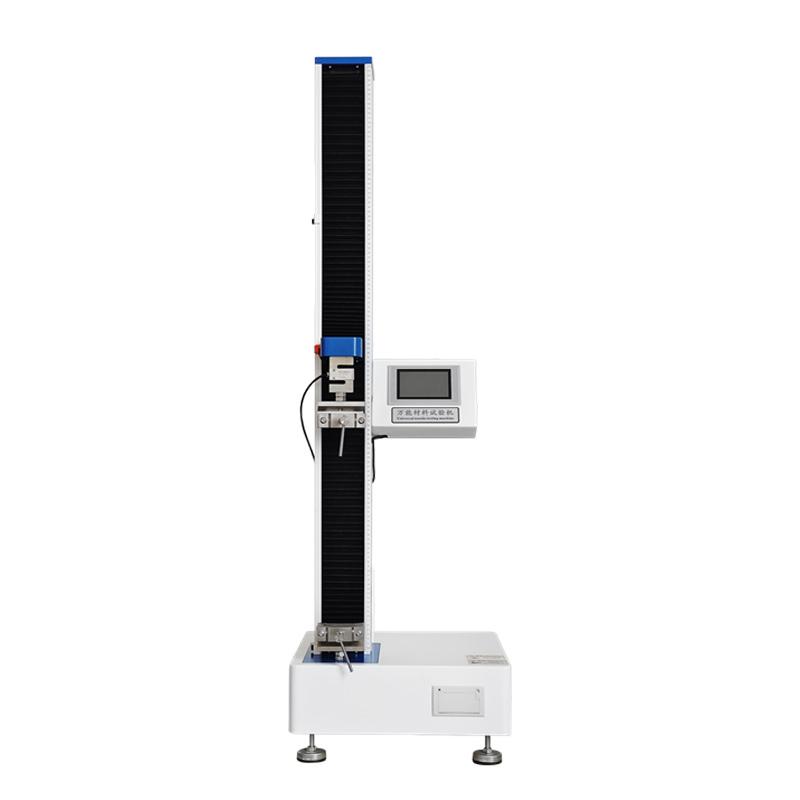

Lugong STX1000 Digital Display Single Arm Tensile Tester Single column tensile machine 1000N Picture

Product Introduction

The digital display single-arm micro-controlled electronic universal testing machine is a new generation of microcomputer-controlled electronic universal testing machine specially designed for universities and scientific research institutes. The design of the main engine and auxiliary devices draws on the international advanced technology, with beautiful appearance, convenient operation, stable and reliable performance. The high-precision stepper motor and driver are used to drive the precision ball drive screw and guide rod to load after deceleration, and complete a variety of mechanical property tests such as tensile, compression, bending, and shear of the sample, which has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load, deformation and displacement. It is suitable for tensile, peeling and tearing performance testing of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, self-adhesives, rubber, paper and other products, and is a reliable testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.

host

  • The main machine adopts a high-rigidity single-arm structure, which has a beautiful appearance;

  • Using high-precision ball screw, the transmission is efficient and stable

  • The transmission part is driven by arc tooth synchronous belt, and there is no gap in both directions during the transmission process

  • High-precision stepper motor and drive system are used to ensure stable transmission and accurate control

  • The clamp is specially designed, the clamping is firm, the operation is convenient, and there is no jaw slippage

  • The special process ensures the coaxiality of the testing machine, and eliminates the influence of irregular specimens on the sensor

Control system

This includes load measurement, displacement measurement and deformation measurement systems

The large LCD screen displays the control parameters and measurement results in real time

It has functions such as overload protection

FAQ
QOur laboratory mainly tests the tensile performance of Plastic films and Adhesive Tapes. Is there a suitable Universal Testing Machine recommended?
A Recommend Lugong STX1000 Digital Display Single Arm Universal Testing Machine. It has a maximum test force of 1000N and high accuracy. It is specially designed for soft materials such as Plastic film and adhesive tape. The fixture is firmly held and can accurately test tensile, disbonding and other performance. It is suitable for scientific research and Quality control.
QWant to buy a UTM for Universities & colleges teaching, to be able to measure a variety of performance and safe and durable, what is the recommendation?
A Lugong STX1000 is suitable. It is specially designed for colleges and universities, with overload protection and mechanical limit, safe and durable; supports a variety of tests such as stretching and shearing, with a wide speed range (0.1-500 mm/min), which can meet the needs of teaching demonstrations and students' experiments, and is cost-effective.
QI want to test the tensile performance of Plastic films.
A This instrument is specially designed for tensile performance testing of Plastic films, Soft Encasement materials and other products. It uses high-precision ball screws and stepper motors to precisely control the loading speed and ensure accurate and reliable test results.
QWhat specific test items can this device perform?
A The instrument supports tensile, compression, bending, shear, disbonding tear and other mechanical properties testing.
QWhat are the requirements for the test speed, space and working environment of the STX1000 digital display single arm Tensile machine?
A Test speed range is 0.1 - 500mm/min, support stepless speed regulation; test space is 650mm (can be customized according to user request); working environment requires room temperature - 35 ℃, relative humidity does not exceed 80%.
QWhat are the parts of the control system of the digital single arm Tensile machine? What safety measures are there?
A The control system includes load measurement, displacement measurement and deformation measurement system, and a large-screen LCD screen displays control parameters and measurement results in real time. In terms of safety protection measures, the testing machine is equipped with mechanical limit protection and software overload protection.
QWhat are the characteristics of the host of STX1000 digital single arm Tensile machine in terms of structure and transmission?
A The main engine adopts a high-steel single-arm structure with beautiful appearance; equipped with a high-accuracy ball screw, the transmission is efficient and stable; the transmission part is driven by a circular arc tooth synchronous belt, and there is no gap in both directions; the high-accuracy stepper motor and drive system are used to ensure smooth transmission and accurate control; the fixture is specially designed to be firmly clamped, easy to operate and no jaw slip phenomenon; the coaxiality of the testing machine is guaranteed through a special process, which can well eliminate the influence of irregular samples on Sensors.
