CHENCHI CNY-6A Six Station Lasting Adhesive Tester

SE
Six-station simultaneous test, standard pressure roller 2000g +/- 50g, using single-chip microcomputer to control timing, with LCD delay closing function, Timer Range 0-99h59min59s.
$863.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

labchen CNY-6A Lasting Adhesive TesterSPEC

labchen CNY-6A Lasting Adhesive TesterDetails

labchen CNY-6A Lasting Adhesive TesterPacking list

SKU
NB042657
Roller load
2000±50g
Weight
1000 +/- 1g (including tripod Weight)
Test board
125(L)×50(B)×1.5(D)mm
Timer
0-99h59min59s
station number
6 stations
Dimensions
605*210(*550mm
control mode
Microcomputer control, single station can be switched on and off separately
display mode
liquid crystal display
net Weight
18kg
Power Supply
AC220V、50Hz
CNY-6A
Lasting Adhesive Tester
Six-station simultaneous test, standard pressure roller 2000g +/- 50g, using single-chip microcomputer to control timing, with LCD delay closing function, Timer Range 0-99h59min59s.

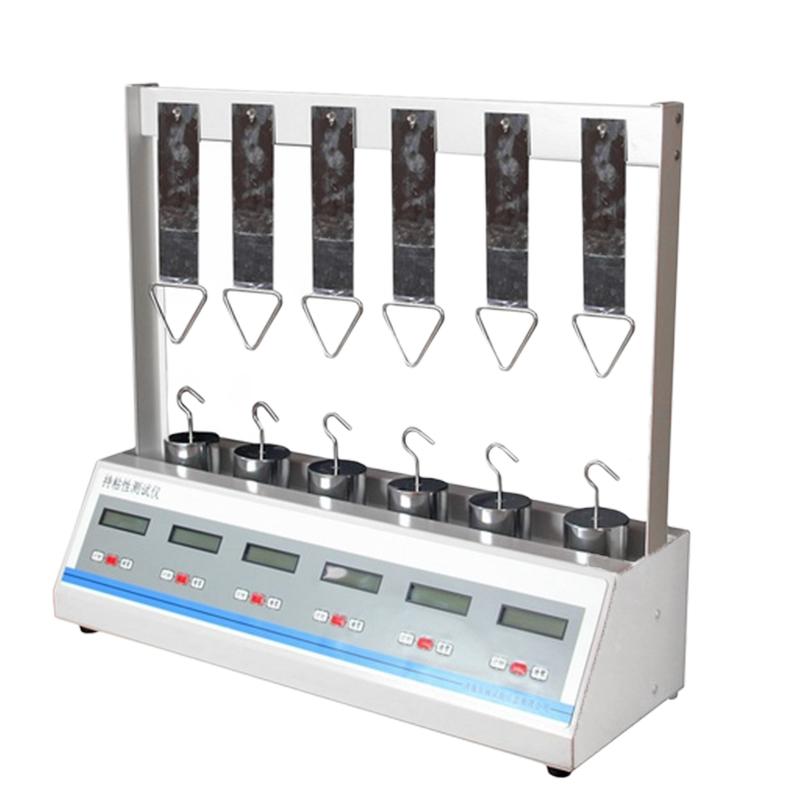

CHENCHI CNY-6A Six Station Lasting Adhesive Tester Picture

Introduction

This product is manufactured in accordance with the provisions of method A in the national standard GB/T4851-2014 "Test Method for Holding Stickiness of Pressure Sensitive Tape". Adhesive labels, protective films, etc.

Principle

Hang the test plate with the sample attached vertically on the test frame, hang the weight of the specified weight at the lower end, use the displacement of the sample after a certain period of time, or the time when the sample is completely detached to characterize the resistance of the adhesive tape to pull the ability to shed.

Features

  • Using single-chip microcomputer to control the timing , the timing is more accurate and the error is smaller;

  • Ultra-long time timing, up to 99h59min59s;

  • Excellent proximity switch, wear-resistant and anti-smashing, high sensitivity and longer service life;

  • The test board and test weights are designed in strict accordance with the standard. The test board is laser cut, with neat and smooth edges, no burr and no curling, which ensures the accuracy of the test data;

  • The system is controlled by a microcomputer, with PVC operation panel, membrane buttons and LCD liquid crystal display, which is convenient for users to quickly perform test operations and data viewing;

  • Six test stations can carry out multiple test items at the same time;

  • Functions such as automatic timing and locking further ensure the high accuracy of test results;

  • The function of delayed shutdown of the LCD is newly added to prevent data loss caused by misoperation or sudden power failure of the external power supply.

Product Details

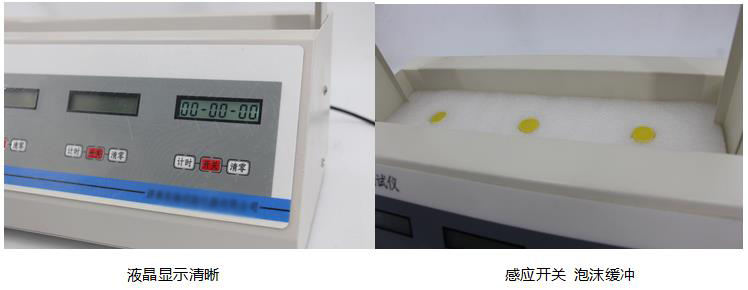

Details of Chenchi CNY-6A Viscosity Tester Figure 1

FAQ
QWhich adhesive products are suitable for testing with Lasting Adhesive Testers?
A CHENCHI CNY-6A Lasting Adhesive Tester is suitable for tack testing of various adhesive products such as pressure sensitive tape, medical patch, sticker label, protective film, etc.
QWhat are the outstanding technical features of this Lasting Adhesive Tester?
A The instrument has six test stations that can simultaneously perform multiple sets of tests. It uses a single-chip microcomputer for accurate timing (up to 99h59min59s), is equipped with a wear-resistant and anti-smashing proximity switch, and the test board uses a laser cutting process to ensure smooth edges. It is controlled by a microcomputer and matched with an LCD screen. It has automatic timing, data locking, and power-off data protection functions.
